Sale price A$1,078.64   Inc. GST
Out Of Stock

We will notify you when this product becomes available.

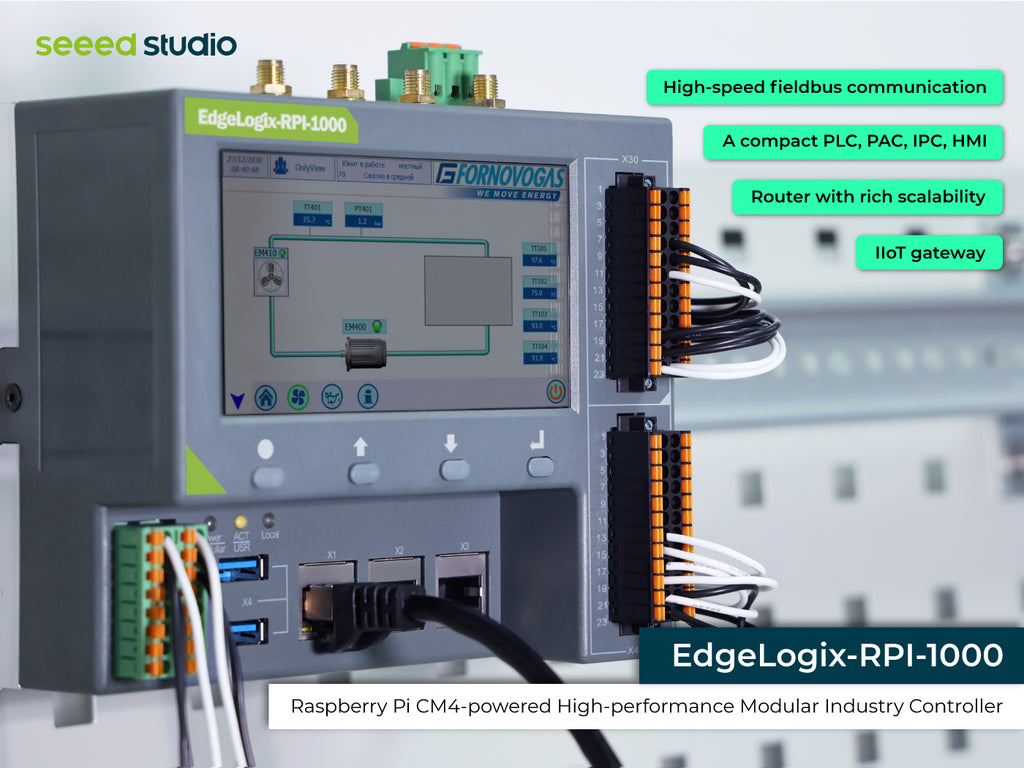

EdgeLogix-RPI-1000-CM4104032 Raspberry Pi-based industrial controller offers you the greatest performance when it comes to the novel automation essentials like all-in-one application scenarios. With intensive IO ports mounted, modular design, extensive industrial bus protocols(high-speed local bus) supported, and wireless capabilities equipped along with cloud services support, it has extraordinarily increased the ability to manage complex systems and sophisticated machines.


  • High-Performance All-in-one with High Performance:
    • A high-performance PLC/PAC, IPC, lightweight HMI, IIoT gateway, OPC UA Server, and Industry PC all in one device.

  • Powerful Processors and Flexible OS:
    • Powered by Raspberry Pi Compute Module 4, up to 4GB RAM and 32GB eMMC, support Debian, Linux, and Ubuntu OS.

  • Rich IO Resources and Robust Scalability:
    • Up to 24 optoisolated DI, DO along with RS485, RS232, CAN-FD, and 3 Gigabit Ethernet ports. High-speed local BUS extension, supporting additional DIO, ADC, and Relay expansion modules.*

  • Multiple Wireless Capabilities and IT Connectivity:
    • Build-in 2.4G/5G Wifi, BLE, mini-PCIe slot for 4G LTE and LoRaWAN modules.

    • Built-in IT connectivity: DHCP/DNS, OPC UA, and Web service

  • Industrial Software and Cloud Services Support:
    • Support IEC 61131-3 with CODESYS, Node-RED, and MQTT.

    • Support AWS, and Azure cloud services.*


EdgeLogix-RPI-1000 industrial controller series offers you the greatest performance and scalability when it comes to novel industrial essentials and the next generation of industry controls. With multiple delicate modules mounted on the board, they present as multifunctional devices that provide you the all-in-one automation services. More than a PLC, or PAC, it even combines the functions of the IIoT Gateway, Lightweight HMI, OPC UA Server, and Industry PC.


  • Expansion modules, AWS, and Azure cloud services will be available in early 2023.

Powerful Processors and Flexible OS:

EdgeLogix-RPi-1000-CM4104032 leverages the processing power of the AI-enabled Raspberry Pi Compute Module 4(CM4), running up to 1.5GHz, equipped with 4 GB RAM and 32 GB eMMC, supporting Debian, Linux, and Ubuntu Operate Systems.

Rich IO Resources and Robust Scalability

This high-scalability equipment has been engineered with 24 optoisolated DI, DO along with RS485, RS232, CAN-FD, and high-speed local BUS extension, which increases its ability to process more complex systems. By designing in modularization, it also supports additional DIO, ADC, and Relay expansion modules.

Multiple Wireless Capabilities and IT Connectivity

The Logix employs high integration of communication, including three Gigabit Ethernet network interfaces, along with multiple wireless capabilities and IT connectivity. It is greatly qualified for IIoT(Industrial Internet of Things), where you can utilize it to build IoT Gateways.

Communication Capabilities

IT Connectivity

  • Three Gigabit Ethernet RJ45 Port

  • Build-in WiFi 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac

  • Mini PCIe Slot support 4G LTE Mod

  • ModMini PCIe Slot support 4G LTE Module/LoRaWAN Gateway Module


  • OPC UA

  • Web service

Industrial Software and Cloud Services Support

With the great Raspberry Pi industrial software ecosystem, you will find that EdgeLogix has plentiful software, autonomous platforms, and cloud services supported. With massive documentation and open communities, troubleshooting can be precise and expeditious.

Industrial Software

Cloud Services

  • IEC 61131-3 with CODESYS

  • Node-RED

  • MQTT

  • AWS

  • Azure


  • Software-defined PLC

  • IoT Gateway


  • Power System

  • Industrial Controller

  • Automation and Control Systems





CPU Core

4-core Raspberry Pi CM4





Onboard Screen

4.3 inches

480 x 800 pixels



2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac equipped


Bluetooth 5.0, BLE equipped


4G supported


Mini PCIe LoRaWAN module supported



1000M RJ45 *3


HDMI 2.0

up to [email protected]


USB2.0 A*2

USB2.0 Type C*1

RS Serial

RS485 *5 (Optoisolated)

RS232 *2 (Optoisolated)

RS232 *1


CAN BUS with CAN-FD *2 (Optoisolated)


12 (Optoisolated)


12 (Optoisolated)

Extra features



Watch Dog Timer

Stand alone

Encryption Chip


Operation temperature

-20 to +60 °C



Part List




How can I get started with EdgeLogix?

You can install the original Debian OS and directly program firmware to support underlying hardware interfaces and drivers. Thanks to the great Raspberry Pi Ecosystem, you can also utilize third-party software like Codesys and Ignition Edge, or directly use MQTT, as well as cloud servers like AWS and Azure.
