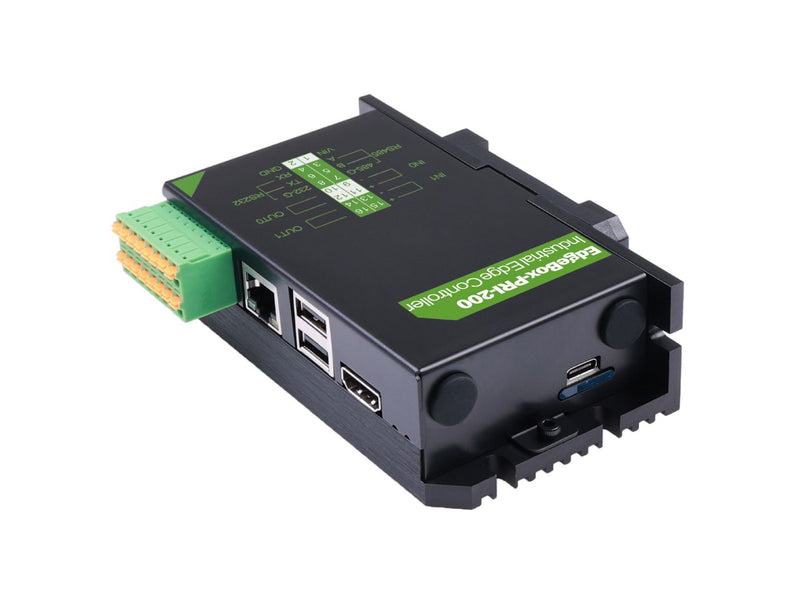

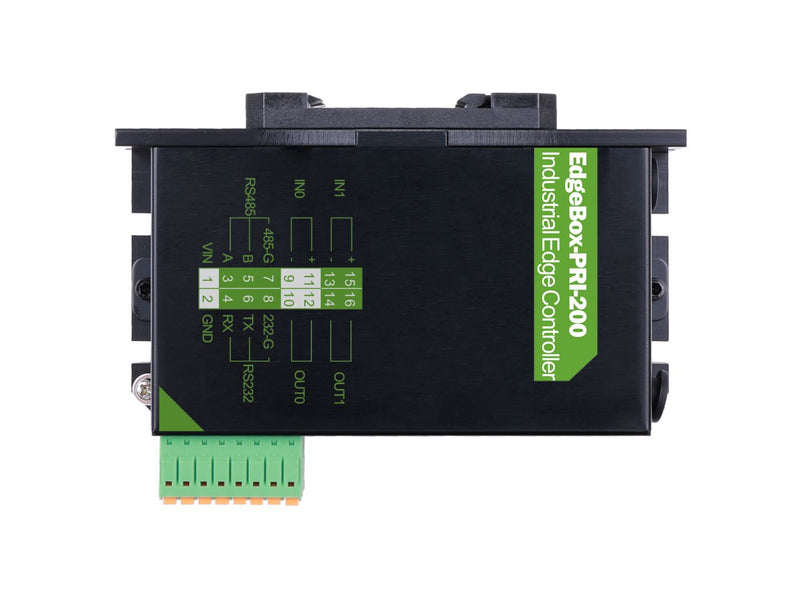

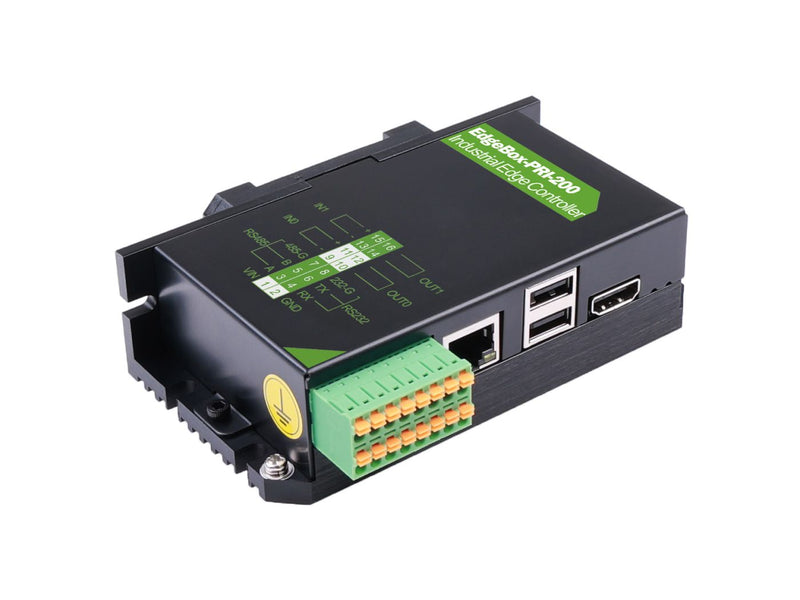

EdgeBox-RPi-200-CM4102008 is an all-in-one Raspberry Pi-based industrial edge computing controller, combining multiple industrial purposes. Designed as high-scalability and rugged industrial hardware, mounted with rich IO resources and supported by the great Raspberry Pi industrial software ecosystem, it is an ideal choice for smart automation and Industrial Internet of Things(IIoT) solutions.
Feature
All-in-one Industry Controller: More than just a PLC, PAC, more can it implement functions of the IIoT Gateway, Industry Router, OPC UA Server and Industry PC.
Powerful and Flexible Processors: Powered by Raspberry Pi Compute Module 4 (CM4), equipped up to 2 GB RAM and 8 GB eMMC, performing real-time operation and multi-process.
Rich IO resources and Industrial Interfaces Mounted: Support a wide range of industrial bus protocols and standards
Multiple Communication Capabilities: Carry full-featured wireless interconnectivity and an RJ45 Gigabit Ethernet, supported by multiple cloud services
Rugged Industrial-grade Hardware Design: Integrated thermal management with full Aluminum heatsink enclosure, supporting 35mm DIN and wall mount
Great Raspberry Pi Industrial Software Ecosystem: Support a variety of industrial software and platforms, including Codesys, Node Red, MQTT, OPC UA, Ignition and etc.
Description
EdgeBox-RPi-200-CM4102008 controllers represent the conceivable alternatives for increasing edge automation and industrial interconnecting control. Being small and compact, they can perform real-time operation and multi-process controlling for multiple industrial purposes, not only the PLC & PAC but also the IIoT Gateway, Industry Router, OPC UA Server and Industry PC.
The Edge Box leverages the processing power of the AI-enabled Raspberry Pi Compute Module 4(CM4), running up to 1.5GHz, equipped with 2 GB RAM and 8 GB eMMC, compiling in Linux, with Debian Operate System.
This high-scalability equipment has been engineered with multiple optoisolated industrial interfaces, which adhere to various industrial bus protocols and standards to achieve data transmission in a variety of situations. It even offers extended SSD storage and enhanced display output, for more data acquisition and improved visual presentation.
IO resources |
Protocols and standards |
|
|
The EdgeBox employs high integration of communication, where it integrates with wireless capabilities, supported by multiple cloud services. It is greatly qualified for IIoT(Industrial Internet of Things), where you can utilize it to build IoT Gateways or a 4G/LTE Router.
Communication Capabilities |
Cloud Services Support |
|
|
With the great Raspberry Pi industrial software ecosystem, you will find that EdgeBox has plentiful software and autonomous platforms supported. You can use the original Debian OS and directly configure underlying hardware interfaces and drivers, or enable the control with third-party industrial platforms. With massive documentation and open communities, troubleshooting can be precise and expeditious.
Codesys
Node Red
MQTT
OPC UA
Ignition
The overall structure of Edge Box is rugged and maintenance-reducing, as it integrates thermal management with full Aluminum heatsink enclosure. It is ultra-lightweight and supports 35mm DIN and wall mount, all of which make it suitable for limited space and extreme conditions including in-vehicle applications.
Application
4G/LoRaWAN IoT Gateway
Edge Computing Controller
Software-defined PLC(Programmable Logic controller)
Industrial Controller
Automation and Control Systems
Specification
CPU |
Broadcom BCM2711, Quad-core Cortex-A72 64-bit SoC @ 1.5GHz |
Memory |
2G RAM |
Storage |
8GB eMMC M.2 slot for SSD |
Wireless |
2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac Bluetooth 5.0, BLE |
Video Interface |
HDMI 2.0 (up to [email protected]) |
Interfaces |
|
Dimensions |
124mm x 76mm x 35mm |
Operating Temperature |
-20°C to +60°C |
Storage Temperature |
-20°C to +75°C |
EMI |
IEC 61000-6-2 |
ESD Protection |
4 kV/8 kV with IEC 61000-6-2 IEC61000-4-4 |
Certifications |
CE, FCC |
Additional Features |
|
Power Supply |
DC 12V - 36V |
FAQ
How can I get started with EdgeBox?
You can install the original Debian OS and directly program firmware to support underlying hardware interfaces and drivers. Thanks to the great Raspberry Pi Ecosystem, you can also utilize third-party software like Codesys and Ignition Edge as well as cloud servers like AWS and Azure.
ECCN/HTS
| HSCODE | 8471419000 |
| USHSCODE | 8471490000 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
