DS2413 1-Wire Two GPIO Controller Breakout

Price:
Sale price A$13.73   Inc. GST
SKU:
ADA1551
1 unit Ships in 24 hours
21 units Ships in 7 to 10 days

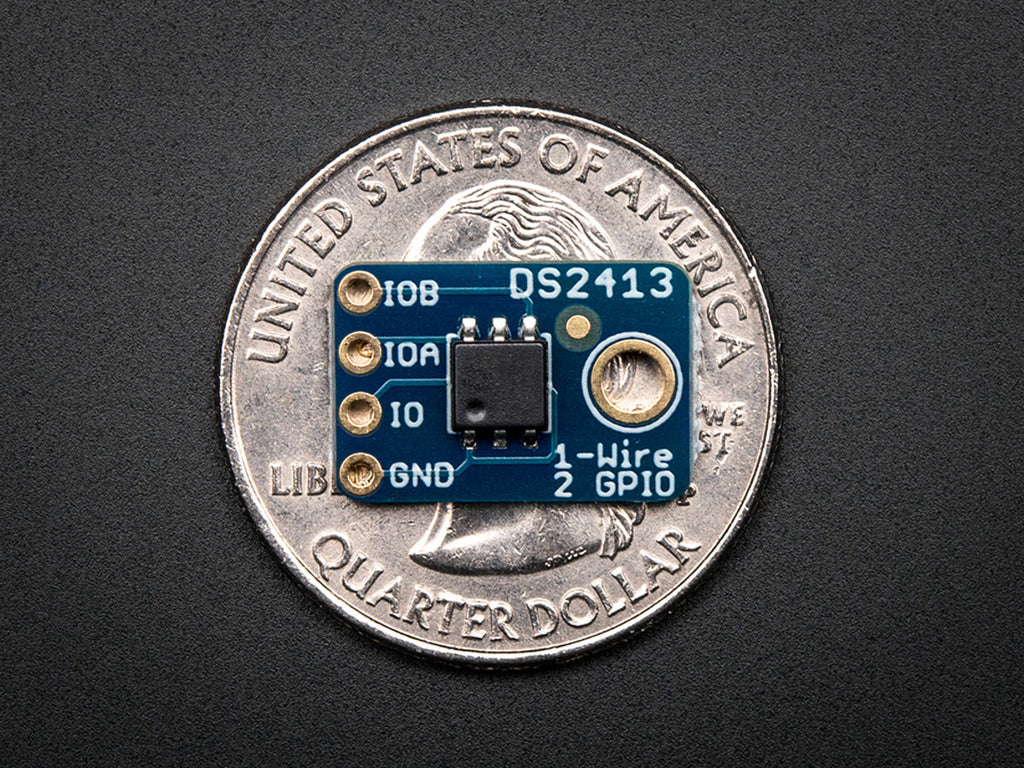

You're too cool for I2C, and SPI has so many wires, 8-bit parallel... how can that be fashionable!? You are a 1-Wire kinda gal, and you want more 1-Wire breakouts in your life to complement all of your great engineering. Well rock on, because here you go, it's a 1-Wire controller with two open-drain GPIO.

You can put as many of the DS2413's as you want on a single I/O line, each one is uniquely addressable and shares the single I/O pin happily. The two controllable I/O lines (PIOA and PIOB) can be used as inputs or outputs. They are open-drain, so if you want to power an LED or something, you'll need a remote power supply (see Maxim's product page for more details)

We have a basic Arduino sketch that uses the OneWire library to communicate with this chip. Don't forget to add the 4.7Kohm resistor from I/O to your 1-Wire controller power supply (3.3V - 5V) on the Arduino side of the wires.

DS2413 1-Wire Two GPIO Controller Breakout (4:45)



Technical Details

  • Dimensions: 15.78mm / 0.62" x 9.96mm / 0.39" x 2.94mm / 0.11"

Schematics, EagleCAD PCB files, datasheets and more in the tutorial!

    RoHS 2 2011 65 EU Compliant
    RoHS 2 2015 863 EU Compliant
