These 6 Volt, 9 Watt panels come to us from Voltaic Systems, makers of fine solar-powered bags and packs. They are waterproof, scratch resistant, and UV resistant.
Using a high efficiency monocrystalline cell and outputting 6V at ~1.5A via 3.5mm x 1.1mm DC jack connector, they are a nice upgrade to the 2W or 3W panels we have been carrying. The substrate is an aluminum / plastic composite, specifically designed to be strong and lightweight. These panels can easily stand up to typical outdoor use including being dropped and leaned on. They're very high quality and suggested for projects that will be exposed to the outdoors. These come with 4 plastic mounting screws which makes it easy to attach the panel, even to fabric!
We have a range of solar panels to choose from: Medium 6V 2W, Large 6V 3.4W, Huge 6V 5.6W, and this one we're calling Colossal 6V 9W! To connect, we suggest a 3.5mm OD/1.1mm ID DC jack or you can use this handy adapter cable which will turn it into a standard 5.5mm/2.1mm DC plug.
Please note - these panels may have dents or light scratches in the epoxy from shipping/storage, it does not affect the functionality of the panel. We cannot guarantee they will be perfectly smooth.
If you want to use this to charge a battery or run your project, check out our optimized Solar Lithium Ion/Polymer charger!
For some nifty ideas on what to do with your solar panels, check out Voltaic's DIY page.
Technical Details
Dimensions:
- 254mm x 223.5mm / 10" x 8.8"
- Thickness (without screws): 5mm / 0.2"
- Thickness (with screws): 10mm / 0.4"
- Wire Length: 282mm / 11.1"
- Weight: 309g
- Technical drawing
Specifications:
- Monocrystalline cells - 19% efficient
- Open Circuit Voltage: 7.0V
- Peak Voltage: 6.0V
- Peak Current: 1500mA
- Peak Power: 9.0 Watt
Construction:
- Urethane coating
- 3mm Aluminum/Plastic composite substrate
Mounting and Cables

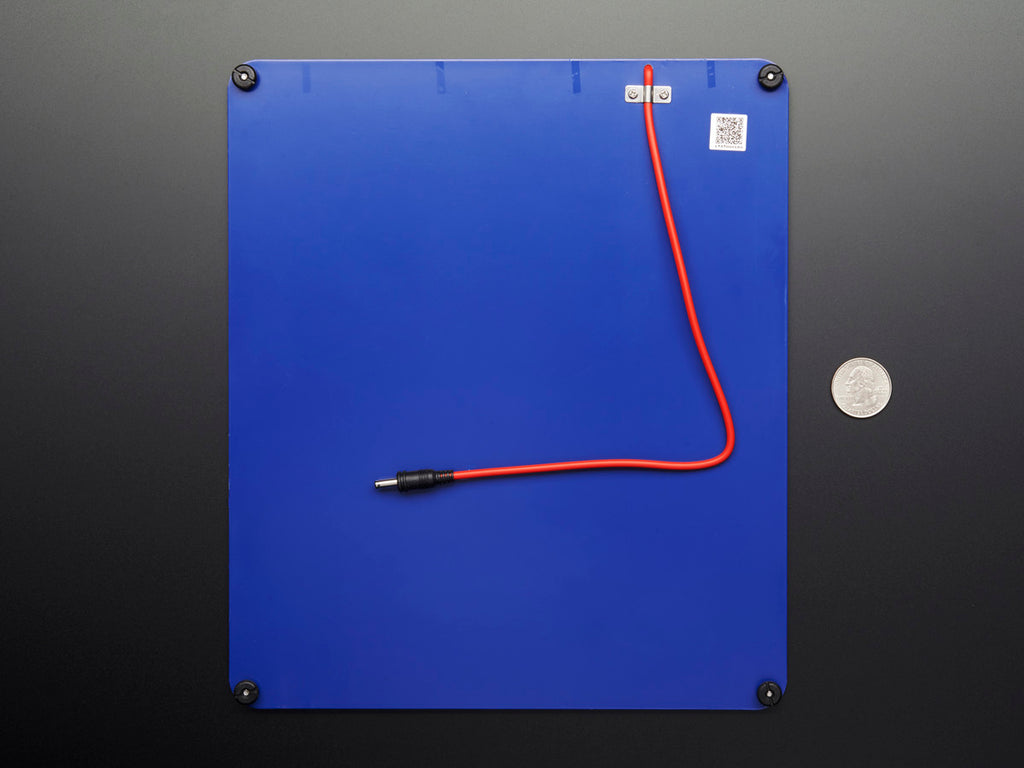

- Four screws on back corners of panel allow multiple mounting options
- Output cable is 8.5 inches, 22cm long and has 3.5x1.1mm plug
For product support, replacement parts and warranty for all Voltaic products, click here!
