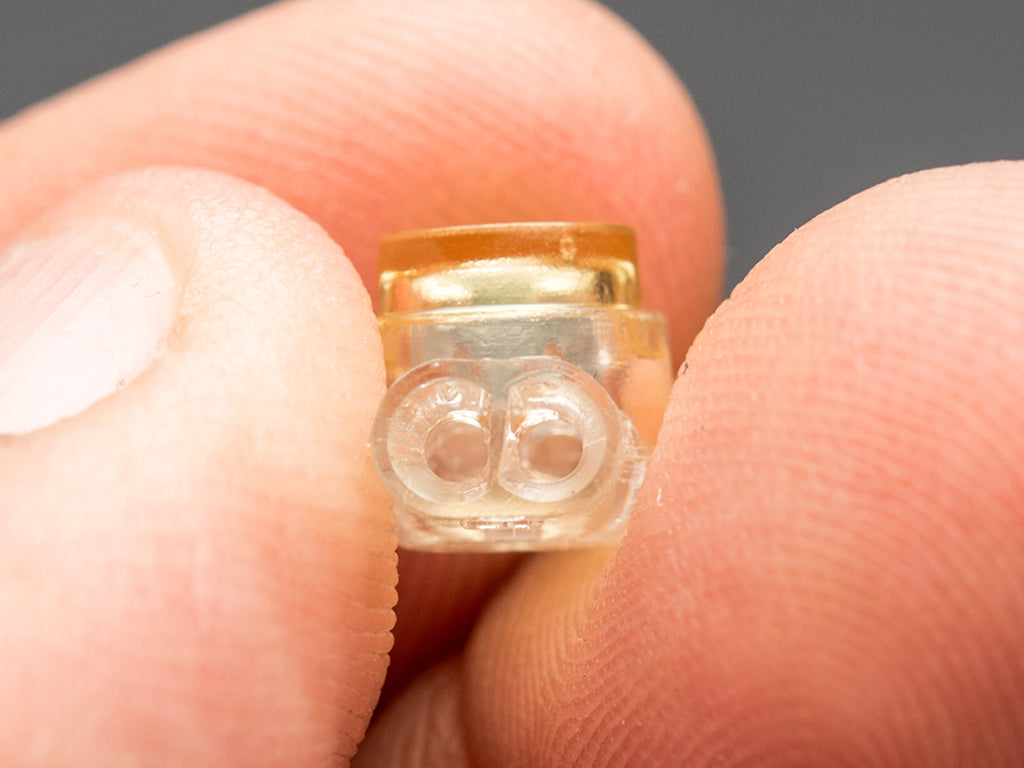

Cold 2-Wire Splice (UY) - 10 pack

$8.50 AUD Inc. GST


SKU ADA1496
Ships in 20 to 30 days 45 units

increment
decrement
decrement increment

Kiss those days of heat-shrink, melted jacketing and clumsily-arranged third-hand tools goodbye! Go 'cold splice' with these snap-able plastic splices for fast connections. Use with any 22-26 AWG solid core wire and slip them into the plastic splice so that they slide into the metal teeth. Then squeeze down with parallel-jaw or slip joint pliers - don't use needle-noses, they have too much angle and not enough force. We also like using our panavise to squeeze them down.

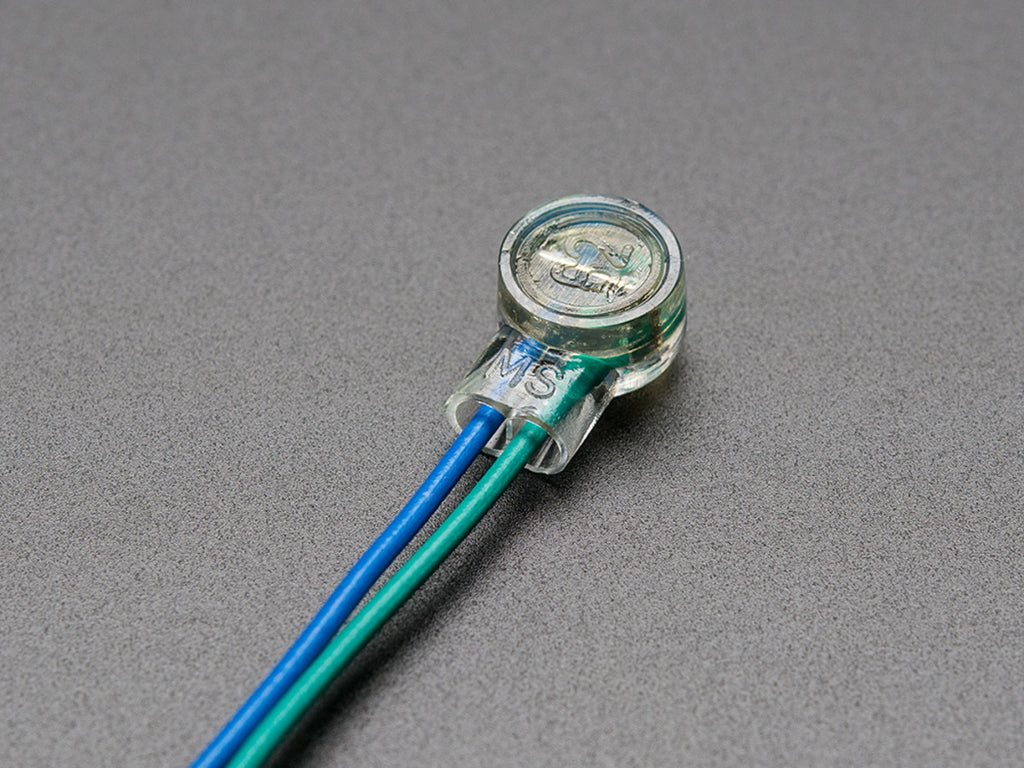

This is a two-way butt splice. Connect two 22-26 AWG solid-core wires by sliding them in and then squeezing all at once. It's an easy way to connect multiple wires without soldering, and is more compact than the three-way splice.

The splices contain a little silicone jelly to keep the cold splice from oxidizing so they are a bit weatherproof. They are not waterproof.

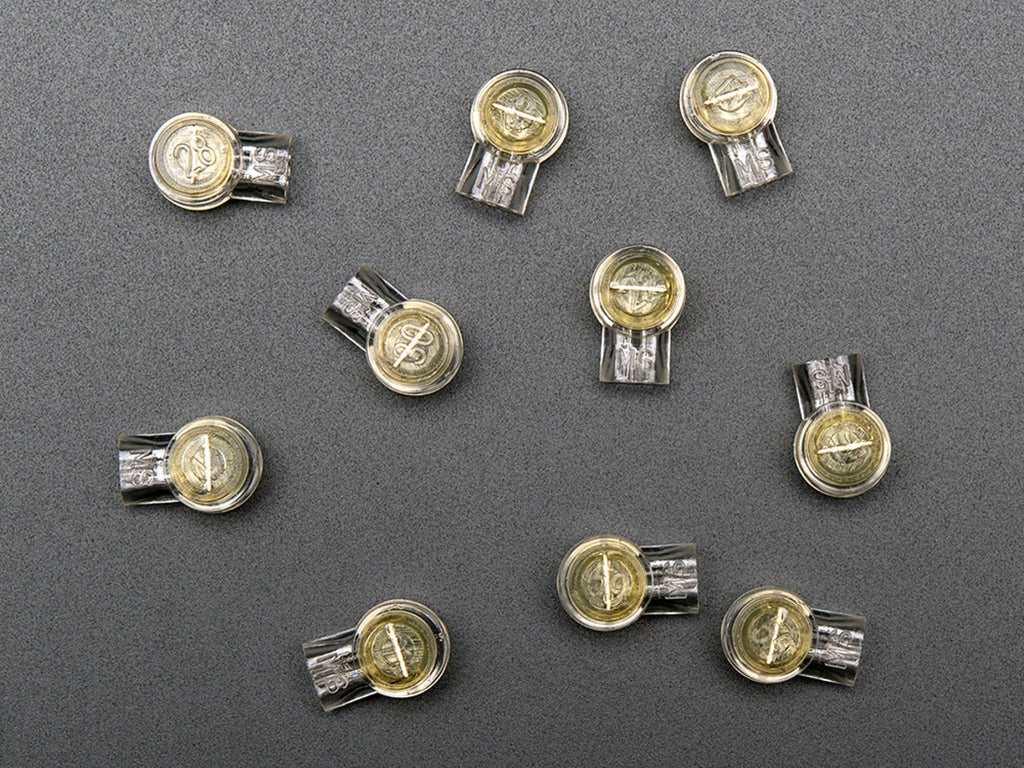

Comes in a pack of 10 pieces! They're handy so keep some around in your drawer.

Cold 2-Wire Splice (UY) - 10 pack (1:13)

Technical Details

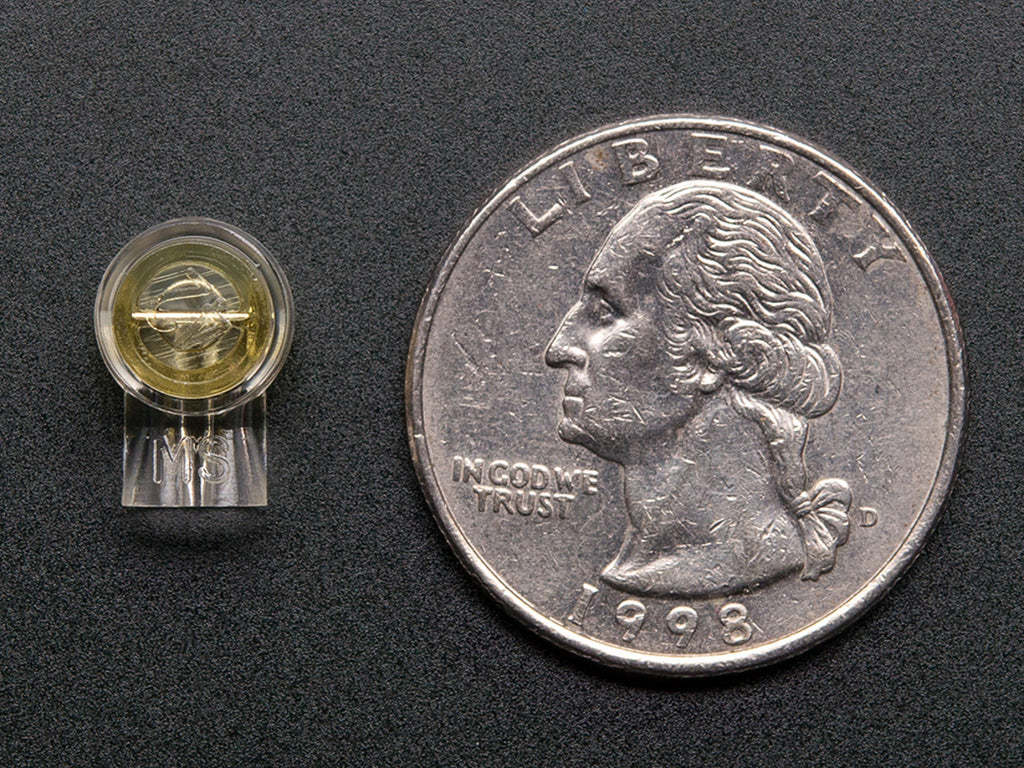

  • Max Dimensions: 12.25mm / 0.48" x 8.41mm / 0.33" x 7.82mm / 0.3"
  • Weight: 0.42g
