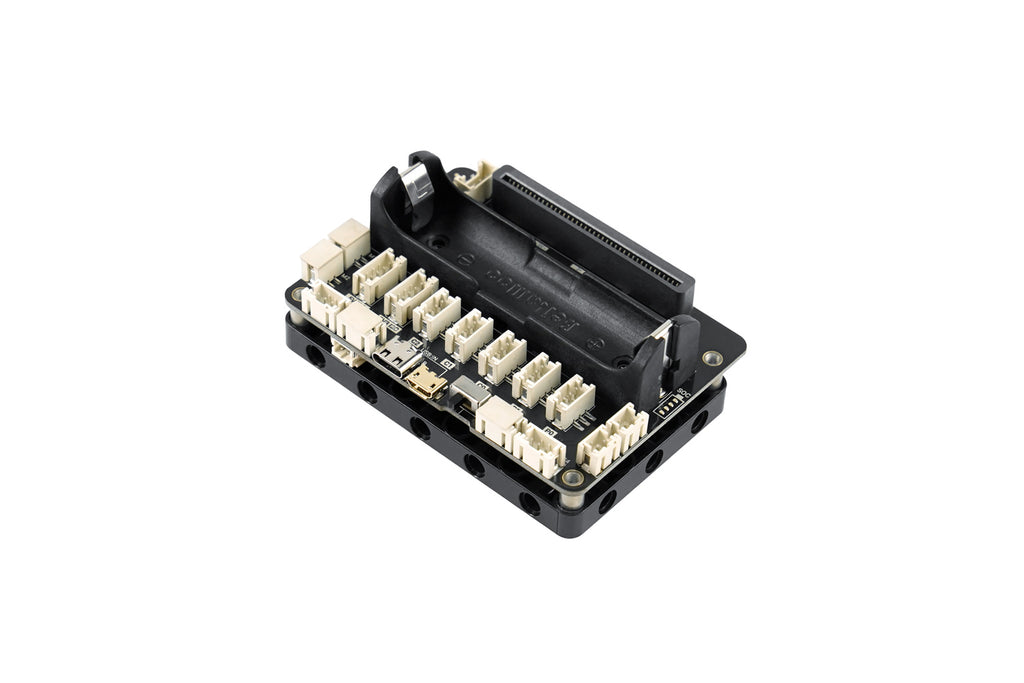

The Building Block Expansion Board Bundle for UNIHIKER M10 is the dedicated expansion solution designed specifically for the UNIHIKER M10 single-board computer. Unlike the UNIHIKER K10 or micro:bit which connect directly, the UNIHIKER M10 requires this specific custom cable to bridge communication with the expansion board. This connection unlocks the full potential of the UNIHIKER M10, enabling it to drive motors, servos, and sensors while mounted on LEGO structures.
Note: If you are using micro:bit or UNIHIKER K10, you do not need this cable. You can purchase the standalone board.
Figure: Building Block Expansion Board compatible with UNIHIKER K10, micro:bit, and UNIHIKER M10 controllers.
Cable-Free Mobility
A robot is not truly "mobile" if tethered to a wall outlet. This board addresses this limitation with an integrated rechargeable 18650 battery holder. It powers the UNIHIKER M10, motors, and sensors simultaneously via the battery, eliminating the need for external power banks. Additionally, the support for solar charging enables the creation of fully autonomous outdoor projects.
Seamless LEGO Integration

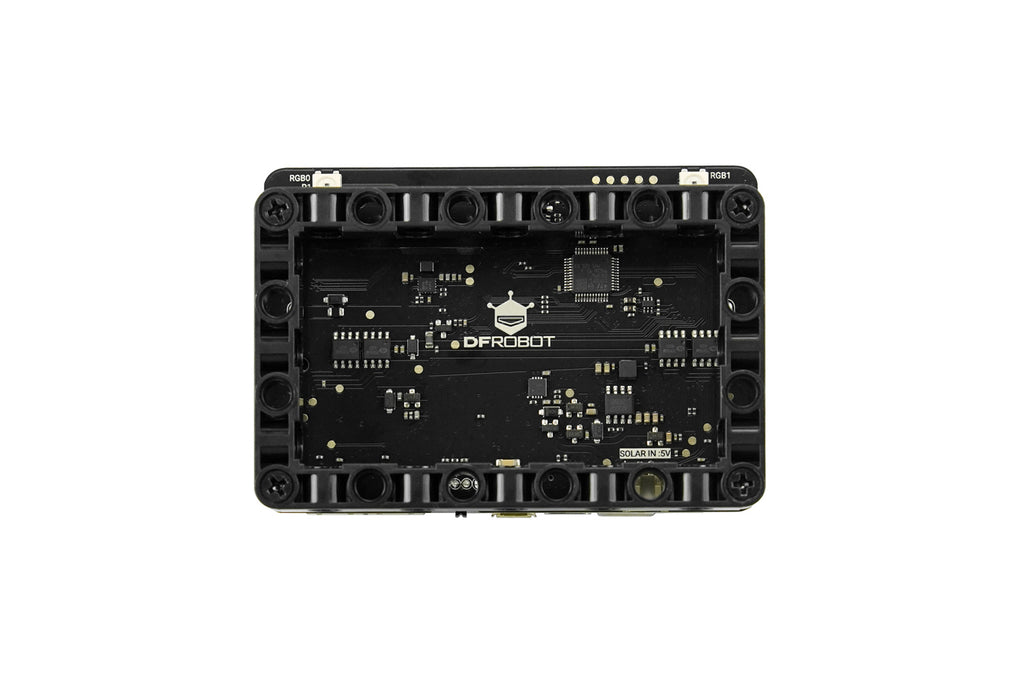

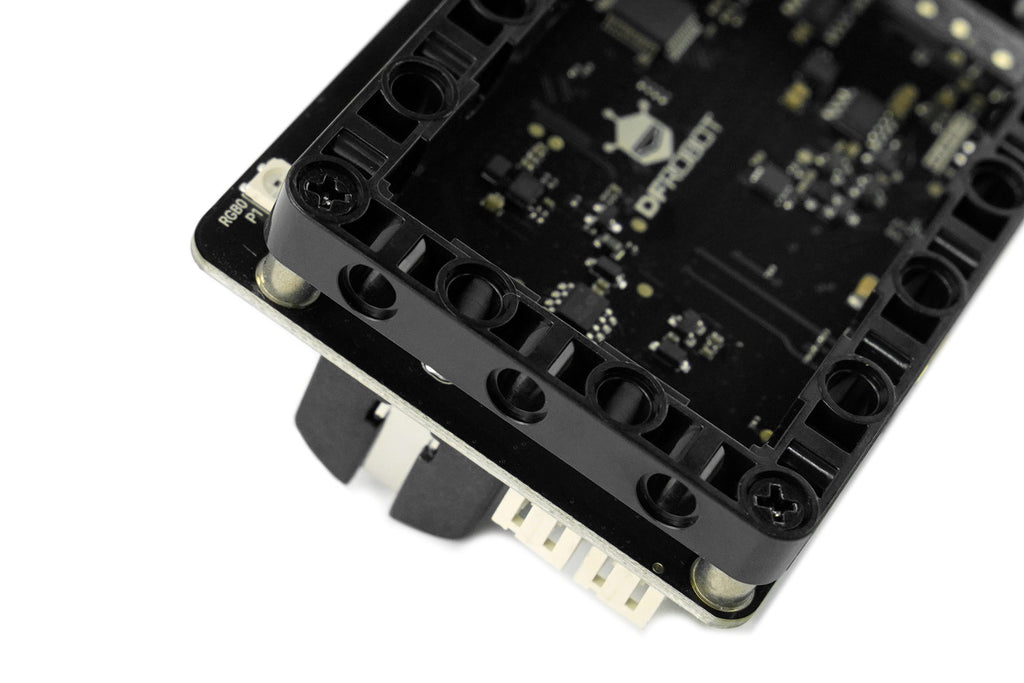

The design eliminates the need for adhesives or tape to attach electronics. The bottom of the board features a standard LEGO-compatible base, allowing it to snap securely onto beams and plates. This structural integration transforms the electronic module into a seamless part of the mechanical build.
Figure: DIY LEGO robot projects built with micro:bit and expansion board: tank, robotic arm, forklift, and helicopter.
Optimized for UNIHIKER M10 & Cross-Compatible
While the expansion bundle is tailored for the UNIHIKER M10 (via the included cable), the board itself remains fully compatible with micro:bit and UNIHIKER K10 (via direct plug-in). This makes it a versatile asset for classrooms or workshops that utilize multiple generations of educational controllers.
Figure: Top view of Building Block Expansion Board
Applications:
- Mobile Robots: Build a line-following car or obstacle-avoiding rover that runs completely wireless.
- Interactive LEGO Cities: Motorize elevators, gates, or windmills that react to sensors.
- AI Companions: Mount a HUSKYLENS and K10 to create a pet robot that recognizes its owner.
- Solar Projects: Utilize the PH2.0 solar port to create self-charging environmental monitors.
Specification:
Controller Compatibility:
- UNIHIKER M10 (Connects via the included Type-C Cable)
- micro:bit V1 & V2 (Direct Plug-in)
- UNIHIKER K10 (Direct Plug-in)
Power System:

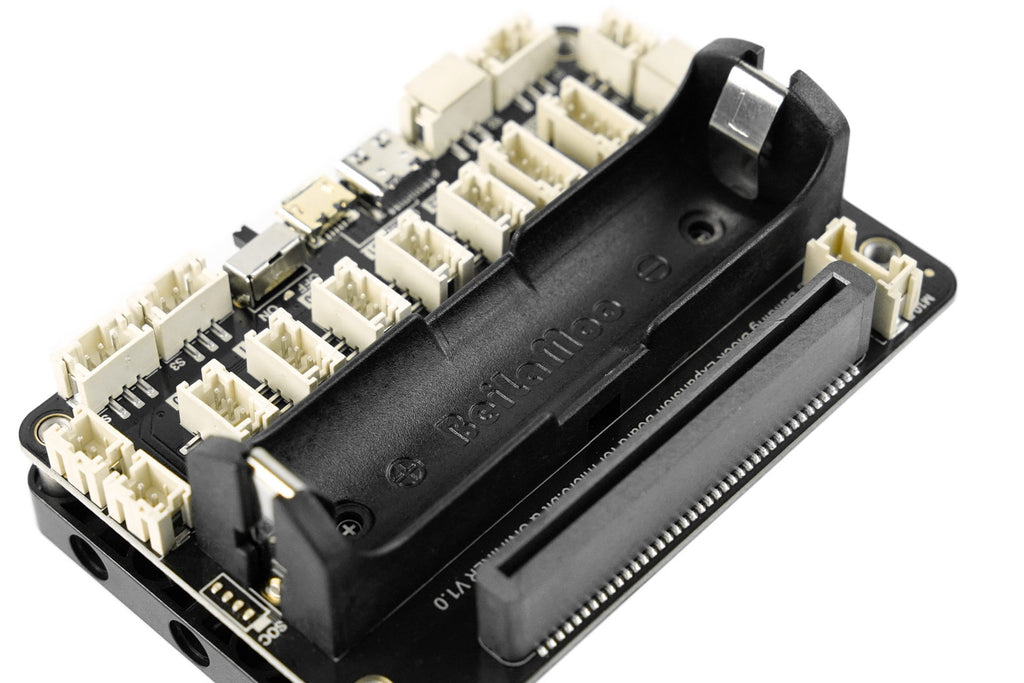

- Battery: Slot for 1x 3.7V 18650 Lithium Battery (User Replaceable)
- Charging: USB Type-C, MicroUSB, or Solar (PH2.0)
- Status: Onboard Power & Charging Indicator LEDs
Drive Capability:
- Motors: 4x DC Motor Ports (PH2.0)
- Servos: 4x Servo Ports (PH2.0)
Expansion Ports:
- Sensors: 2x Digital/Analog IO (Gravity Standard)
- I2C: 1x 3.3V I2C + 1x 5V I2C (Great for AI Cameras/OLEDs)
Special Features:
- LEGO-Compatible Base: Standard spacing holes
- Onboard RGB: 4x Programmable LEDs

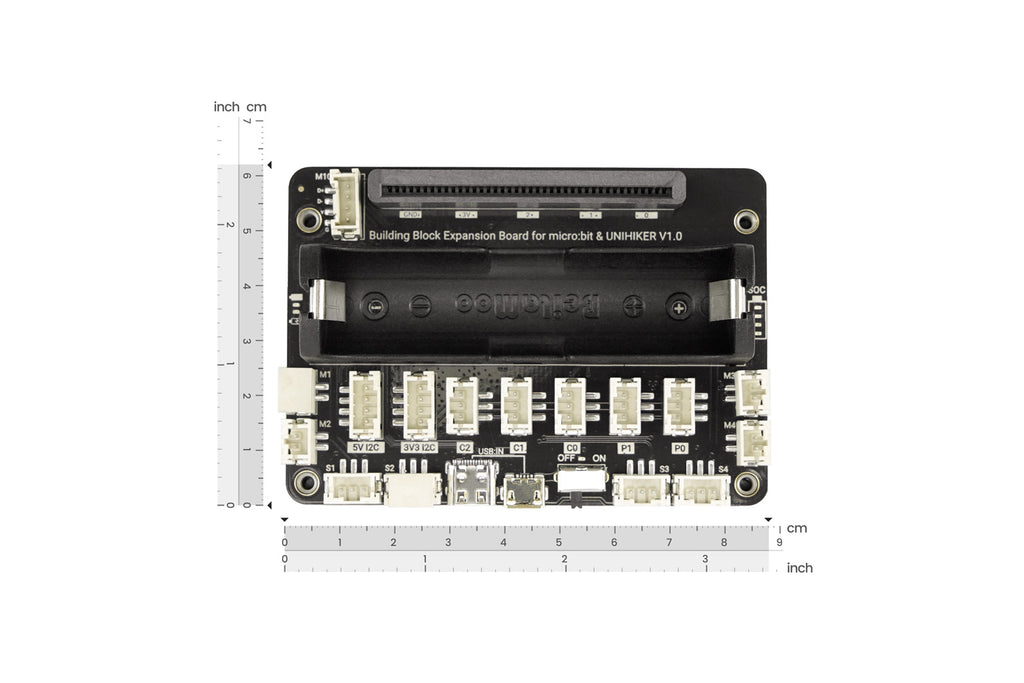

- Dimensions: 62mm x 88mm (Compact credit-card size footprint)
Documents:

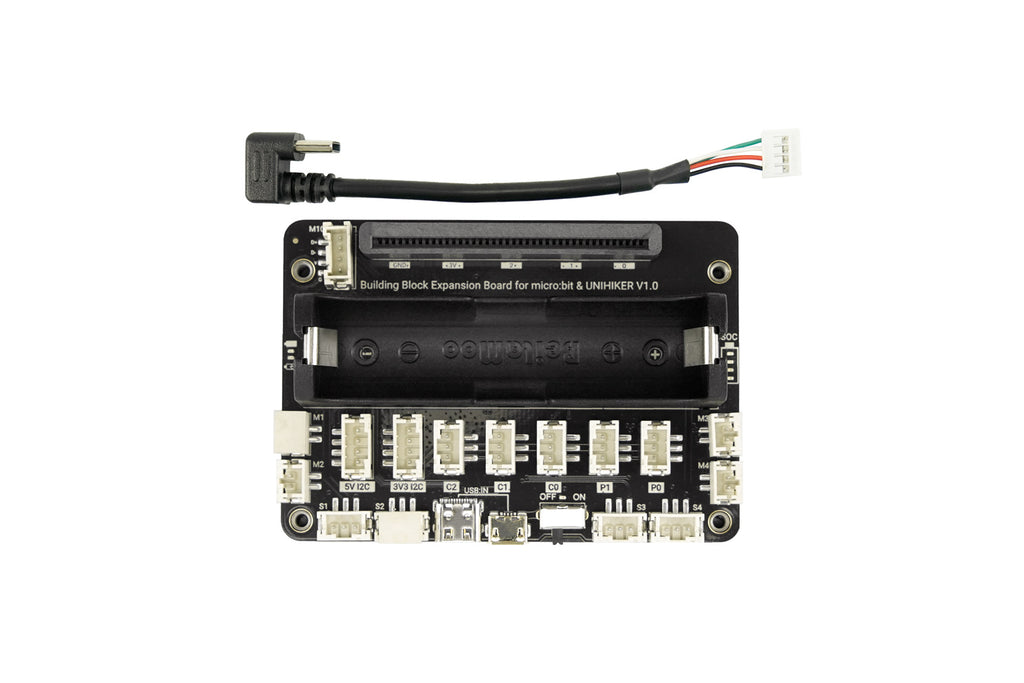

Product Includes:
- Building Block Expansion Board for micro:bit & UNIHIKER x1
- Type-C to HY2.0-4P Communication Cable for UNIHIKER M10 x1
