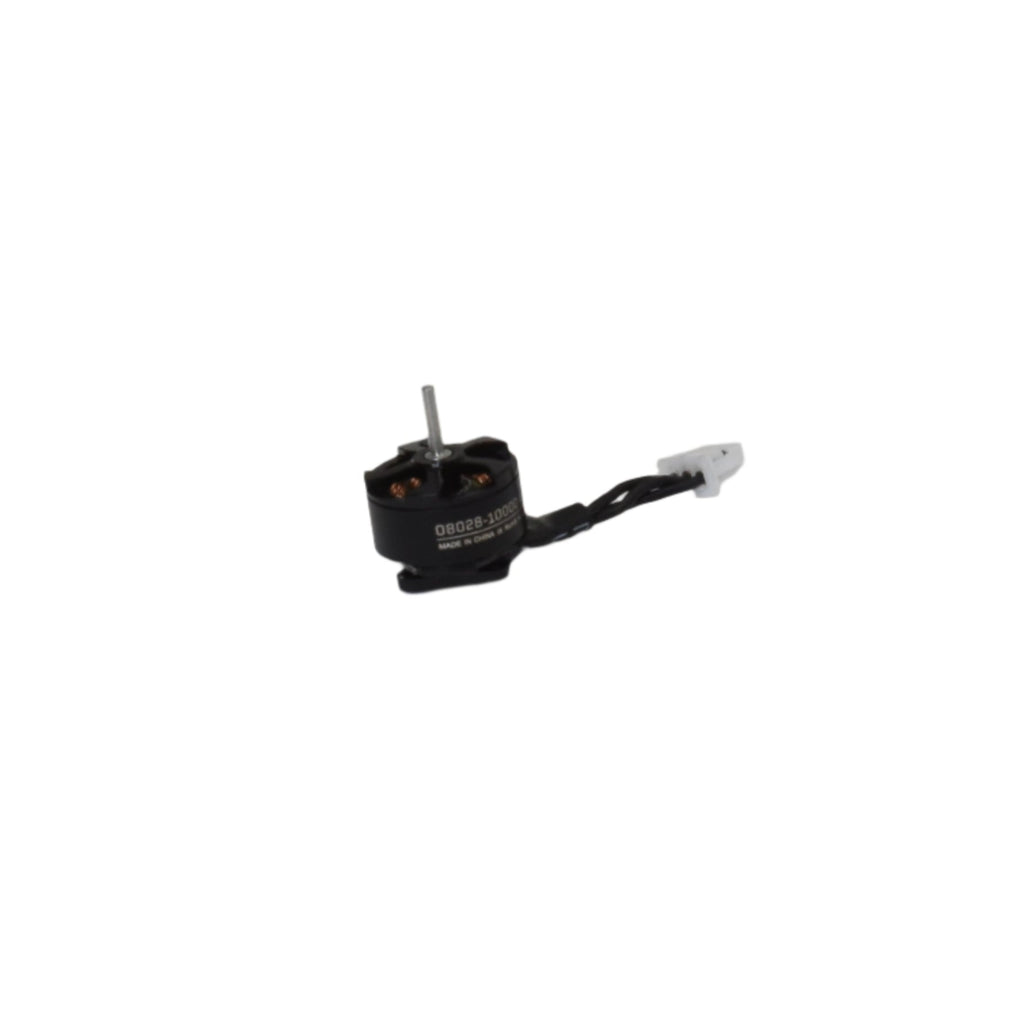

Crazyflie 2.1 Brushless: 08028-10000KV brushless motor
Crazyflie 2.1 Brushless: 08028-10000KV brushless motor

Crazyflie 2.1 Brushless: 08028-10000KV brushless motor

SKU: 114993549
A$40.24   Inc. GST
7 units ships in 24 hours from Melbourne

This product is a spare part for the Crazyflie 2.1 Brushless

Key Features

  • Dual ball bearings for reduced friction and extended motor life.
  • Optimized for efficiency, ~5 g/W @ 10 grams thrust with BC55-35 propeller.
  • High-quality built with 0.2mm Kawasaki silicon steel sheets and aviation aluminum alloy AL2A12.

Specification

  • Motor KV: 10000
  • Internal resistance (mOhm): 520
  • Stator Diameter (mm): 8.4
  • Stator Height (mm): 2.8
  • Stator slots: 9
  • Stator poles: 12
  • No-Load current (A@4V): 0.40
  • Peak Current (A): 1.8
  • Max Instantaneous Power (W): 7.2
  • Overall Dimension (mm): Ø10.7*L13.8
  • Shaft Diameter (mm) Ø1.0*L5.0
  • Rated Voltage (V): 4.2 (1S)
  • Propeller (mm): Bitcraze 55-35
  • Weight with cable (g): 2.3

Package contents

  • 1 x 08028-10000KV brushless motor
  • 4 x M1.4*3.7mm black philips screws
