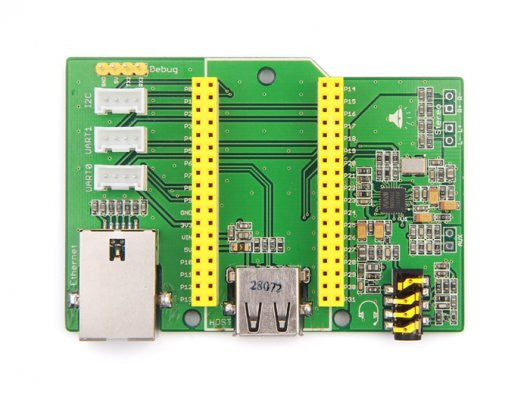

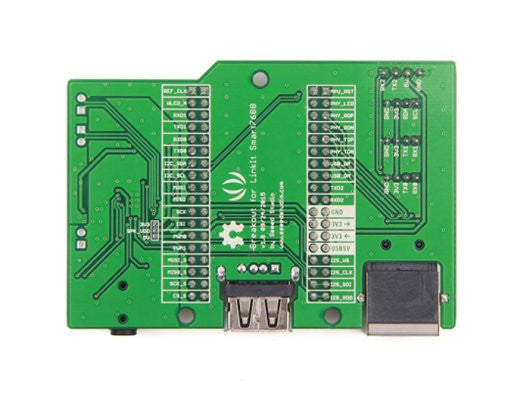

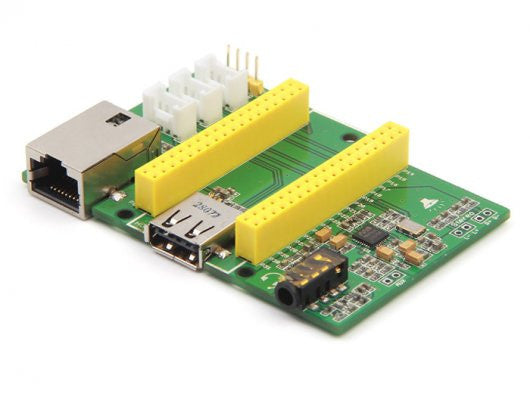

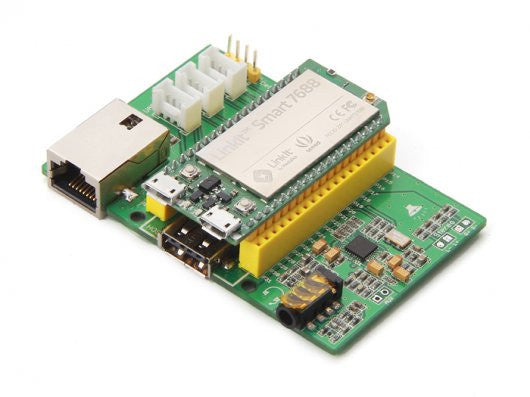

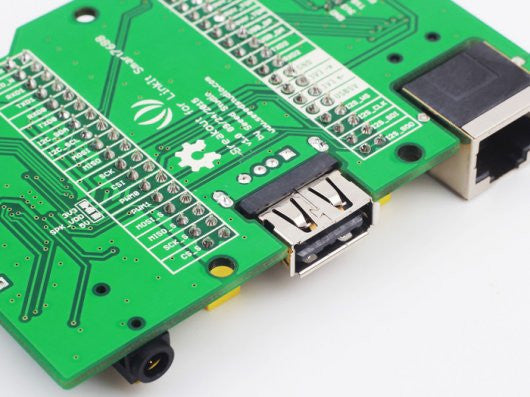

Breakout for LinkIt Smart 7688 is a Grove port integrated and featured expansion board for LinkIt Smart 7688 development board. This breakout board will save a lot of work for quicker prototyping especially for novices through simplified wiring procedure. So it will help a beginner get fast at the start. It support different usual bus and such as I2C, UART and reserve original pins of LinkIt Smart 7688. In addition, it also integrates several frequently used peripheral ports such as USB port, Ethernet port and 3.5mm audio port.
LinkIt Smart 7688 (a compact controller board) is an open development board, based on the OpenWrt Linux distribution, MT7688. The board is designed especially to enable the prototyping of Rich Application IoT devices for smart house.
- 3.5mm headphone Jack(with Mic) for multimedia
- 1 x Ethernet to connect internet
- 1 x USB 2.0 for more peripherals
- Grove interface: 2 x UART, 1 x I2C
- Stereo and AUX are supported
- Input voltage: 5.0V (With USB Power port)
- Operating voltage: 3.3V
- Debug pins, Ethernet pins and USB type-A host pins connect with MT7688
Demo –Smart WiFi Audio
It is a WiFi Audio which allows your mobile phone to connect to its WiFi and play the music in your phone. If you connect the Linklt Smart 7688 to your Router, the Audio will show the IP on the Grove RGB Backlight LCD, and also the music names.
Learn more at our Recipe.
Documents
Please visit our Wiki page for more info about this product. It will be highly appreciated if you can help improve the documents, add demo codes or tutorials. For technical support, please post your questions to our Forum.
