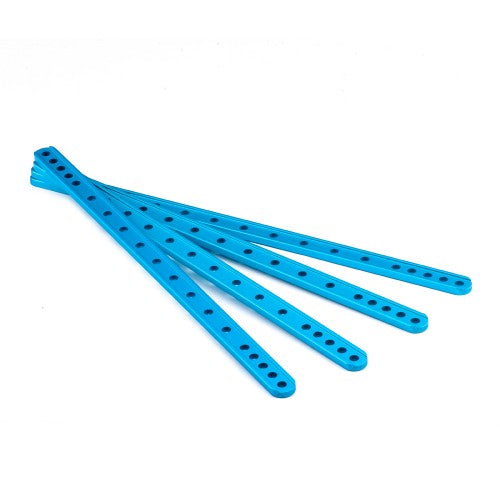

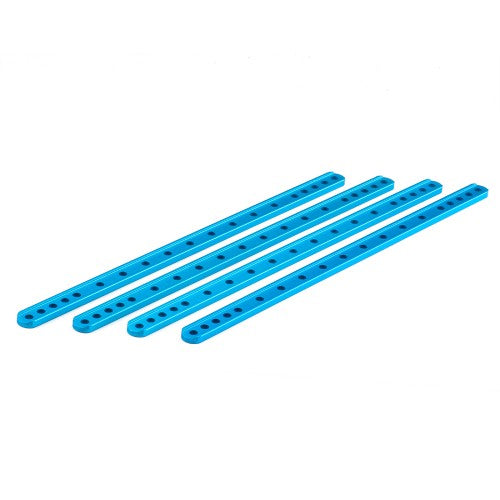

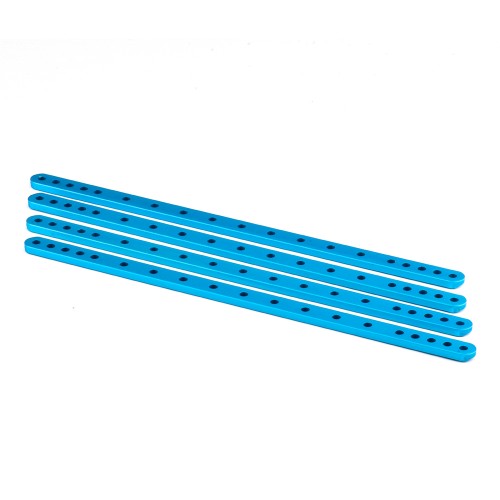

Beam0412-236-Blue (4-Pack)

Price:
Sale price A$17.28   Inc. GST
SKU:
MB60727
5 units Ships in 10 to 15 days


What Are Beams?

Beams are the most frequently-used parts of Makeblock platform which can be used to build all kinds of mechanical structures. Beam 0412 series is usually applied as linking-rod parts and comes with different length varying from 36mm to 236mm for various building needs.

Versatile Usage

• Works perfectly with Plastic Gear, Timing Pulley, other wheel-related parts, and motor shafts;

• Build various linking-rod structures thru different combinations;

• Can be used with angular sensor to enables angle feedback between 2 linking-rod parts;

• Equipped with slots for easy and flexible connection with Beam 0808 & 0824.




Design & Material

• Compatible with most Makeblock motions and structure components;

• Made from heavy-duty 6061 aluminum extrusion with anodized surface for long-time use;

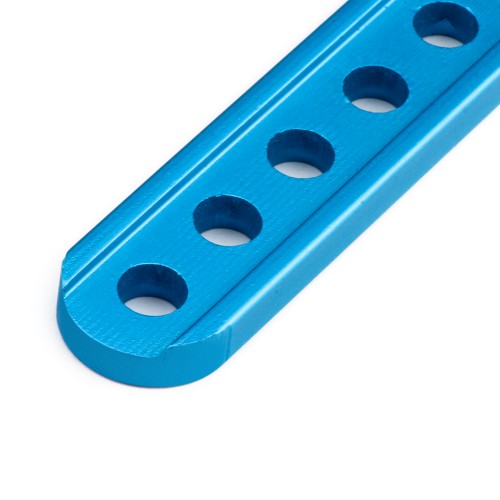

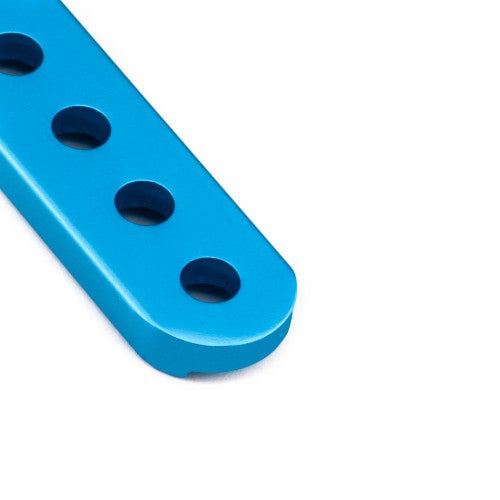

• With 4mm diameter through-holes on 16mm increments.

△Note

This page is for Beam 0412-236 with length of 236mm. For other configuration, please search Beam 0412 in our website.



Building Examples:

Size Chart (mm):

Specifications

SKU 60727
Material 6061 Aluminum
Diameter of holes 4mm
Cross-section area 4 x 12mm
Length 236mm
Package content 4 x Beam 0412-236
Dimension 236 x 12 x 4mm (9.29 x 0.47 x 0.16'')
Net Weight 88g (3.1oz)
