Description

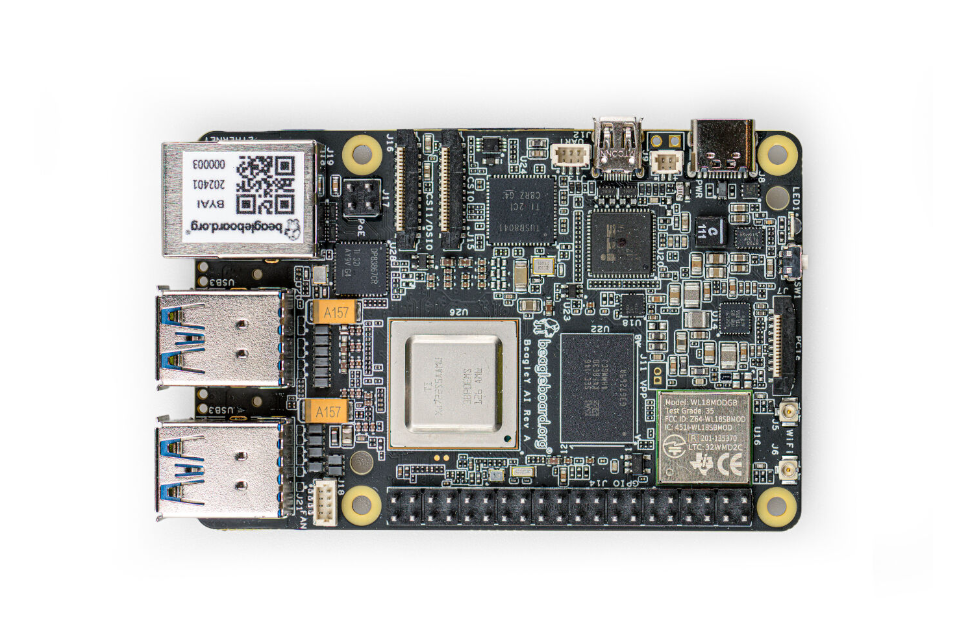

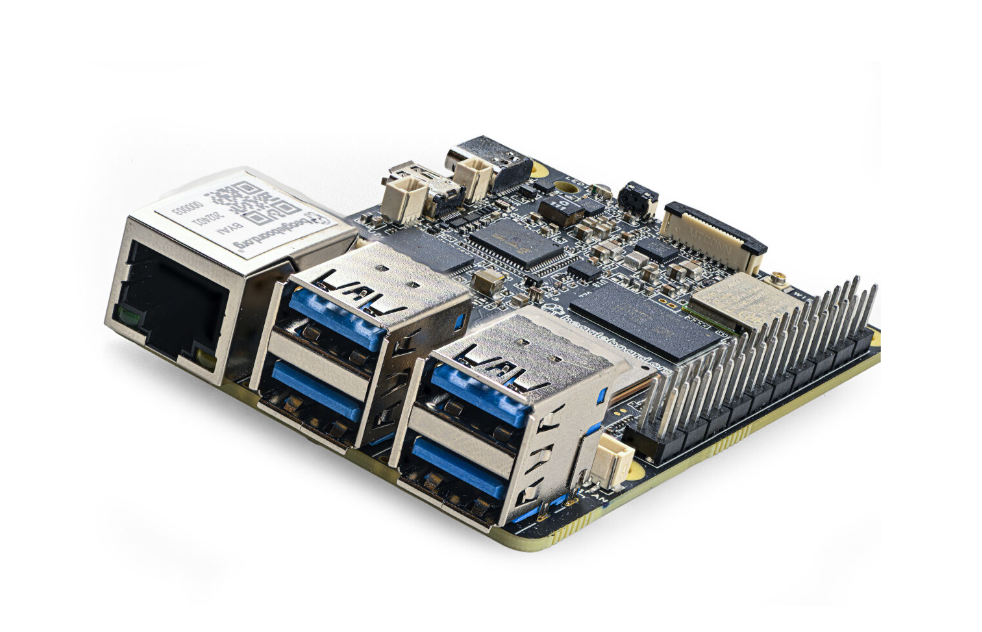

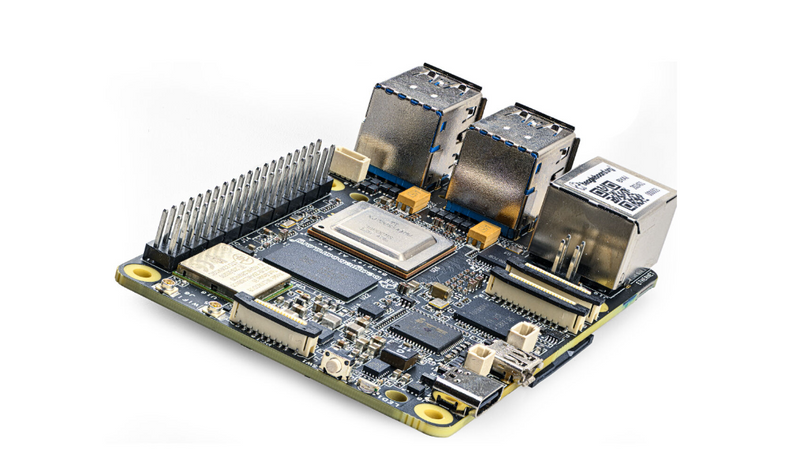

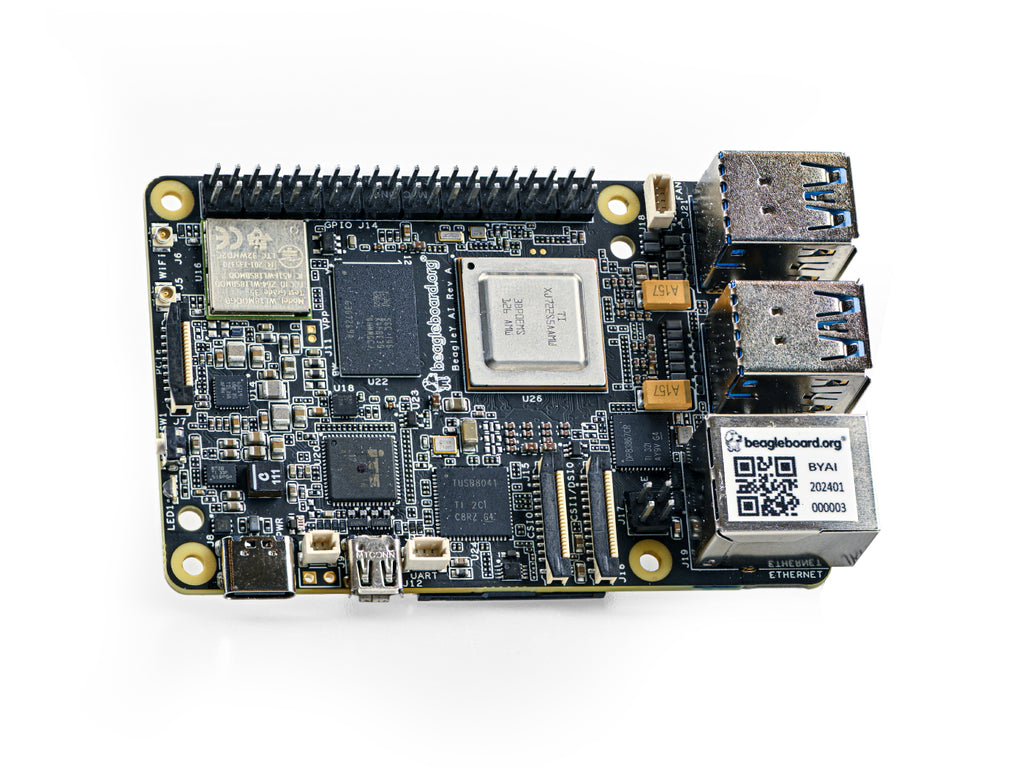

BeagleY®-AI is a single board computer launched by beagleboard.org® which is fully open source to facilitate the ecosystem of open source community.
BeagleY®-AI is powered by the innovative AM67A AI vision processor by Texas Instruments. Boasting four 64-bit Arm®Cortex®-A53 CPU cores with clock speeds up to 1.4 GHz, two C7x DSPs, and two Matrix Accelerators (MMAs), this processor delivers up to 4 TOPS of deep learning performance. It also includes a vision processing accelerator with ISP, GPU cores, and multiple Arm Cortex-R5 cores for efficient GPIO control. Maximize its capabilities through high-speed PCIe, USB3 interfaces, and versatile multimedia I/Os for cost-effective multi-camera and multi-display system designs.BeagleY®-AI’s 40-pin expansion header enables breadboard- and solder-free system prototyping with countless compatible sensors, actuators, and connectivity add-ons. And as an open-source design, professional and advanced users are also free to modify the hardware to take control of the supply chain, manufacturing, and build derivatives that are cost-, size-, and use case-optimized.
About BeagleBoard.org® Foundation -
BeagleBoard.org® Foundation founded in 2007 is focused on developing open-source hardware platforms that foster innovation and collaboration. BeagleBoard.org® has a rich history of creating accessible, versatile, and powerful single board computers, enabling developers, hobbyists, and professionals to bring their ideas to life.
Feature
● Texas Instruments AM67A Arm-based vision processor
-Quad-core 64-bit Arm®Cortex®-A53 CPU subsystem at 1.4GHz
-Dual general-purpose C7x DSP with Matrix Multiply Accelerator (MMA) capable of 4 TOPs
-Arm Cortex-R5 subsystem for low-latency I/O and control
-GPU, video and vision accelerators, and other specialized processing capability
● Memory
-4GB LPDDR4
-microSD card socket
-Board identifier EEPROM
-BeagleBoard.org BM3301 module
Wi-Fi 6 (IEEE802.11ax)
Bluetooth® 5.4 with Bluetooth Low-Energy (BLE)
-Gigabit Ethernet with power-over-Ethernet (PoE+) support via add-on
● 3 Simultaneous Displays
-microHDMI
-OLDI (LVDS) with touchscreen support
-MIPI-DSI with touchscreen support (muxed with MIPI-CSI)
● Other I/O
-PCI-Express® Gen3 x 1 interface (requires external adapter)
-4x USB3 (5Gbps) type-A host ports
-1x USB2 (480Mbps) type-C device port and power input
-40-pin expansion header
-Fan power and control connector
● Debug
-3-pin JST-SH console UART
-10-pin TAG-CONNECT JTAG header
Application
● Robotics
● Factory and Building Automation
● Test & Measurement
● Medical
● Human-Machine Interfaces (HMIs)
● Intelligent Vision
-Image Classification
-Object Detection
-Semantic Segmentation
Specification
Parameters | Description |
Processor | TI AM67A, Quad 64-bit Arm® Cortex®-A53 microprocessor subsystem at up to 1.4 GHz, multiple cores including Arm/GPU processors, DSP, and vision/deep learning accelerators up to 4 TOPS |
RAM | 4GB LPDDR4 |
Wi-Fi | Beagleboard BM3301, 802.11ax Wi-Fi |
Bluetooth | Bluetooth Low Energy 5.4 (BLE) |
USB Ports | 4 x USB 3.0 Type A ports, supports 5Gbps operation 1 x USB 2.0 Type C, supports USB 2.0 device |
Ethernet | Gigabit Ethernet, with PoE support (requires separate PoE HAT) |
Camera/Display | 1 x 4-lane MIPI camera/display transceivers 1 x 4-lane MIPI camera |
Display Output | 1 x HDMI display 1 x OLDI display |
Real-time Clock (RTC) | Supports external RTC battery for power failure time retention |
Debug UART | 1 x 3-pin debug UART |
Power | 5V/5A DC power via USB-C, with Power Delivery support |
Power Button | On/Off included |
PCIe Interface | PCI-Express® Gen3 x 1 interface for fast peripherals (requires separate M.2 HAT or other adapter) |
Expansion Connector | 40-pin header |
Fan connector | 1 x 4-pin fan connector, supports PWM speed control and speed measurement |
Storage | microSD card slot, supports up to ultra high-speed SDR104 mode |
Tag-Connect | 1 x JTAG 1 x Tag-Connect for PMIC NVM programming (test and debug purposes only) |
Board Dimension | 85 x 56 x 20mm |

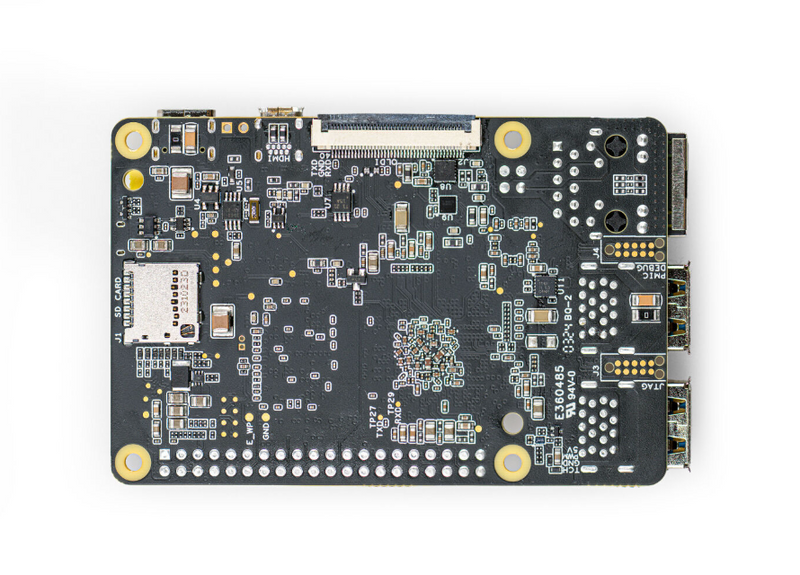

Hardware Overview
Part List
1x BeagleY®-AI Board
1x Quick start card
ECCN/HTS
HSCODE | 8471504090 |
USHSCODE | 8543708800 |
UPC | 640265311062 |
EUHSCODE | 8471707000 |
COO | CHINA |
CE | 1 |
EU DoC | 1 |
FCC | 1 |
REACH | 1 |
RoHS | 1 |
