BeagleV® is an advanced single-board computer with a powerful RISC-V processor IP, AI acceleration, hybrid network connection, and a wide range of interfaces. It supports multiple operating systems and is ideal for both complex AI systems and simple embedded projects.
Feature
- Open-source and Advanced RISC-V Single Board Computer: Powered by TH1520 RISC-V quad-core Xuantie C910 processor IP operating at up to 1.85GHz
- Significant AI Acceleration: Offer 4 TOPS NPU @ INT8 1GHz computing power, support Tensor Flow, ONNX, Caffe framework
- Hybrid Network Connection: Integrate with 2.4G Wi-Fi & Bluetooth 5.2 wireless connection and provide 1 Gigabit Ethernet network interface
- Rich Extensions and Interfaces: Equip mikroBUS™ uniform connection, provide 2x CSI, 1x HDMI, 1x DSI media ports, 2x 46pin BeagleBone® Header, 1x microSD, and 1x microUSB 3.0
- Multiple OS Support: Support Yocto, and Linux distribution such as Ubuntu and Fedora (in development)
Description
BeagleV® - Ahead is the state-of-the-art single-board computer, powered by the advanced TH1520 RISC-V quad-core Xuantie C910 processor IP, capable of operating at up to 1.85GHz. This board is designed for high-performance computing and offers significant AI acceleration with its 4 TOPS NPU @ INT8 1GHz computing power. It supports popular AI frameworks such as TensorFlow, ONNX, and Caffe.
The board is equipped with a hybrid network connection, integrating 2.4G Wi-Fi and Bluetooth 5.2 wireless technology, and also providing a 1 Gigabit Ethernet network interface. It can offer mobility and flexibility of the scene, while also providing stability and security scenarios.
It includes a mikroBUS™ uniform connection interface, enabling instant connection of 1000+ click boards to the main development board. It also contains rich extensions and interfaces, where there are 2x CSI, 1x HDMI, 1x DSI multimedia ports, 2x 46pin BeagleBone® Header, 1x microSD, and 1x microUSB 3.0, this board offers a wide range of possibilities for various projects.
The board supports multiple operating systems, including Yocto and Linux distributions such as Ubuntu and Fedora (the latter is currently in development), making it an ideal choice for developers and enthusiasts alike. Whether you're building a complex AI system or a simple embedded project, this single-board computer has the power and versatility to meet your needs.

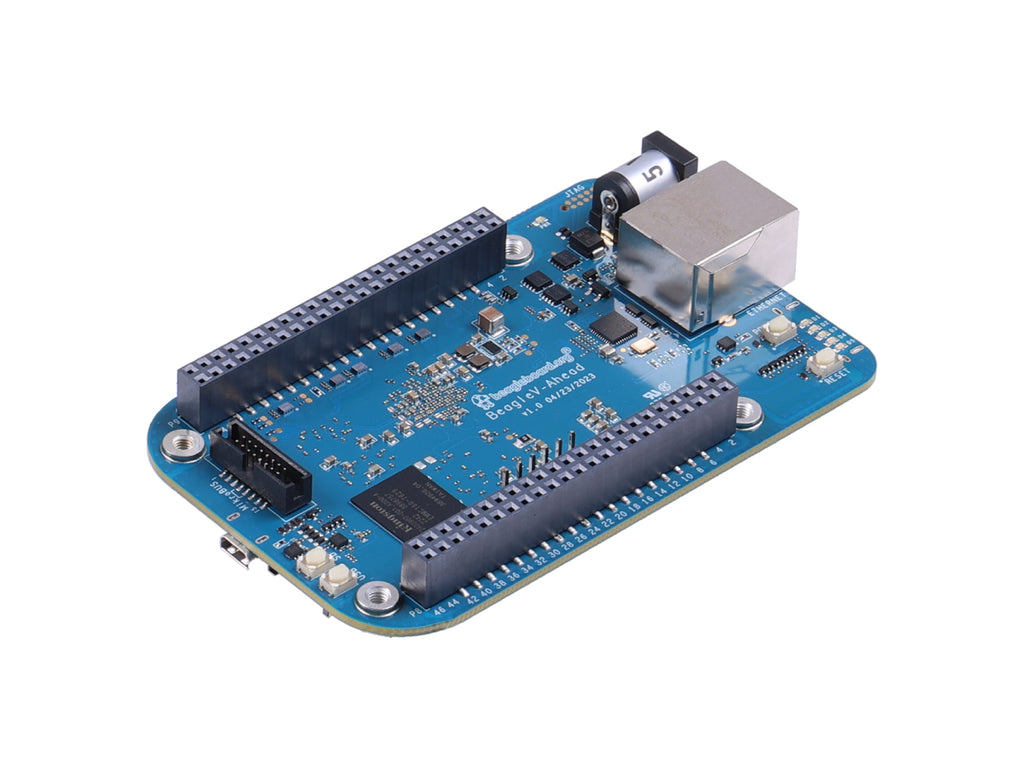

Hardware Overview
Specification
Feature | Description |
Processor | T-Head TH1520 (quad-core Xuantie C910 processor) |
PMIC | DA9063 |
Memory | 4GB LPDDR4 |
Storage | 16GB eMMC |
WiFi/BlueTooth | · PHY: AP6203BM · Antennas: 2.4GHz & 5GHz |
Ethernet | · PHY: Realtek RTL8211F-VD-CG Gigabit Ethernet phy · Connector: integrated magnetics RJ-45 |
microUSB 3.0 | · Connectivity: USB OTG, Flash support · Power: Input: 5V @ <To-Do>, Output: 5V @ <To-Do> |
HDMI | · Transmitter: TH1520 Video out system · Connector: Mini HDMI |
Other connectors | · microSD · mikroBUS connector (I2C/UART/SPI/MCAN/MCASP/PWM/GPIO) · CSI connector compatible with BeagleBone® AI-64, Raspberry Pi Zero / CM4 (22-pin) · DSI connector |
Part List
BeagleV®-Ahead board | x1 |
One (1) 2.4GHz/5GHz antenna | x1 |
MicroUSB OTG cable | x1 |
Quick-start card | x1 |
ECCN/HTS
| HSCODE | 8471504090 |
| USHSCODE | 8543708800 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
