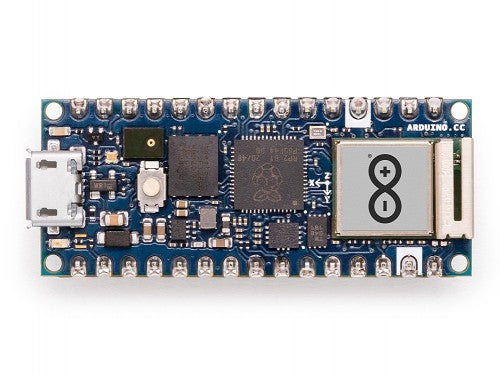

Meet the only connected RP2040 board. It fits the Arduino Nano form factor, making it a small board with BIG features.
The brain of the board is the Raspberry Pi RP2040 silicon; a dual-core Arm Cortex M0+ running at 133MHz. It has 264KB of SRAM, and the 16MB of flash memory is off-chip to give you extra storage.
But what’s really exciting is the on-board connectivity options. The hugely popular and highly adaptable u-blox NINA-W102 radio module is on there to make this a true IoT champion. This also means you can harness the power of the cloud, with fully Arduino Cloud compatibility.
It’s got on-board, built-in sensors to turn your builds into powerhouse projects, too. Microphone and motion sensing add a depth of possibilities that’s almost impossible to find in a board of this size.
The Arduino Nano RP2040 Connect is the premium choice for RP2040 devices, and the perfect option for upgrading your projects and unlocking the potential of new ones.
The u-blox NINA-W102 radio module makes this the only connected RP2040 option. It gives you full WiFi 802.11b/g/n connectivity, along with Bluetooth® and BLE v4.2
Packed onto this tiny board are a couple of very useful sensors. A built-in mic is there for sound activation, audio control and even AI voice recognition. The six-axis smart IMU with AI capabilities tells the board which way it’s moving, and adds fall sensing and double-tap activation.
Hard Working Hardware
It might be a small board, but the Nano RP2040 Connect packs a hardware punch. It matches the established Arduino Nano form factor, making it the perfect upgrade for projects of all sizes.
With 16MB flash memory that’s external to the microprocessor, there’s bags of room for your code and storage needs.
The programmable I/O pins have functions that bigger boards only dream of; 22 digital, 20 with PWM and 8 analog.
Raspberry Pi Pico Compatible
Smart software options for a very smart device. It has full support for the entire RP2040 software ecosystem.
Supports the Arduino programming language, the IDE 2.0 and all those awesome libraries.
Full support for MicroPython. Get a Nano RP2040 Connect, and it comes with a FREE OpenMV license for machine vision.
Arduino Cloud Ready
Program and operate the Nano RP2040 Connect directly from your browser. Fully compatible from day one. Upload your sketches remotely over-the-air with instant remote control from the free Arduino IoT Remote smartphone app.
The Arduino Nano RP connect is also available without headers mounted

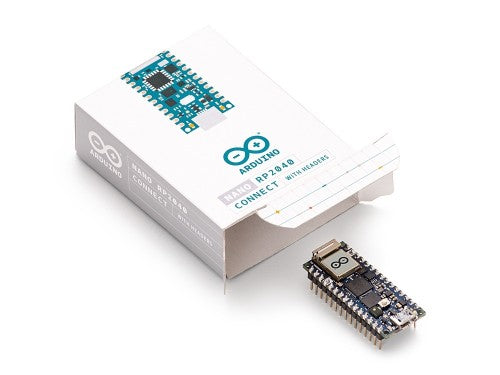

Nano RP2040 Connect with Headers
Raspberry Pi RP2040
Built-in LED pin
Digital I/O Pins
Analog Input Pins
20 (Except A6, A7)
20 (Except A6, A7)
Nina W102 uBlox module
Nina W102 uBlox module
ATECC608A-MAHDA-T Crypto IC
Circuit operating voltage
Input Voltage (VIN)
DC Current per I/O pin
16MB Flash IC
Nina W102 uBlox module
448 KB ROM, 520KB SRAM, 16MB Flash
For the full technical documentation, tutorials and much more, visit Arduino Docs.Browse through hundreds of tutorials, datasheets, guides and other technical documentation.
Arduino NanoRP2040 Connect is open-source hardware! You can build your own board using the following files:
Download the full pinout diagram as PDF here
Interactive Board Viewer
Can I power the Nano RP2040 with a battery?
Batteries: the Nano RP2040 Connect has no battery connector, nor charger. You can connect any external battery of your liking as long as you respect the voltage limits of the board.
Does the Nano RP2040 have I2C pins? / Can I use I2C communication with the Nano RP2040?
- I2C pins: Pins A4 and A5 have an internal pull up and default to be used as an I2C Bus so usage as analog inputs is not recommended.
- Operating voltage: The operating voltage for Nano RP2040 Connect is 3.3V
What is the 5V pin for?

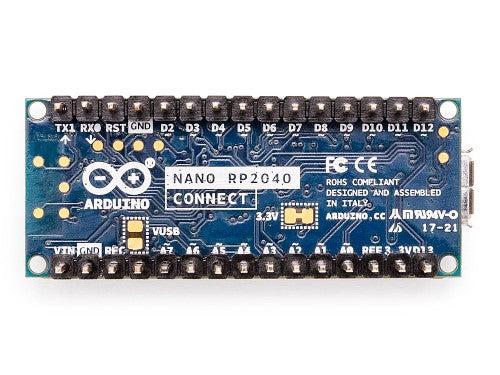

5V: This pin outputs 5V from the board when powered from the USB connector. Note: for it to work, you need to short theor VBUS jumper on the back of the board. If you power the board from the VIN pin, you won’t get any regulated 5V and even if you do the solder bridge.
Does the Nano RP2040 have PWM pins?
PWM: All pins except for A6 and A7 are available for PWM.
How can I use the embedded RGB LED?
RGB: The RGB LEDs are connected through the Wi-Fi module, so it is required to include the WiFiNINA library to use it.
