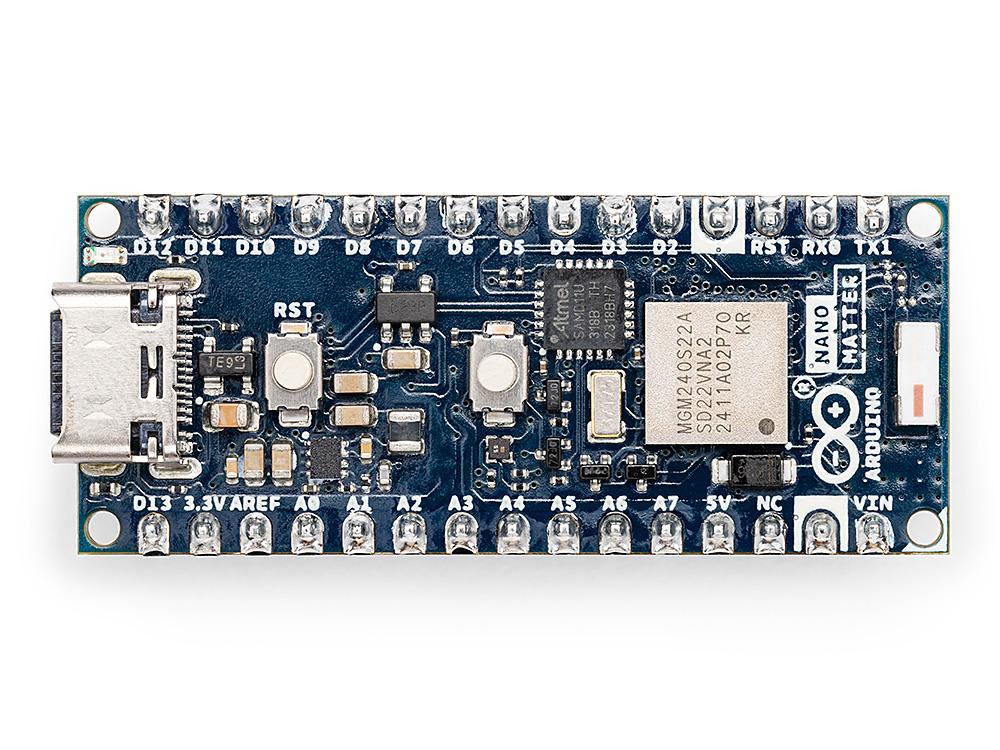

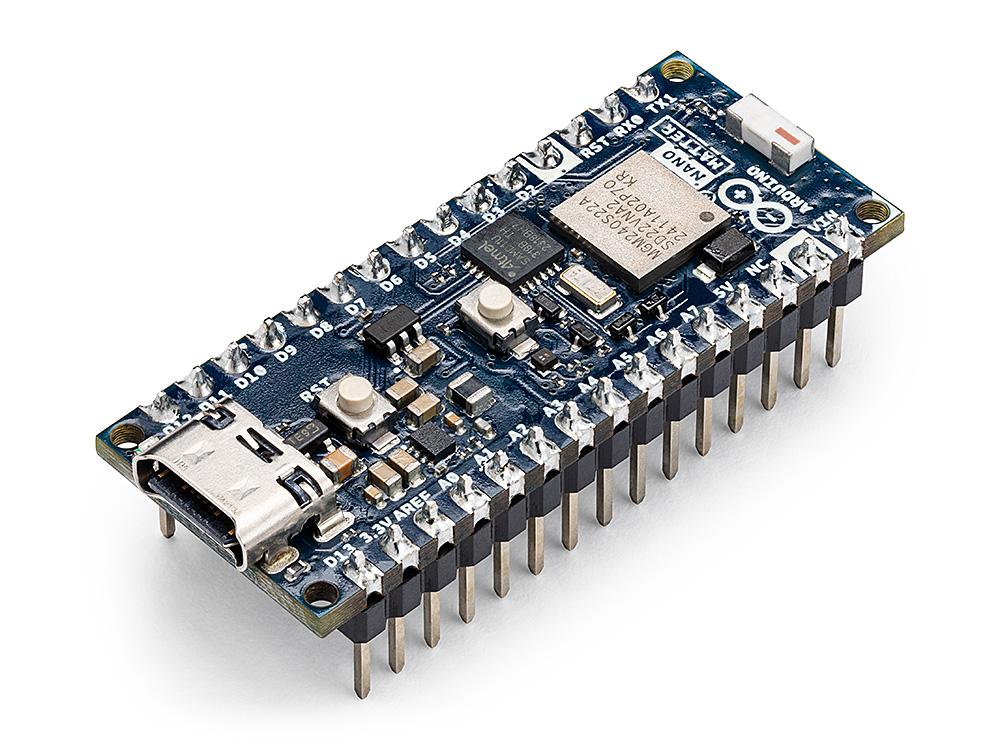

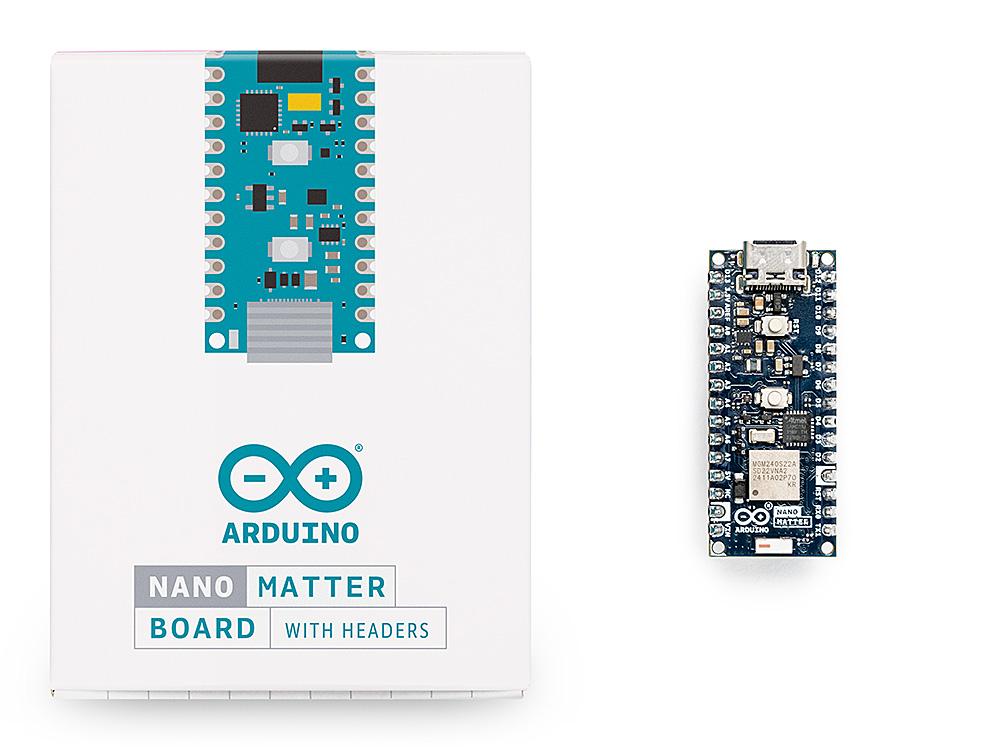

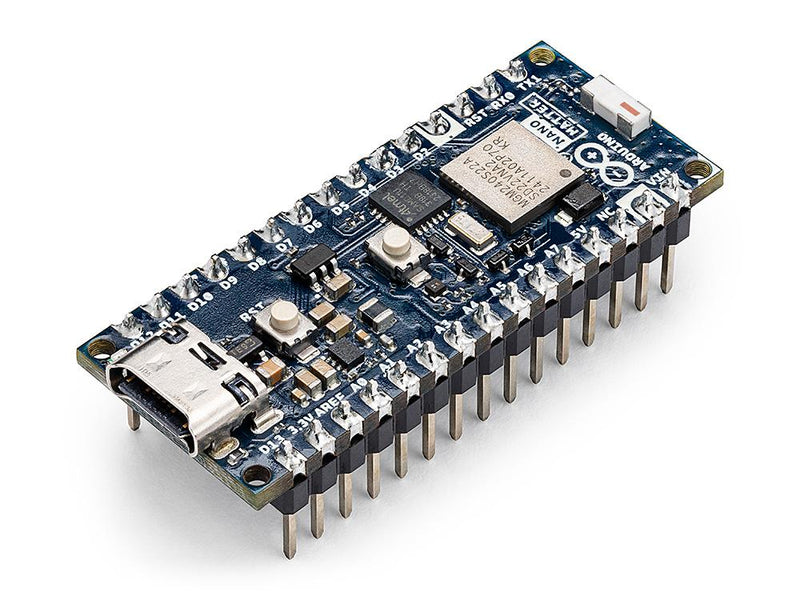

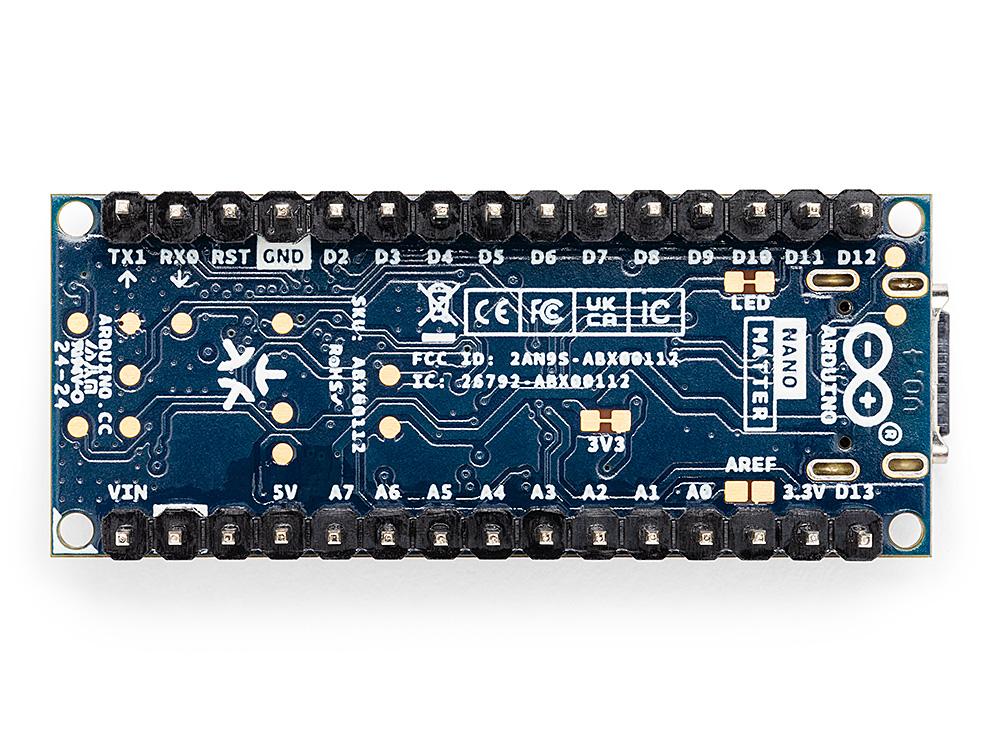

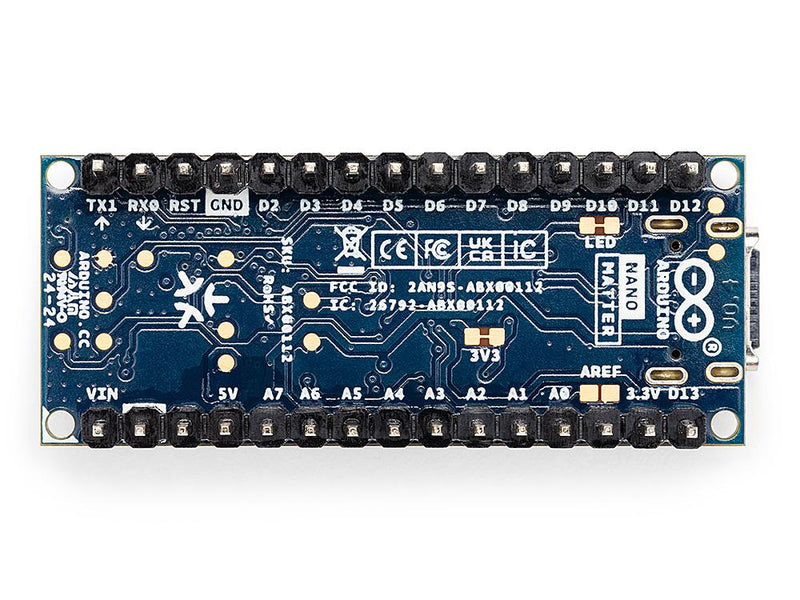

The Arduino Nano Matter with headers stems from a partnership between Arduino and Silicon Labs® to make Matter®, one of the most popular IoT connectivity standards for smart home devices, accessible to all.
Overview
Nano Matter merges Arduino’s signature ease of use with with the powerful Silicon Labs® MGM240S, wrapping the best of two worlds into one of the smallest form factors currently on the market. Experimenting with Matter-compatible devices has never been easier!
With Nano Matter, makers – at all levels of expertise – can leverage the popular Matter IoT connectivity standard to build interactive solutions, upgrade previous Nano-based projects to fully function as smart home devices, and even experiment with protocols like Zigbee® and OpenThread.
Key benefits include:
- Matter-ready for quick prototyping, thanks to hardware support and a user-friendly software layer.
- Based on the MGM240SD22VNA from Silicon Labs, a 32-bit Arm® Cortex®-M33.
- Secure Vault™ technology: enjoy industry-leading, state-of-the art security from Silicon Labs against escalating IoT threats.
- Multiprotocol connectivity enables 802.15.4 (Thread) and Bluetooth® Low Energy
- Nano-family compact size and pinout.
- Debugging over USB via SWD interface: no external debugging probe needed!
- Low energy consumption, designed for battery powered IoT devices.
Arduino IoT Cloud Compatible
Use your board on Arduino's IoT Cloud, a simple and fast way to ensure secure communication for all of your connected Things.
Need Help?
Check the Arduino Forum for questions about the Arduino Language or how to make your own Projects with Arduino. If you need any help with your product, please contact the official Arduino User Support through our Contact us page.
The Matter Color Light will be the only officially Matter-certified profile for the Nano Matter. Currently under certification.
Technical Specifications
| Microcontroller |
| Interfaces | I2C Digital I/Os SPI ADC (up to 16 bit) UART DAC PWM |
| Memory |
| Security | Secure Vault® High |
| USB | 1x USB-C connector | Extra |
|
| Connectivity |
| I/O Voltage | 3.3V |
| Antenna | On-board 2.4GHz | Input Voltage (nominal) | 5V |
| Clock Speed | 78 MHz | Dimensions | 18 mm x 45 mm |
