Arduino Mega 2560 Rev3

1 review
Price:
Sale price A$85.18   Inc. GST
SKU:
ARD-A000067
4 units Ships in 24 hours
20 units Ships in 10 to 15 days

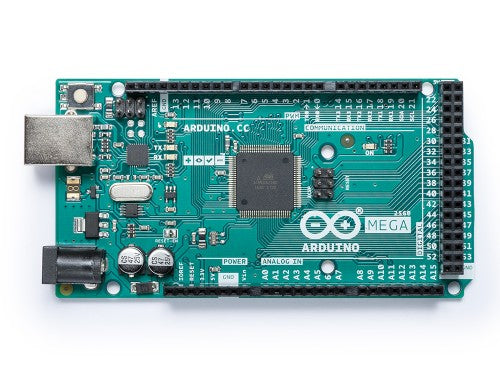

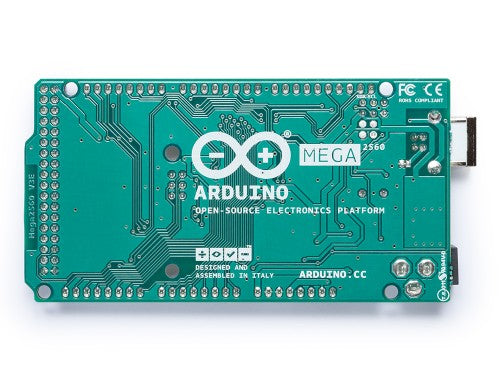

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega 2560 board is compatible with most shields designed for the Uno and the former boards Duemilanove or Diecimila.

Resources used for programming:



Here are the technical specification for Arduino Mega 2560 Rev3:

    MicrocontrollerATmega2560
    Operating Voltage5V
    Input Voltage (recommended)7-12V
    Input Voltage (limit)6-20V
    Digital I/O Pins54 (of which 15 provide PWM output)
    Analog Input Pins16
    DC Current per I/O Pin20 mA
    DC Current for 3.3V Pin50 mA
    Flash Memory256 KB of which 8 KB used by bootloader
    SRAM8 KB
    EEPROM4 KB
    Clock Speed16 MHz
    LED_BUILTIN13
    Length101.52 mm
    Width53.3 mm
    Weight37 g
