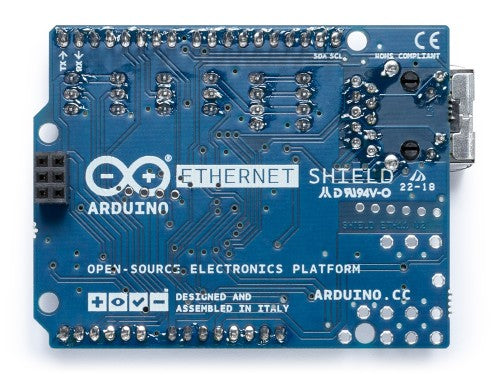

Arduino Ethernet Shield 2

Price:
Sale price A$52.36   Inc. GST
SKU:
ARD-A000024
Out Of Stock

We will notify you when this product becomes available.

The Arduino Ethernet Shield 2 connects your Arduino to the internet in mere minutes. Just plug this module onto your Arduino Board, connect it to your network with an RJ45 cable (not included) and follow a few simple steps to start controlling your world through the internet. As always with Arduino, every element of the platform – hardware, software and documentation – is freely available and open-source. This means you can learn exactly how it's made and use its design as the starting point for your own circuits. Hundreds of thousands of Arduino Boards are already fueling people’s creativity all over the world, everyday. Join us now, Arduino is you!
*Requires an Arduino Board (not included)

  • Operating voltage 5V (supplied from the Arduino Board)
  • Ethernet Controller: W5500 with internal 32K buffer
  • Connection speed: 10/100Mb
  • Connection with Arduino on SPI port

You can find your board warranty information here.

Getting Started

In the Getting Started section, you can find all the information you need to configure your board, use the Arduino Software (IDE), and start to tinker with coding and electronics.

Need Help?

The Arduino Ethernet Shield 2 allows an Arduino Board to connect to the internet. It is based on the (Wiznet W5500 Ethernet chip). The Wiznet W5500 provides a network (IP) stack capable of both TCP and UDP. It supports up to eight simultaneous socket connections. Use the Ethernet library to write sketches that connect to the Internet using the Shield. The Ethernet Shield 2 connects to an Arduino Board using long wire-wrap headers extending through the Shield. This keeps the pin layout intact and allows another Shield to be stacked on top of it.

The most recent revision of the board exposes the 1.0 pinout on rev 3 of the Arduino UNO Board.

The Ethernet Shield 2 has a standard RJ-45 connection, with an integrated line transformer and Power over Ethernet enabled.

There is an onboard micro-SD card slot, which can be used to store files for serving over the network. It is compatible with the Arduino Uno and Mega (using the Ethernet library). The onboard micro-SD card reader is accessible through the SD Library. When working with this library, SS is on Pin 4. The original revision of the Shield contained a full-size SD card slot; this is not supported.



Note that because the W5500 and SD card share the SPI bus, only one at a time can be active. If you are using both peripherals in your program, this should be taken care of by the corresponding libraries. If you're not using one of the peripherals in your program, however, you'll need to explicitly deselect it. To do this with the SD card, set pin 4 as an output and write a high to it. For the W5500, set digital pin 10 as a high output.

  • The Shield provides a standard RJ45 Ethernet jack.
  • The reset button on the Shield resets both the W5500 and the Arduino Board.
  • The Shield contains a number of information LEDs:
  • ON: indicates that the Board and Shield are powered
  • 13 is the Arduino standard built in LED
  • ACT: flashes when RX or TX activity is present
  • LINK: indicates the presence of a network link and flashes when the Shield transmits or receives data

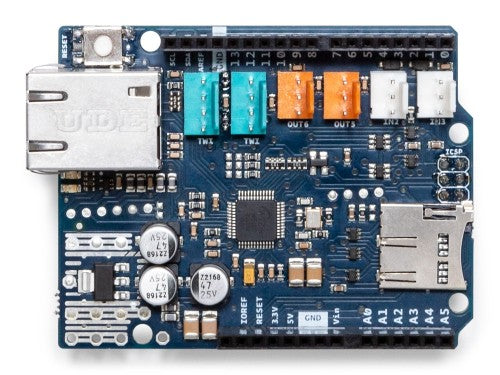

In this picture below we have tagged the yellow ACT, the green LINK,, the 13 Built in LED and the ON LED.


The LEDs of the Ethernet Shield V2





This shield also hosts Tinkerkit compatible connectors as follows:

  • 2 TinkerKit connectors for two Analog Inputs (in white), connected to A2 and A3.
  • 2 TinkerKit connectors for two Aanlog Outputs (in orange in the middle), connected to PWM outputs on pins D5 and D6.
  • 2 TinkerKit connectors for the TWI interface (in white with 4 pins), one for input and the other one for output.

OSH: Schematics

Arduino Ethernet Shield 2 is open-source hardware! You can build your own board using the following files:

EAGLE FILES IN .ZIP SCHEMATICS IN .PDF

Previous Version

Do you own a past version of this product? Check the Arduino Ethernet Shield V1 product page.
