The Arduino Due is the first Arduino board which is based on a 32-bit ARM core microcontroller. It has 54 digital input/output pins out of which 16 analog inputs, 2 DAC and 2 CAN. It is perfect board for making powerful larger scale Arduino projects.

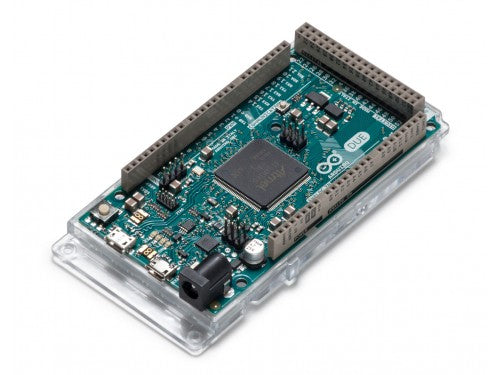

The Arduino Due is a microcontroller board based on the Atmel SAM3X8E ARM cortex-M3 CPU.It is the first Arduino board based on a 32-bit ARM core microcontroller. It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button.
Resources used for programming:
- Download software :
- Getting starter guide:
- Step by step examples:
- Programming reference:
Here are the technical specification for Arduino Due:
|Input Voltage (recommended)||7-12V|
|Input Voltage (limits)||6-16V|
|Digital I/O Pins||54 (of which 12 provide PWM output)|
|Analog Input Pins||16|
|Analog Output Pins||2 (DAC)|
|Total DC Output Current on all I/O lines||130 mA|
|DC Current for 3.3V Pin||800 mA|
|DC Current for 5V Pin||800 mA|
|Flash Memory||512 KB all available for the user applications|
|SRAM||96 KB (two banks: 64KB and 32KB)|
|Clock Speed||84 MHz|
