Analog Feedback Micro Servo - Plastic Gear

Price:
Sale price A$20.01   Inc. GST
SKU:
ADA1449
43 units Ships in 7 to 10 days

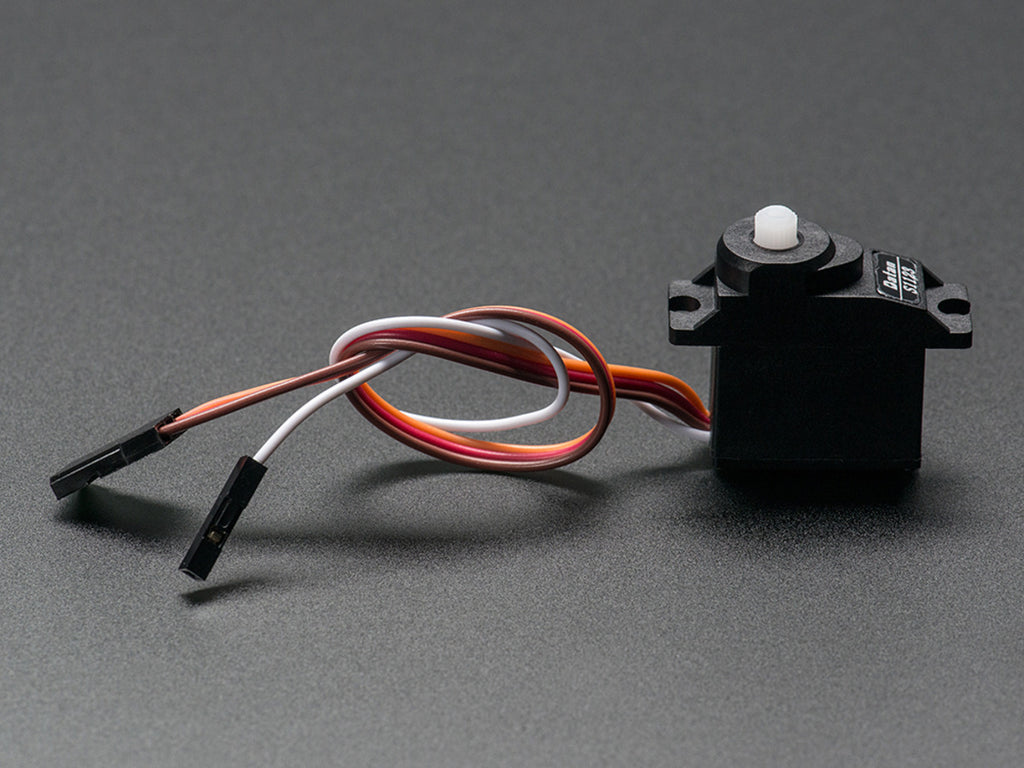

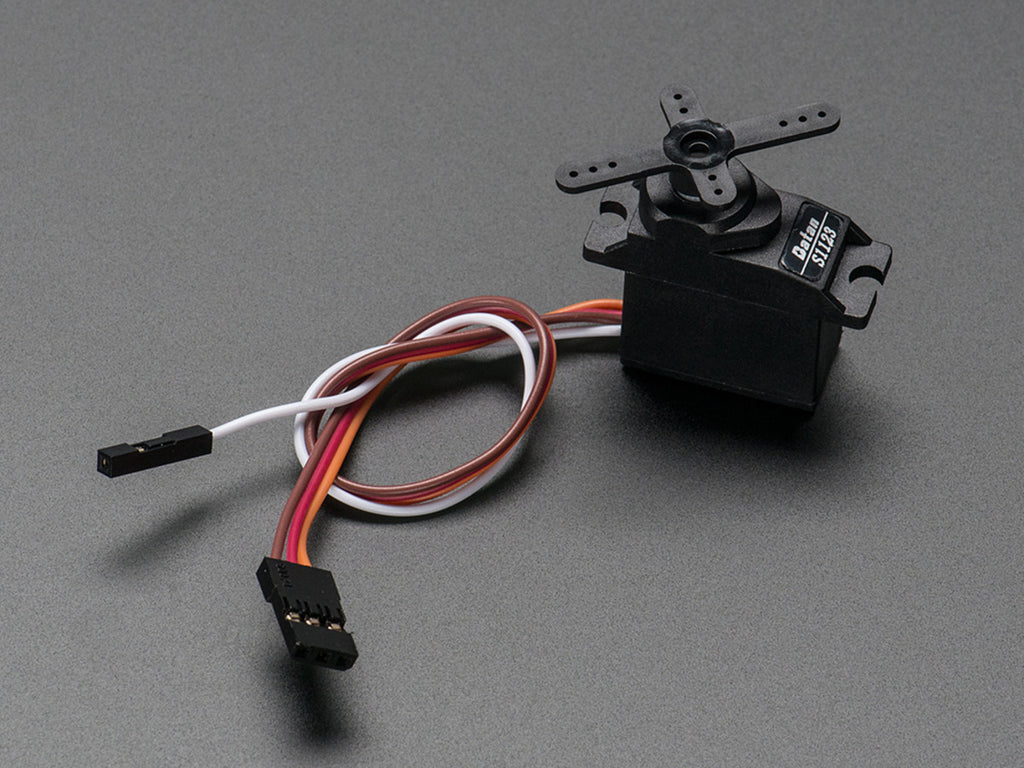

It looks like a micro servo, it acts like a micro servo, but it's more than just a micro servo! We got a factory to custom-make these classic 'micro' sized hobby servos with a twist - the feedback (potentiometer wiper) line is brought out to a fourth white wire. You can read this wire with an analog input such as those on an Arduino, to get the servo's position. That information can be used in robotics to improve stability or even allow 'recording' of servo motion.

Note that the default servo pulse widths (usually 1ms to 2ms) may not give you a full 180 degrees of motion. In that case, check if you can set your servo controller to custom pulse lengths and try 0.75ms to 2.25ms. You can try shorter/longer pulses but be aware that if you go too far you could break your servo!

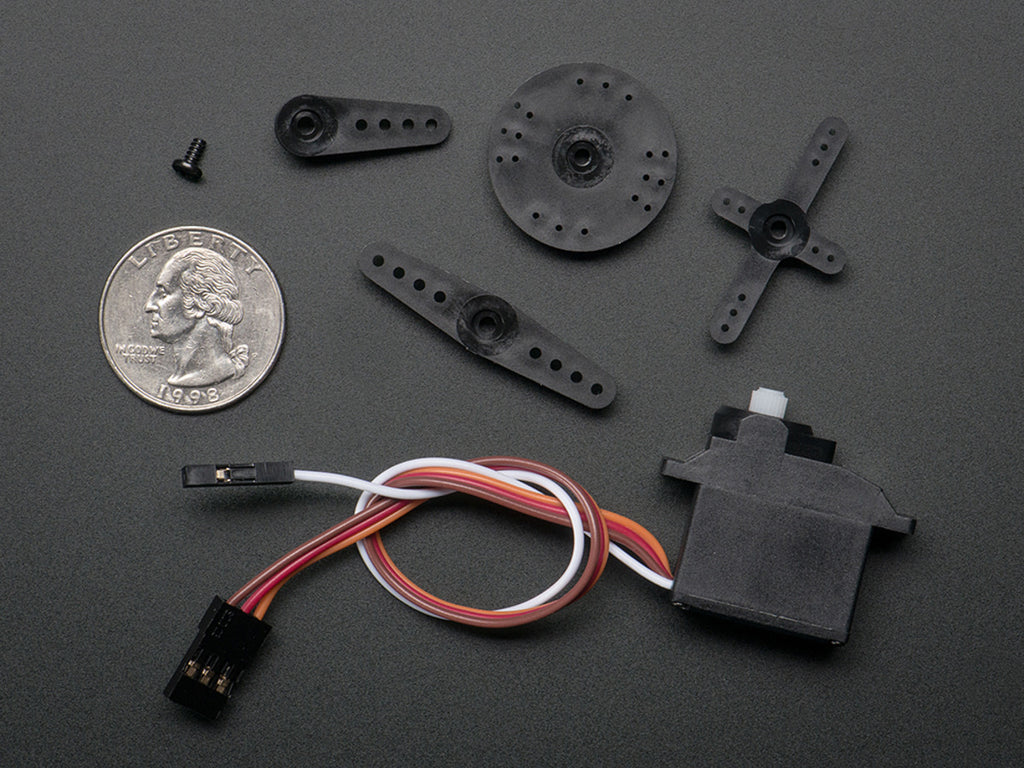

Check out our example Arduino sketch which demonstrates how to record motion data to the EEPROM and then play it back when a button is pressed. Comes with a range of horns as seen above.



Analog Feedback Micro Servo - Plastic Gear (12:41)



Technical Details

  • Dimensions: 11.57mm / 0.45" x 22.75mm / 0.89" x 29.45mm / 1.15"
  • Max Dimensions: 11.57mm / 0.45" x 32.71mm / 1.28" x 31.76mm / 1.25"
  • Wire length (at least): 131.67mm / 5.18" long
  • Torque: 22.24 oz*in / 1.6 kg*cm @ 6V
  • Speed: 0.1 sec/60° @ 6V
  • Weight: 13.82 grams
  • Dual ball bearing
  • Plastic gearbox

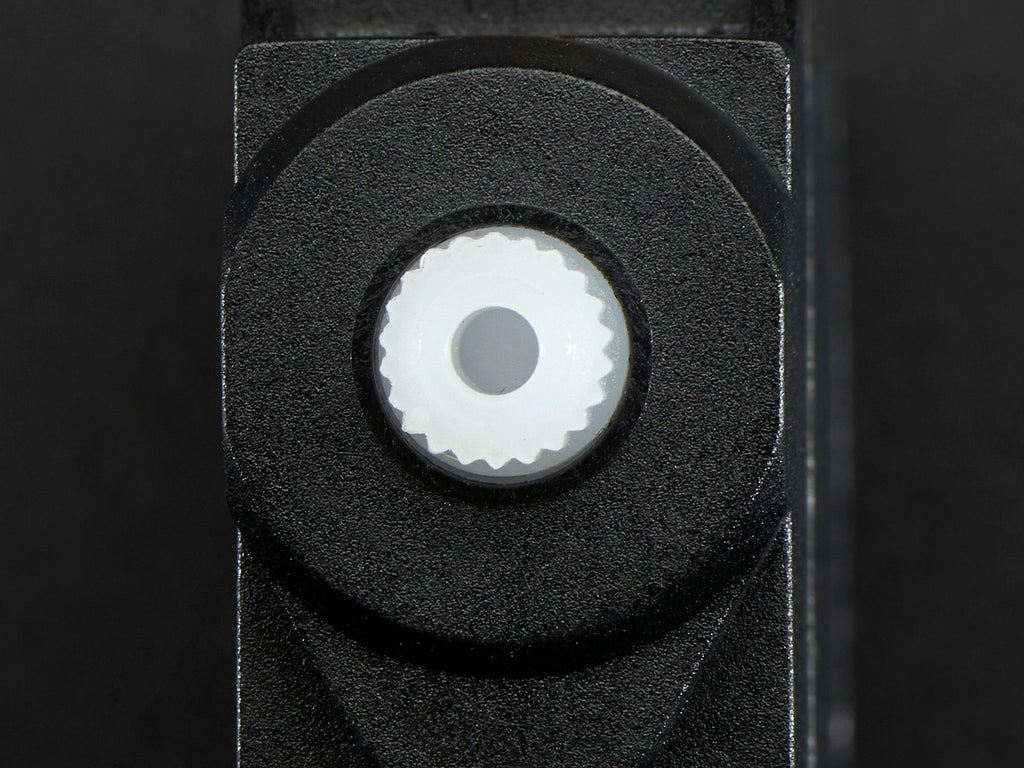

  • Spline Count: 22
    RoHS 2 2011 65 EU Compliant
