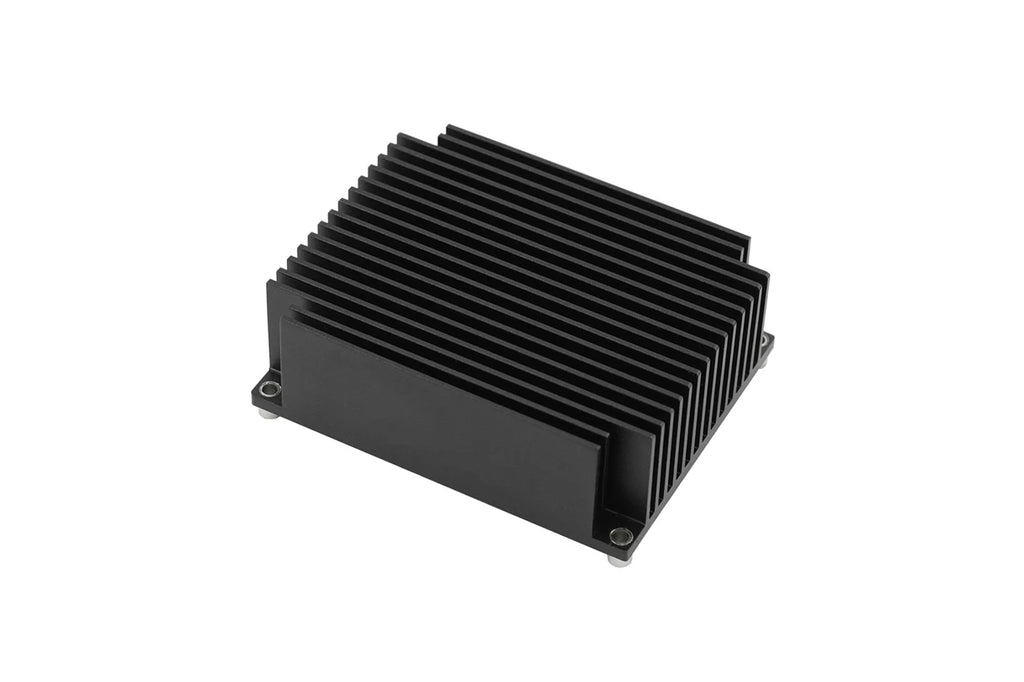

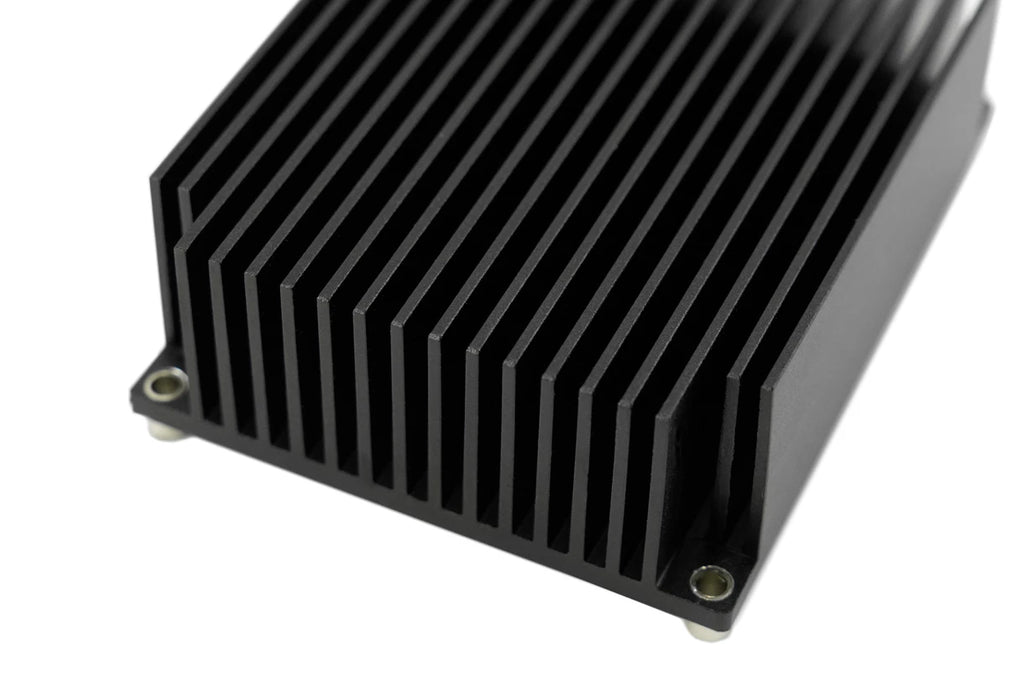

The LattePanda IOTA Fanless Heatsink is a passive cooling solution specifically designed for the LattePanda IOTA. Made from high-quality aluminum alloy with a thickened design, it significantly enhances thermal capacity and heat dissipation area through its expanded volume and precision-machined fins.
Coupled with the included high-performance thermal paste, it ensures efficient heat transfer from the processor and uniform distribution across the entire heatsink.
Its fully passive, zero-noise construction and robust build provide reliable cooling stability for the LattePanda IOTA during continuous high-performance operation.
Installation steps:
1. Apply an even layer of thermal paste to the processor.
2. Mount it onto the back of the LattePanda board and secure with screws and standoffs.
Figure: LattePanda IOTA and Fanless Heatsink
Note:
- 1. This fanless heatsink is designed exclusively for use with the LattePanda IOTA.
- 2. When installing or removing the heatsink, the LattePanda IOTA must be powered off.
- 3. While in use, please avoid direct contact between your skin and the heatsink to prevent burns.
Specification:
- Compatible: LattePanda IOTA
- Heat Dissipation Capacity: TDP 10W, Ambient Temperature 25, Heatsink Temperature Rise 40°C

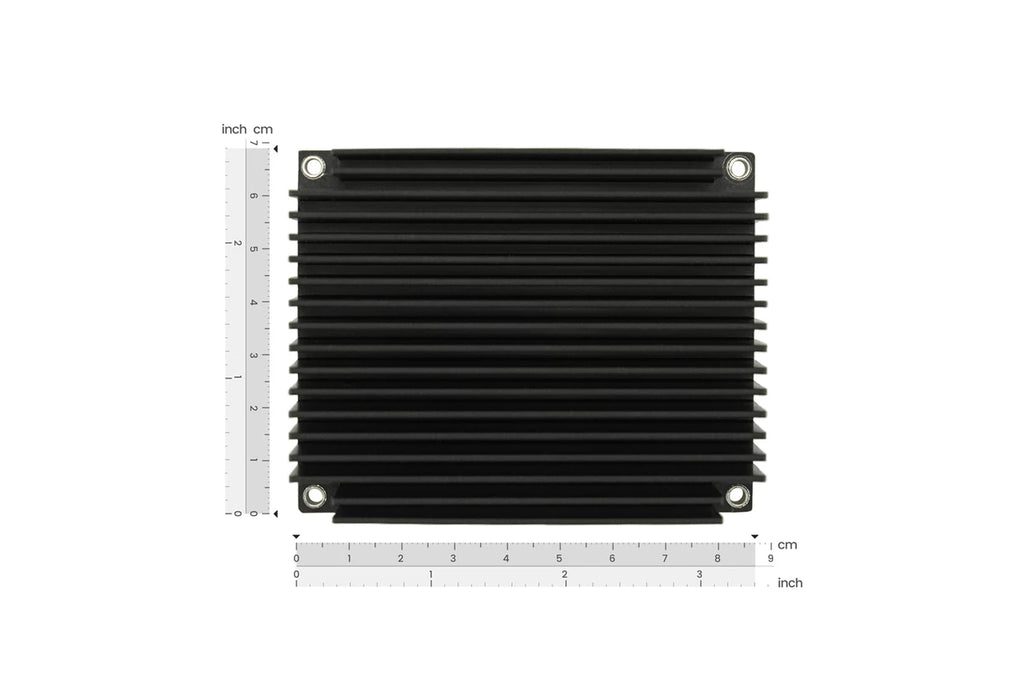

- Dimensions: 87.0*69.4*31.5mm
- Material: Aluminum Alloy
- Weight: 203g (Heatsink Only)
Documents:

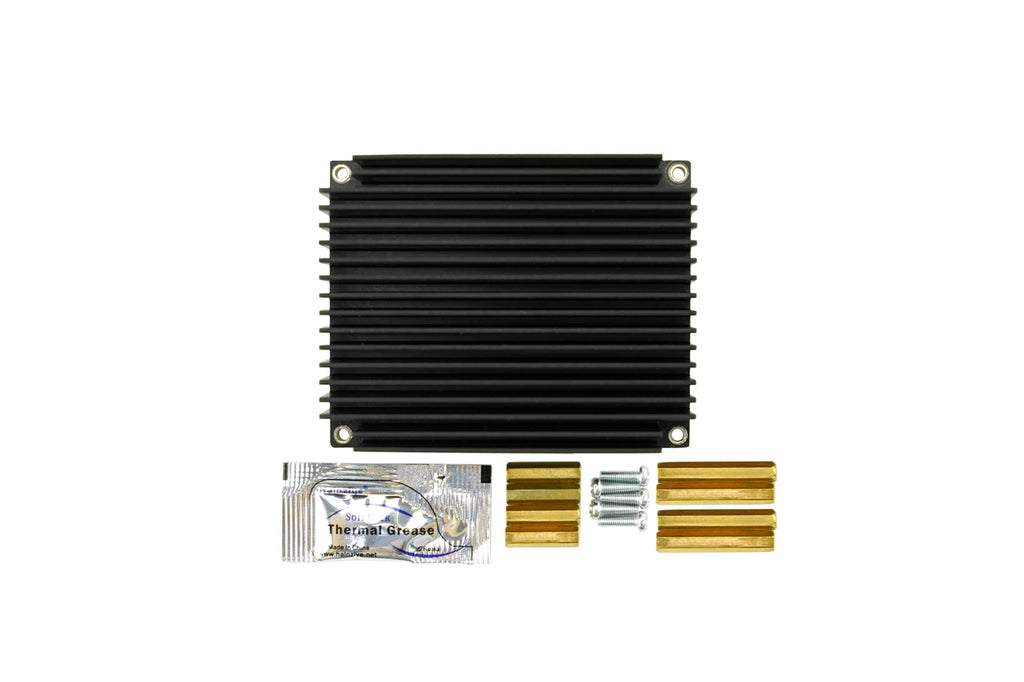

Product Includes:
- LattePanda IOTA Fanless Heatsink x1
- Heatsink Accessory Kit x1
