ADXL377 - High-G Triple-Axis Accelerometer (+-200g Analog Out)

Price:
Sale price A$50.18   Inc. GST
SKU:
ADA1413
Out Of Stock

We will notify you when this product becomes available.

Hey rocket man (burnin' out your fuse out there alone) ever wonder how fast you're rocketing? The ADXL377 +-200g 3-axis accelerometer may be able to tell the answer. You read that right, this accelerometer can sense up to 200g's of force. Incredible! Not surprisingly, we couldn't say "no" to a breakout for this sensor.

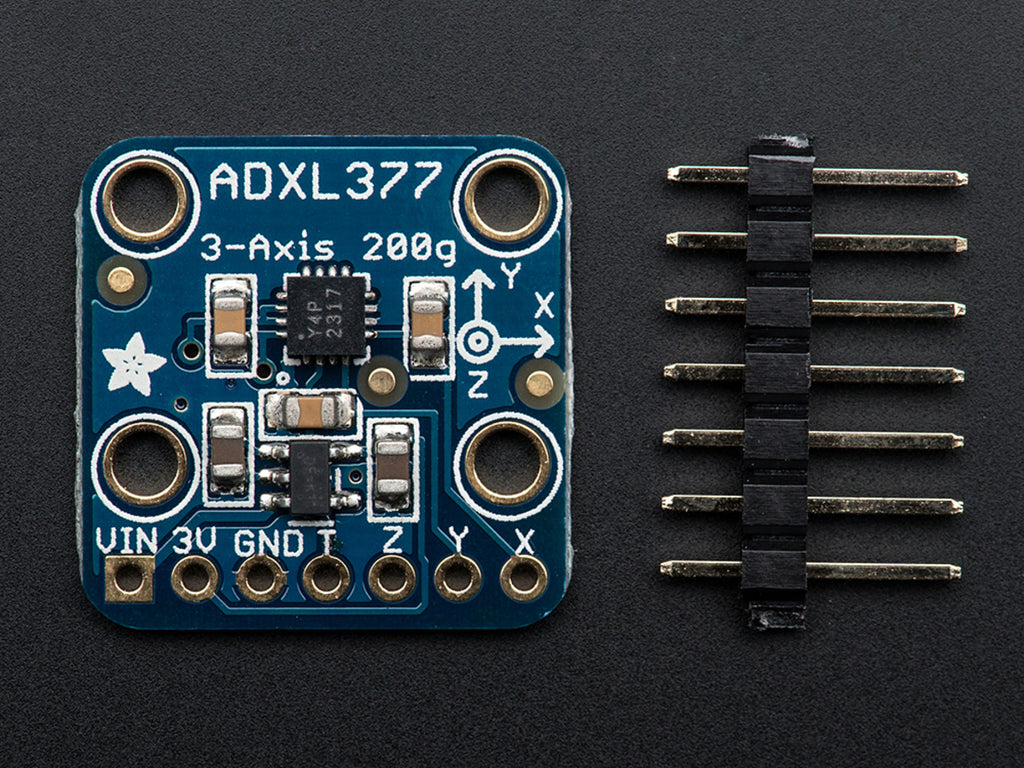

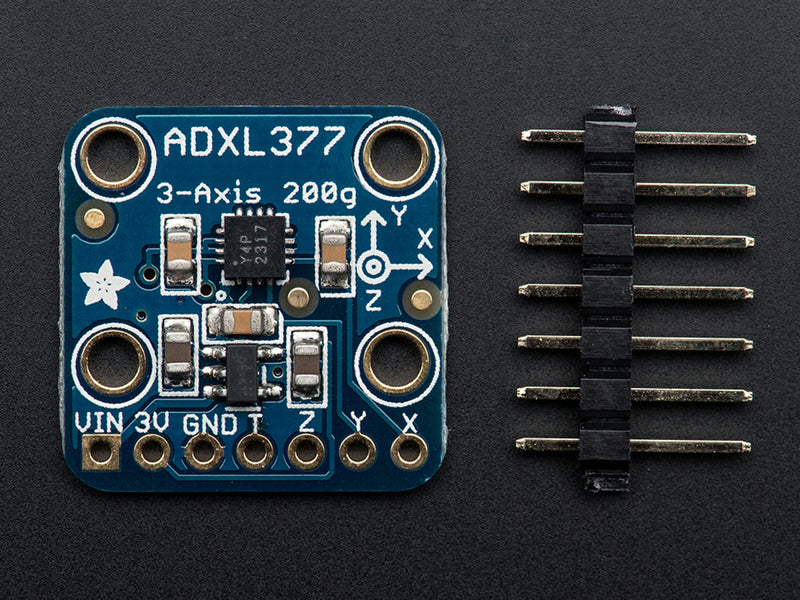

The sensor is soldered onto a PCB with four mounting holes (in case you don't remember, this is accelerating at up to 200g's!) and a 3.3V regulator so you can use it with 5v logic such as an Arduino. We also add 0.01uF filter caps for 500Hz output bandwidth.

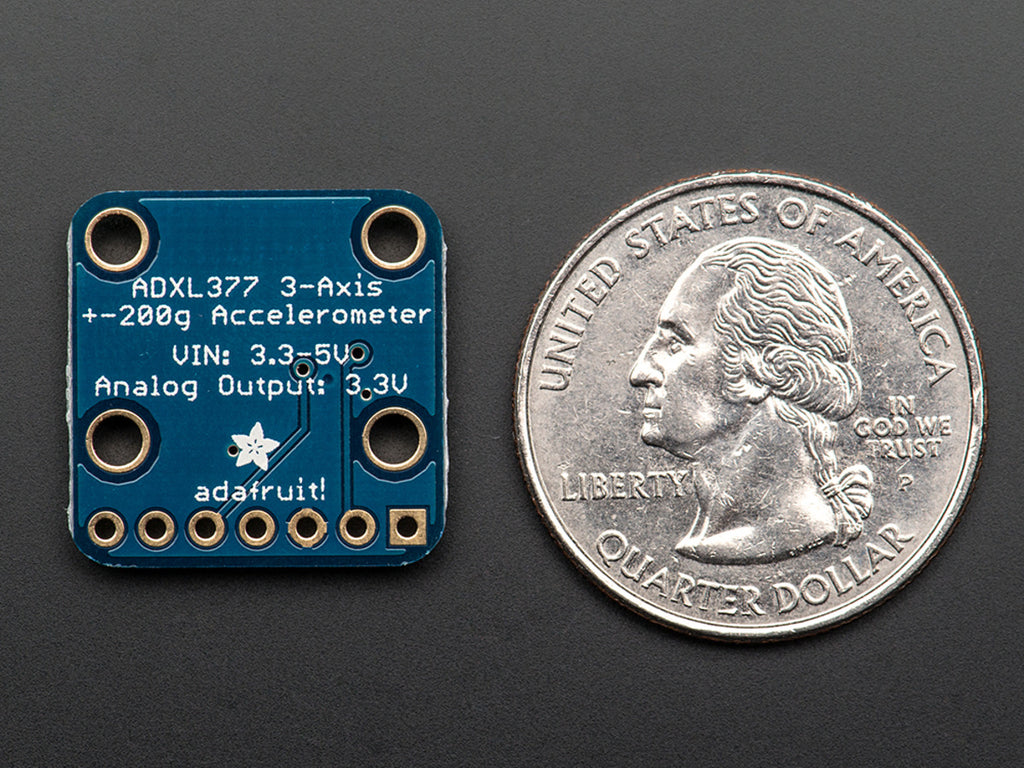

This breakout comes with 3 analog outputs for X, Y and Z axis measurements on a 0.75"x0.75" breakout board. The analog outputs are ratiometric: that means that 0g measurement output is always at half of the 3.3V output (1.65V), -200g is at 0v and 200g is at 3.3V with full scaling in between.

Fully assembled and tested. Comes with 8 pin 0.1" standard header in case you want to use it with a breadboard or protoboard. Four 2.5mm (0.1") mounting holes for easy attachment.

The XYZ filter capacitors are 0.01uF for a 500 Hz bandwidth

See the ADXL377 webpage for datasheets and more

ADXL377 - High-G Triple-Axis Accelerometer (+-200g Analog Out) (3:44)



Technical Details

Dimensions (without header):

  • Length:19mm/0.75in
  • Width:19mm/0.75in
  • Height:3.14mm/0.12in
  • Weight:1.27g/0.04oz

ADXL377 Datasheet, EagleCAD PCB files, and Fritzing object available in the product tutorial

    RoHS 2 2011 65 EU Compliant
    RoHS 2 2015 863 EU Compliant


    Learn

    ADXL335, ADXL326 and ADXL377 Accelerometer Quickstart
