Adjustable Step-Down DC/DC Converter (1.0V - 17V/1.8A)

$9.33 AUD Inc. GST


SKU SS106990007
Ships in 24 hours 1 units

increment
decrement
decrement increment

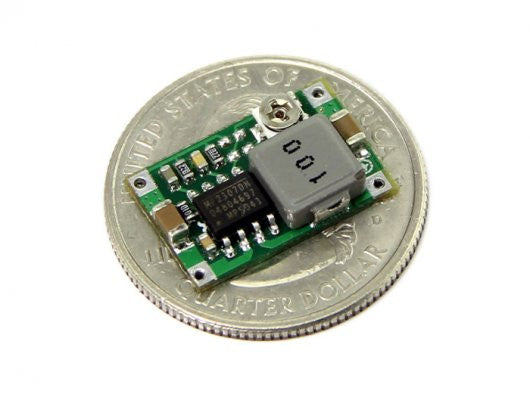

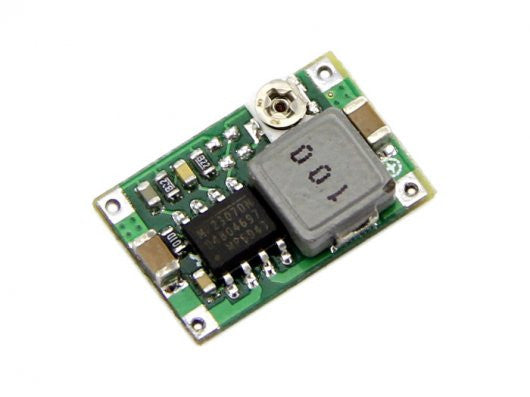

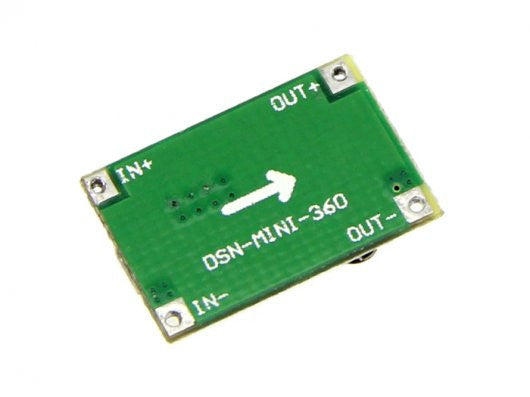

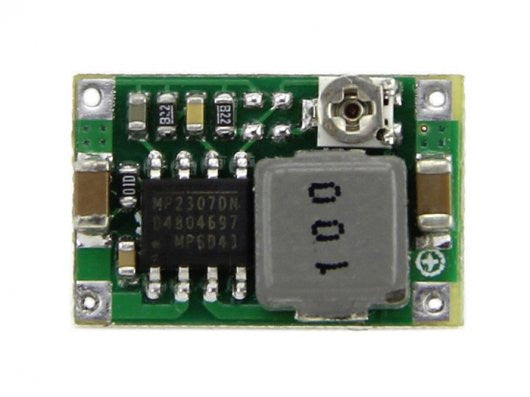

This DC/DC step-down voltage converter is based on MP2037, it converts input voltage between 4.5V and 23V into a smaller voltage between 1V and 17V, capable of driving a 1.8A load with excellent line and load regulation.
Note: Input must be >1.5V higher than output. High current output, the inductance will be hot.
Feature:
  • Wide 4.5V to 23V Operating Input Range
  • Up to 95% Efficiency
  • Fixed 340KHz Frequency
  • High-Efficiency Pulse Skipping Mode for Ceramic Capacitor Stable
  • Internally Set Current Limit without a Current Sensing Resistor
  • Cycle-by-Cycle Over Current Protection
  • Input Under Voltage Lockout
Specification:
  • Input Voltage: 4.5V-23VDC
  • Output Voltage: 1V-17VDC
  • Continuous Output Current: Max. 1.8A
  • Perk Output Current: 3A
  • Max. Efficiency: 95%
  • Output Ripple: <30mV
  • Switching Frequency: 340kHz
  • Operating Temperature: -40℃ to +85℃
  • Dimensions: 17mm*11mm*3.8mm(l*w*h)
