Adafruit I2S Audio Bonnet for Raspberry Pi

Price:
Sale price A$20.01   Inc. GST
SKU:
ADA4037
Out Of Stock

We will notify you when this product becomes available.

Description

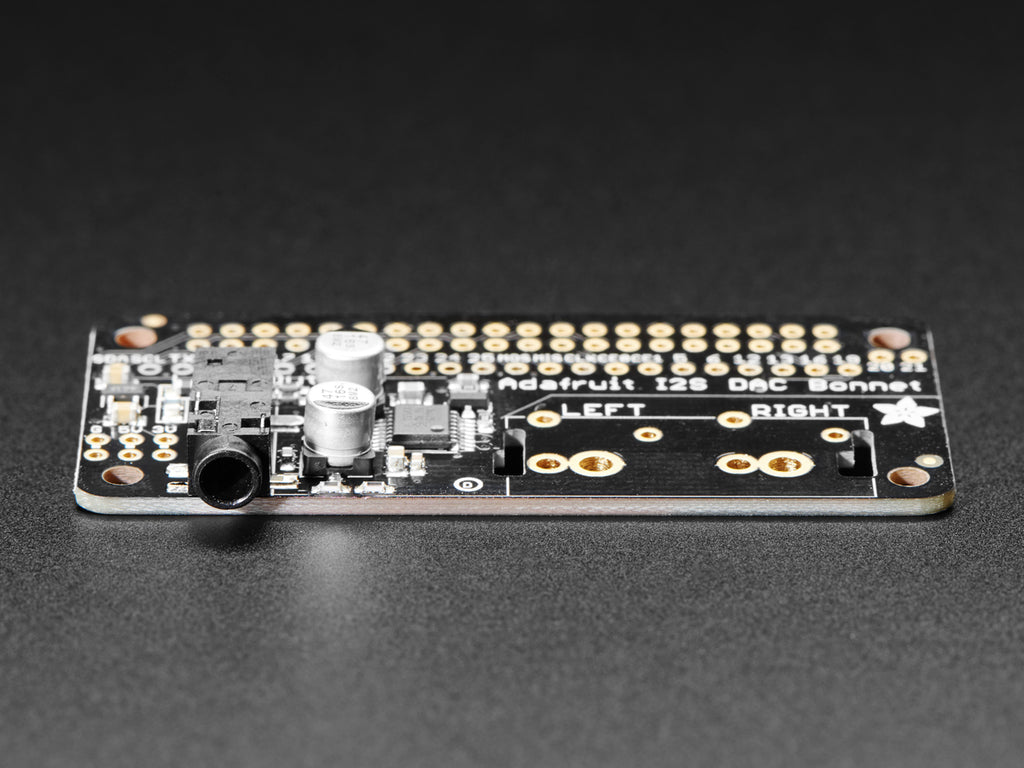

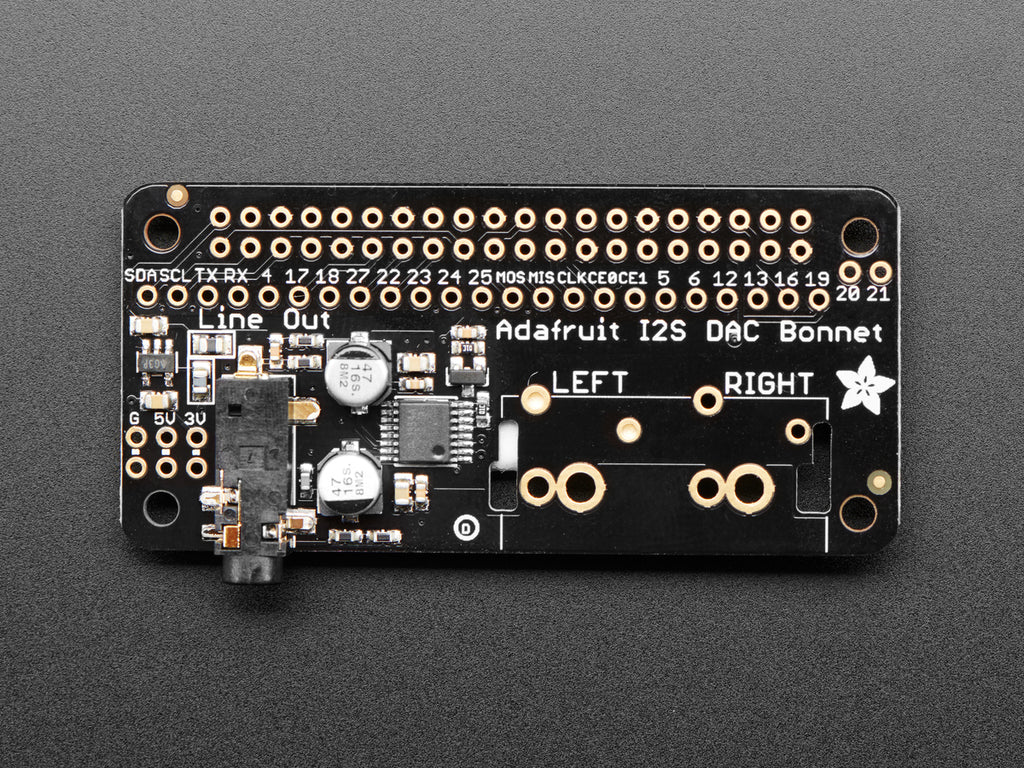

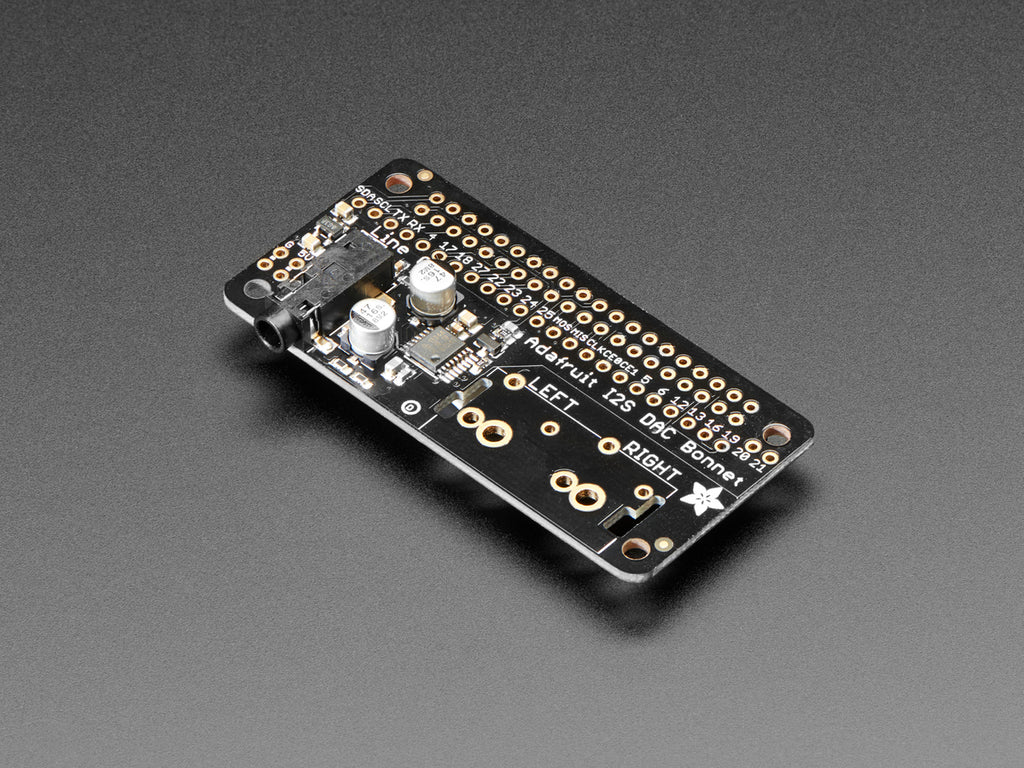

Add some easy-listenin' tunes to your Raspberry Pi using this basic audio bonnet. It'll give you stereo line out from a digital I2S converter for a good price, and sounds nice to boot! This bonnet features the UDA1334A I2S Stereo DAC, a perfect match for any I2S-output audio interface. It's affordable but sounds great - music to our ears.

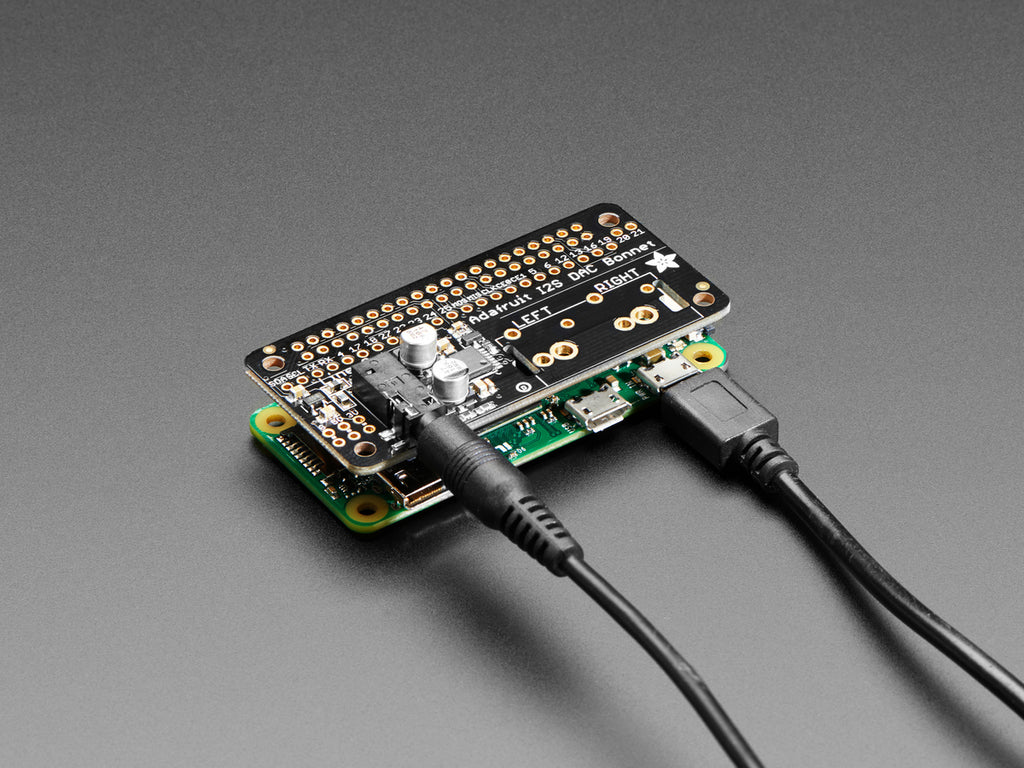

It's the exact same size as a Raspberry Pi Zero but works with any and all Raspberry Pi computers with a 2x20 connector - A+, B+, Zero, Pi 2, Pi 3, etc. We've tested it out with Raspbian (the official operating system) and Retropie.

This Bonnet uses I2S a digital sound standard, so you get really crisp audio. The digital data goes right into the amplifier so there's no static like you hear from the onboard headphone jack. And it's super easy to get started. Just plug in any line level output into powered speakers or audio system. You can plug in headphones but you'll get some distortion - so its best used into something that is expecting line level out

Each order comes as a fully tested and assembled PCB with a 2x20 socket connector. No soldering required! Plug it right onto your pi, install the script and reboot. Pow, you're makin' lovely sounds. Want an RCA jack output? We have a solder-in-able stereo jack as a separate component

Pi Zero, audio cable & speakers not included!



Technical Details

Dimensions (including audio jack): 65.3 x 33.5 x 11mm

Product Weight: 9.2g / 0.3oz

    RoHS 2 2011 65 EU Compliant
    RoHS 2 2015 863 EU Compliant
