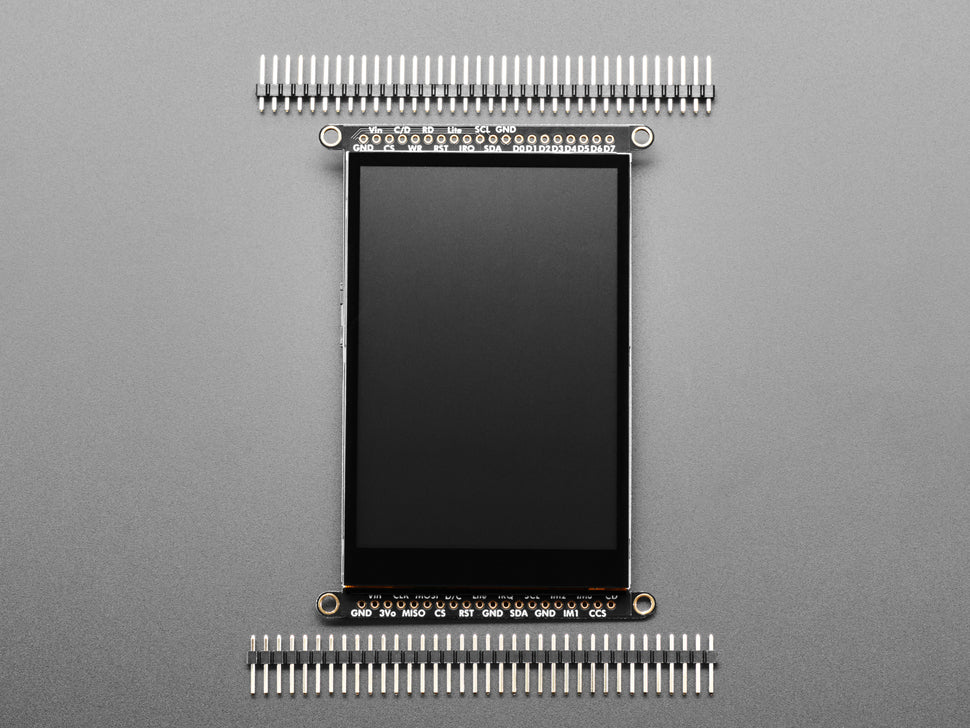

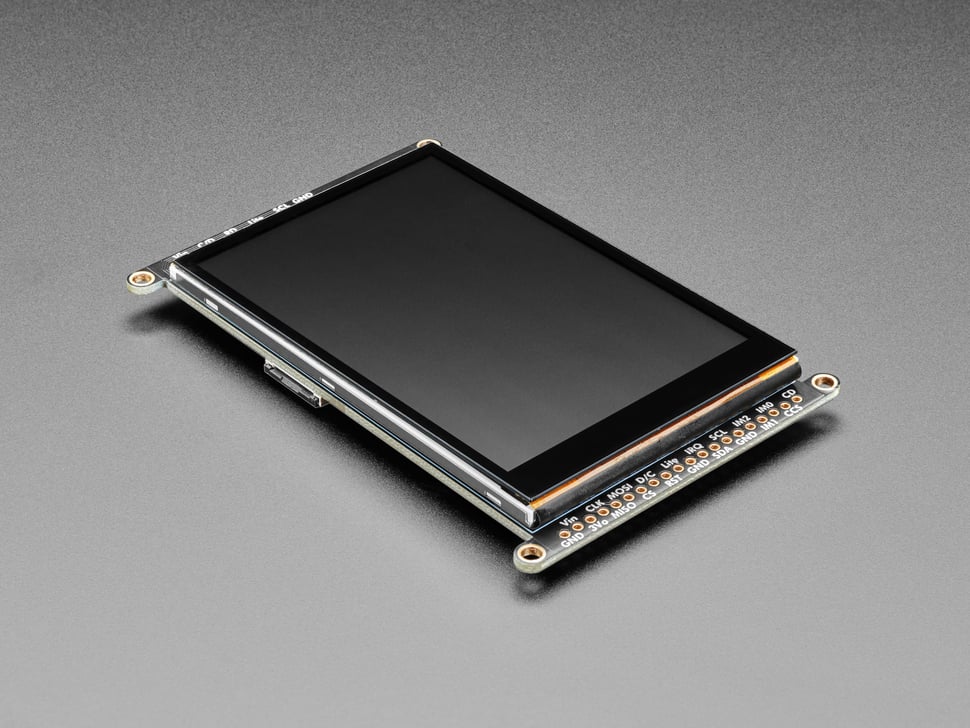

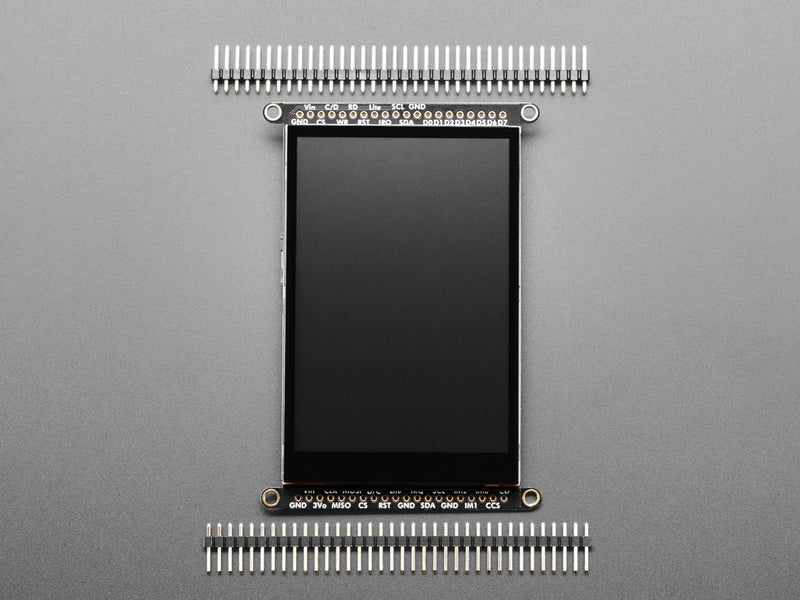

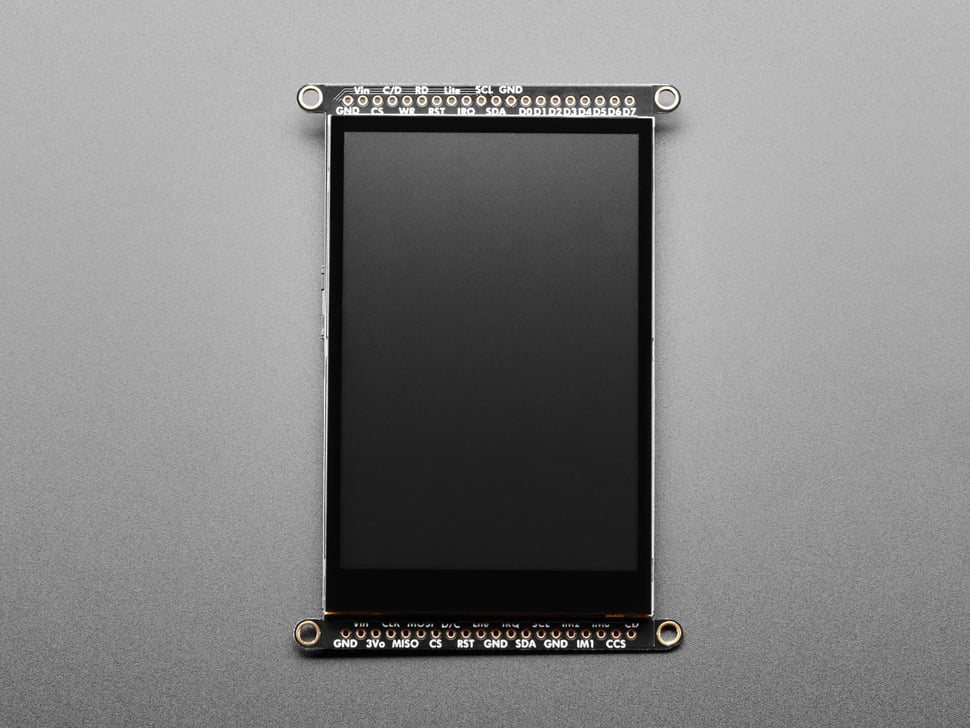

Bring a splash of color to your project with this 3.5" TFT touchscreen. Offering 6 white-LED backlighting, 480x320 pixels with individual RGB pixel control, this display far surpasses the black & white 128x64 display, and doubles the resolution of the 2.8" TFT. Enjoy added convenience with the attached capacitive touchscreen, allowing you to detect finger presses anywhere on the screen.

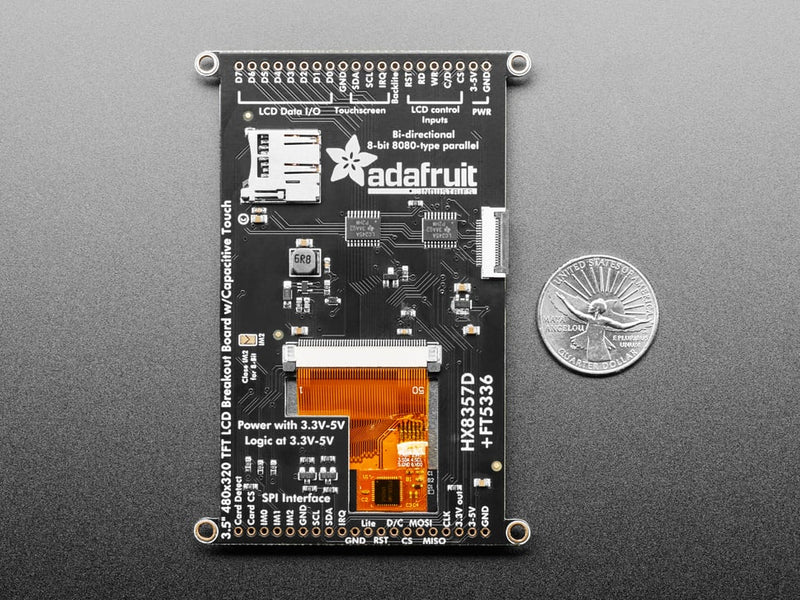

This display contains an inbuilt controller with RAM, allowing the microcontroller to do minimal work. It can be used in either 8-bit or SPI mode, each requiring different pin numbers: 8 digital data lines and 4 or 5 control lines (for 8-bit mode) or 5 total (for SPI mode). Note: 8-bit mode is faster than SPI mode.
In addition, a set of I2C pins are required for the touch screen communication. If you're feeling fancy there's an IRQ pin for the touch screen detection. If you're using just the SPI and I2C interfaces, you can use the built in EYESPI connector for quick interfacing without a lot of wires!
Of course, we wouldn't just leave you with a datasheet and a "good luck!". Check out our detailed tutorial for wiring, test and example code! For 8-bit interface fans we've written a full open source graphics library that can draw pixels, lines, rectangles, circles, text, and more. For SPI users, we have a library as well, its separate from the 8-bit library since both versions are heavily optimized.
We also have a touch screen library that detects up to 5 multi-touch points and example code to demonstrate all of it.
