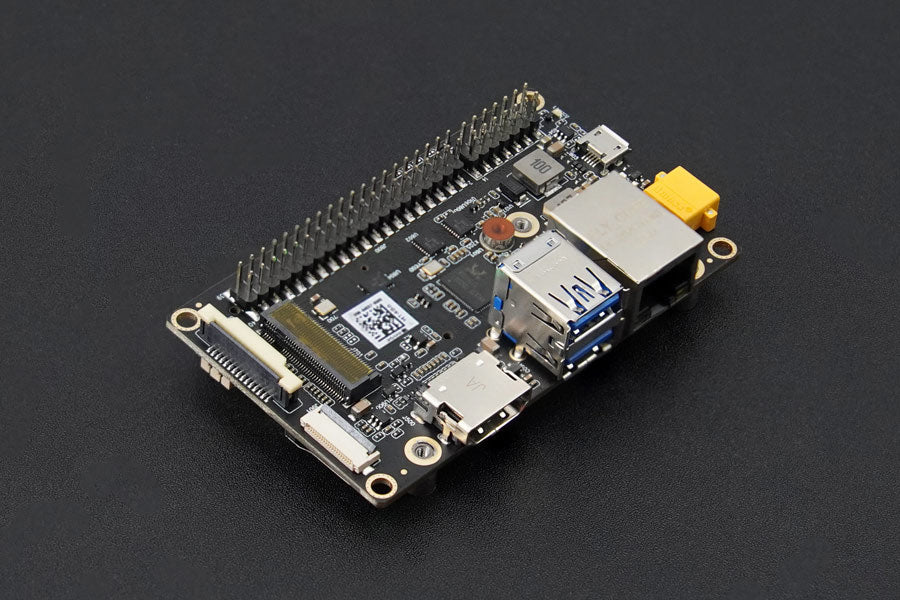

A603 Carrier Board for NVIDIA Jetson Orin NX / Nano

Price:
Sale price A$353.76   Inc. GST
SKU:
DF-DFR1123
10 units Ships in 7 to 10 days

This is a carrier board compatible with the NVIDIA Jetson Orin NX/Nano core module. It is equipped with a Gigabit Ethernet (10/100/1000) port, enabling fast data transfer. It features two USB 3.0 Type-A ports, one USB 3.0 0.5mm pitch 20P ZIF, and one USB 2.0 micro AB port, providing versatile connectivity options.

This carrier board supports the NVIDIA Jetson Orin NX/Nano and offers a rich array of peripheral interfaces. With a 15-pin CSI camera connector and HDMI port, users can capture and display high-quality video content. Storage and wireless connectivity can be expanded through the onboard M.2 Key M and M.2 Key E interfaces. It also includes a fan interface (5V PWM) and an RTC connector.

It supports a wide voltage input range of 9-20V DC and can operate in temperatures ranging from -25°C to 65°C. With its compact size of 87x52x26mm, it can be seamlessly integrated into various applications, providing flexibility and ease of use.

Interface diagram of NVIDIA Jetson Orin NX/Nano carrier board (A603)

Interface diagram of NVIDIA Jetson Orin NX/Nano carrier board (A603)

Interface diagram of NVIDIA Jetson Orin NX/Nano carrier board (A603)


Applications:

  • Home robots
  • UAVs
  • Unmanned boats
  • Robotics and drones
  • Industrial automation and control systems
  • Digital signage and media players
  • IoT (Internet of Things) and embedded systems
  • Education and prototyping projects

Specification:



  • Compatibility: Jetson Orin NX/Nano
  • Power Requirements: +9V to +19V DC Input@3A
  • Network: Gigabit Ethernet Connector (10/100/1000)
  • Video Output: HDMI
  • USB
               USB 3.0 Type A (Integrated USB 2.0)
               USB 3.0 0.5mm pitch 20P ZIF
               USB 2.0 15 Pin
               USB 2.0 Micro-AB
  • M.2 KEY E PCIE: PCIE 2230 SIZE
  • M.2 KEY M: M.2 KEY M (NVMe SIZE 2242 SSD)
  • Serial: CAN
  • Camera: CSI CAMERA
  • I2S: I2S (3.3V Level)
  • Misc
               I2C Link(+3.3V I/O×2
               GPIO ×6
               UART ×1
               SPI ×2
  • Dimension: 87mm*52mm*26mm
  • Weight: 100g

Product Includes:

  • Jetson Orin NX/Nano Carrier Board (A603) × 1
  • Power Adapter 90W 19V (Power cable not included) × 1
