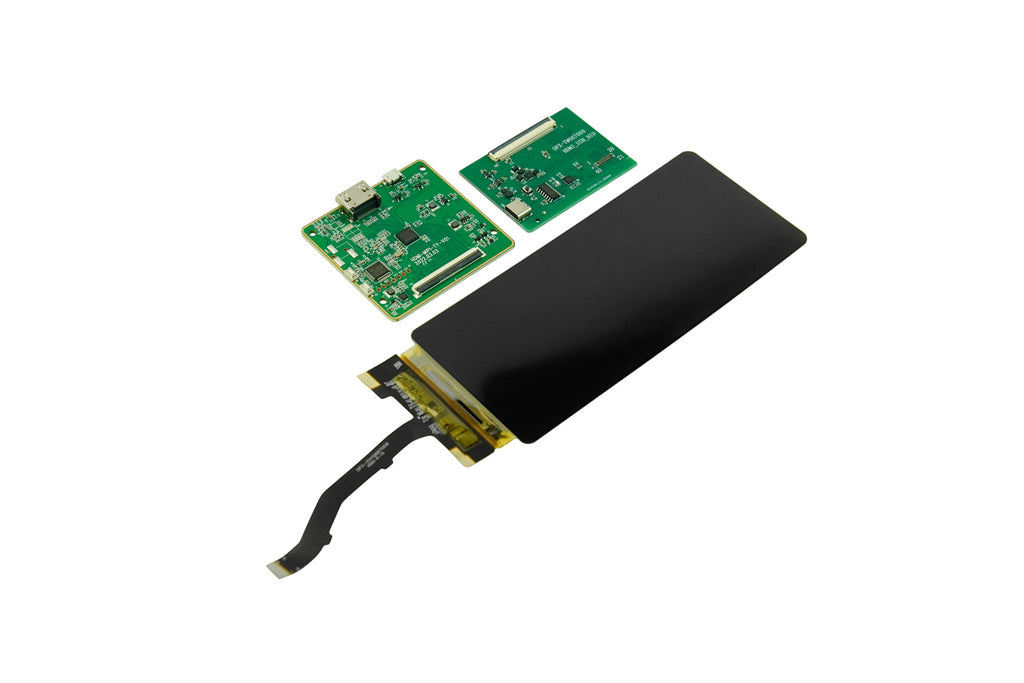

This 6.67-inch flexible AMOLED display leverages a bendable substrate that maintains a maximum thickness of just 1.2mm, allowing designers to create curved and form-fitting prototypes that rigid panels cannot realize. Compared with a typical LCD, this AMOLED panel is self-emissive and does not require a backlight, enabling a thinner structure, deeper blacks, and higher contrast. It is also based on a flexible substrate, making it suitable for curved or form-fitting prototypes where rigid LCDs are difficult to integrate.

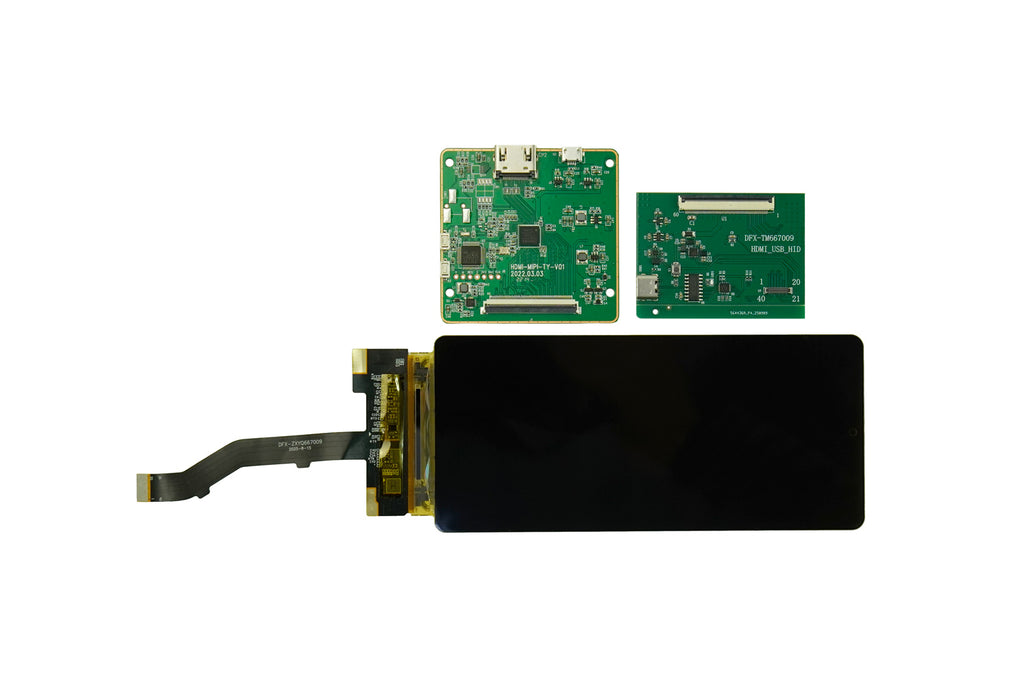

To streamline early development, the display kit includes a dedicated MIPI-to-HDMI driver board that equips the module with a standard HDMI interface. This provides plug-and-play compatibility with popular single-board computers (LattePanda IOTA, MU, Alpha, 3 Delta, Sigma, Raspberry Pi 4, and Raspberry Pi 5), dramatically reducing the time required for initial display-effect verification and system integration.
Ultra-Thin, Bendable Architecture

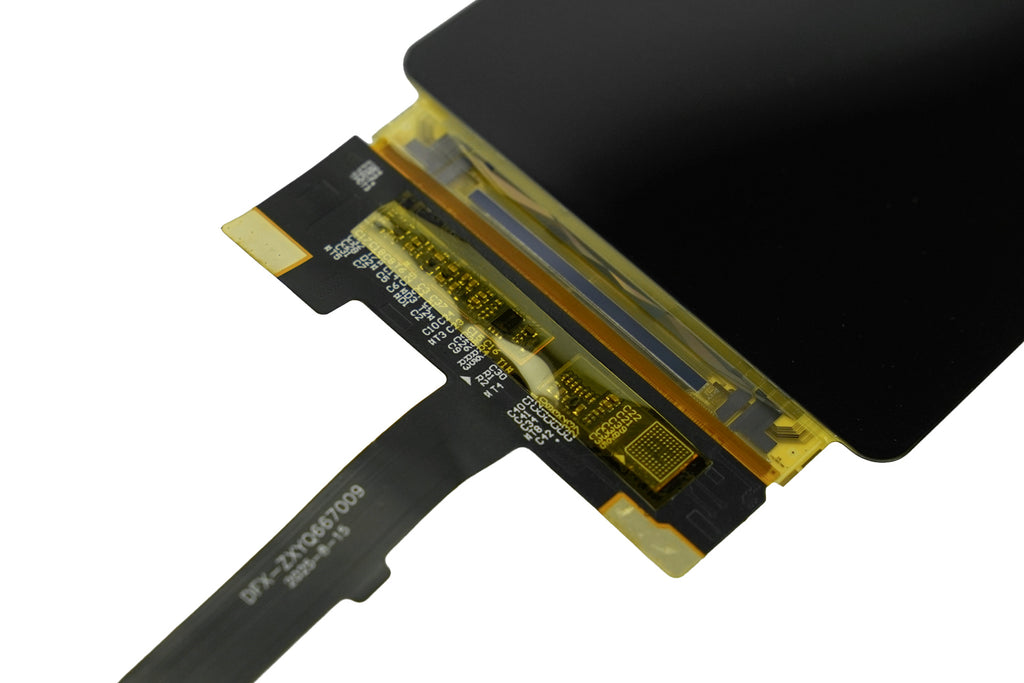

This flexible AMOLED display utilizes an advanced substrate that can bend to fit non-flat surfaces. This extreme thinness opens new possibilities for curved prototypes, wearables and human-machine interfaces.

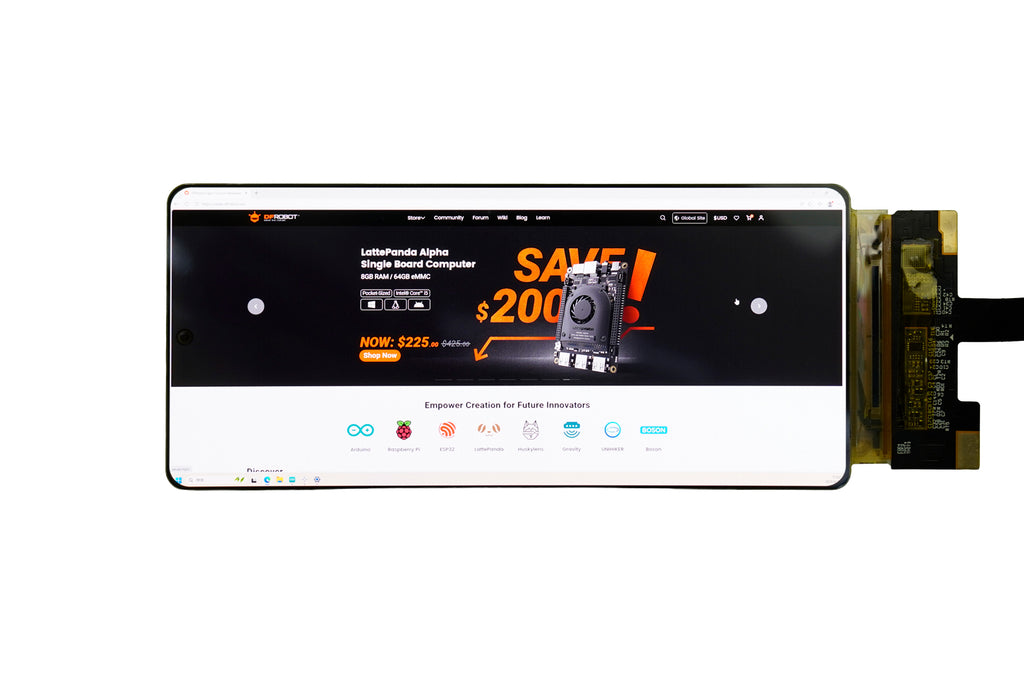

Vivid High-Resolution AMOLED Visuals
With a 2400x1080 resolution and 450cd/m² typical brightness, this AMOLED panel delivers crisp text and vibrant images. The 16.7 million color reproduction and 85° viewing angle ensure consistent color accuracy from multiple perspectives. Whether displaying complex UI elements, video, or graphics, this screen delivers well-saturated visuals suitable for both consumer and industrial applications.Streamlined HDMI Setup for SBCs
The included driver board provides a standard HDMI input, enabling direct connection to SBCs without the need for custom kernel compilation or complicated adapter boards.
Configuration & Setup Notes:
Cabling Requirements:
Environmental & Handling Warning: This bare panel does not feature an IP rating and has not undergone humidity testing. The display must not come into contact with water, moisture, sweat, or condensation. While a protective external cover is not strictly required for operation, the panel must be kept dry and integrated carefully into hardware prototypes to avoid moisture damage.If the screen flickers slightly, it may be caused by insufficient power supply. Please use a 5V USB power adapter and press the refresh button to refresh the screen.If the mainboard is powered on but the screen does not light up, please press the refresh button to refresh the screen.
Features:
Note: This display does not feature a touch interface.
Applications:
Specification:
Display Characteristics
Mechanical
Driver & Interface

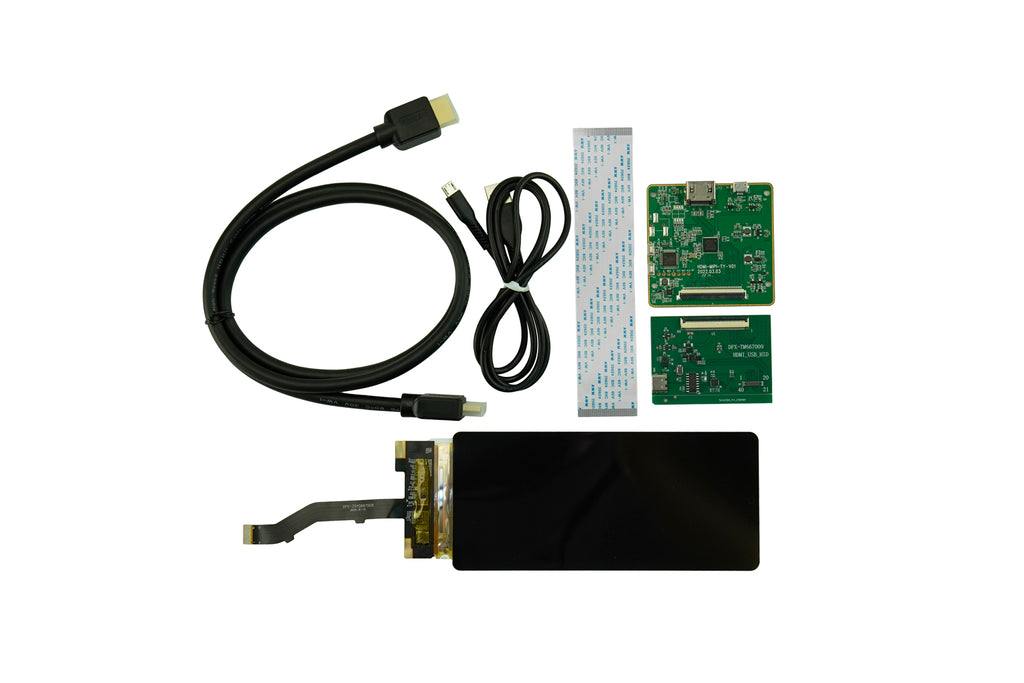

Product Includes:
