5V 0.6W Mini Solar Panel - ETFE

Price:
Sale price A$22.51   Inc. GST
SKU:
ADA5856
Out Of Stock

We will notify you when this product becomes available.

This panel is from Voltaic Systems, known for their high-quality solar bags and packs. It is waterproof, scratch-resistant, and UV-resistant, and features 10 high-efficiency monocrystalline SunPower cells with over 22% efficiency. Each cell has a nominal voltage of 0.5V, making it a "5V" panel. The datasheet lists it as a 6V panel, as it reaches a max-power-point output of 6.1V.

Constructed with ETFE, this mini solar panel outputs 6V at 120 mA peak, providing durability and environmental resistance.

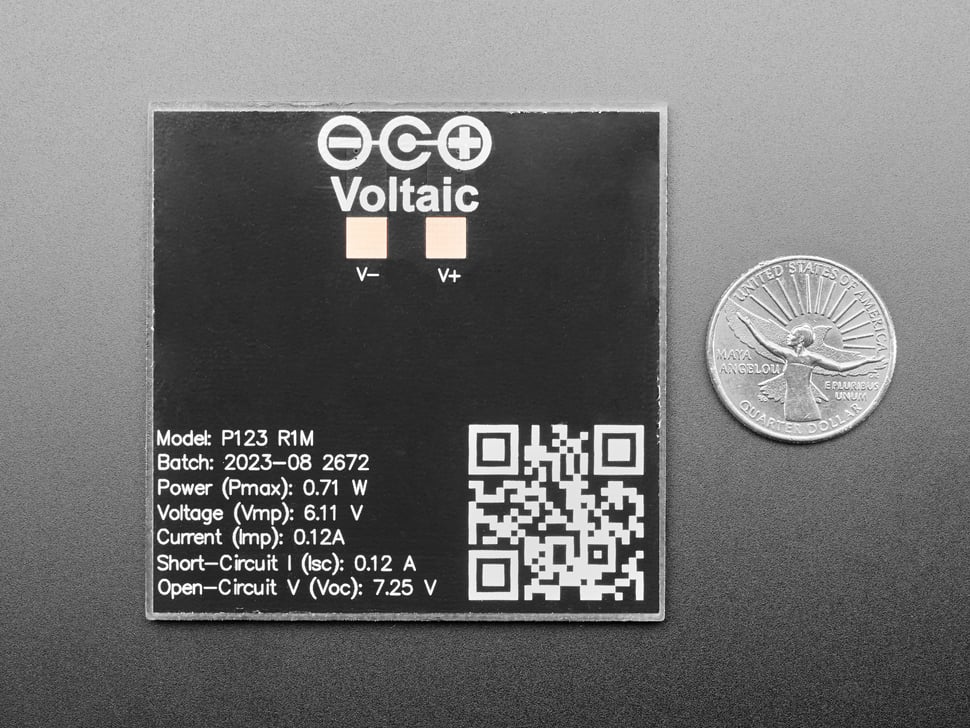

Unlike the larger panels, these don't come with a connector. Instead, there are two pads on the back. To connect, we recommend soldering two wires and attaching a 2.1mm terminal block. (Or you can cut off the alligator clips from a 2.1mm-to-clip adapter)

If you want to use this to charge a battery or run your project, check out our optimized Solar Lithium Ion/Polymer charger!





Technical Details

Features

  • Waterproof (IP67)
  • UV resistant (5-7 year life)
  • Durable and lightweight
  • High-efficiency monocrystalline cells: 22+%
  • 2x Solder Pads

Size and Weight

  • 65.5mm x 65.5mm x 3.1mm
  • 20.4 grams


Construction

  • Matte ETFE coating
  • 1.5mm double-sided PCB


Warranty

  • 2-year warranty on solar panels
  • For more warranty information, see the warranty guide
RoHS 2 2011 65 EU Compliant
