Features
- Vibrant Display: Showcase Black, White, Yellow, Red, Blue, Green and Orange colors, resulting in striking visuals and clear information.
- Enhanced Contrast: Ensures that images and text stand out sharply, making it perfect for effectively conveying information.
- Wide Viewing Angle: Greater than 170 degree, unaffected by light direction.
- Ultra Low Power Consumption: Consumes minimal power, standby mode below 0.003mW
- Bi-stable and Ultra-Reflective: Operating in a bi-stable manner, it retains images without power consumption, while its ultra-reflective properties ensure easy readability even in different lighting conditions.
Description

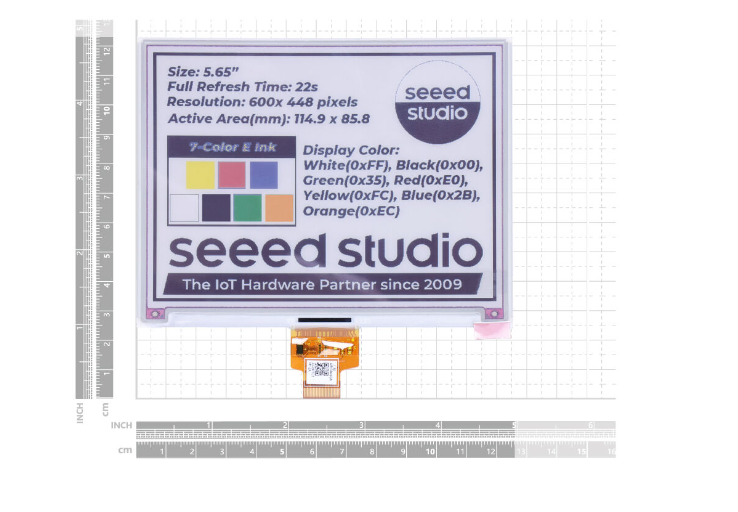

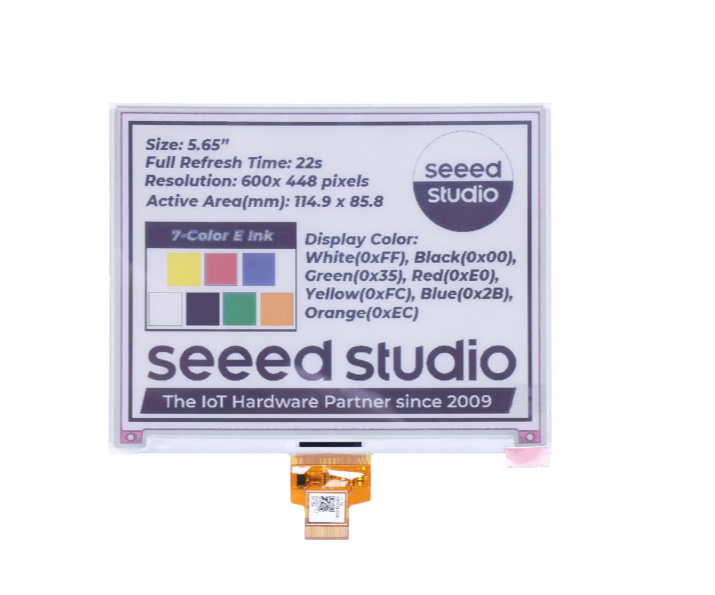

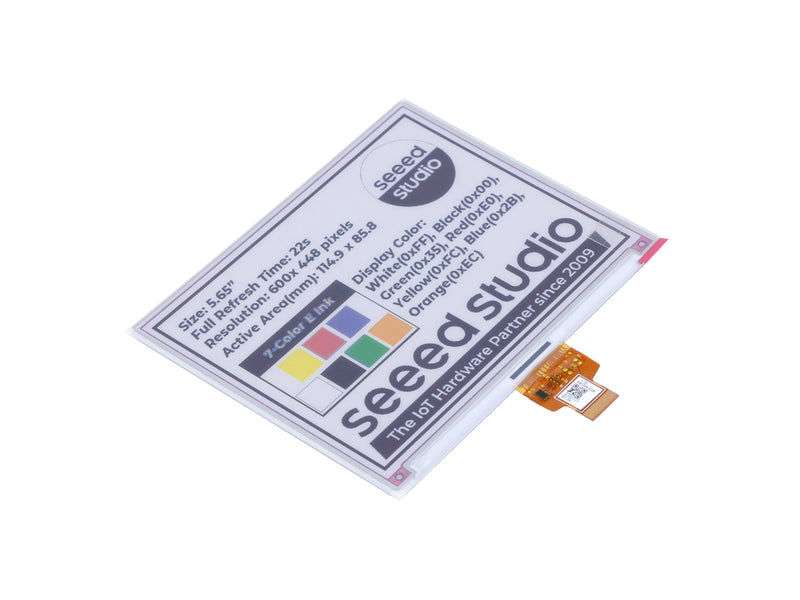

Introducing a 5.65-inch e-paper display module powered by reflective electrophoretic E Ink technology, housed on an active matrix TFT substrate. With an active area diagonal of 5.65", boasting 600 x 448 pixels, this module offers vibrant 7-color images, including black, white, red, yellow, blue, green, and orange, determined by the corresponding lookup table. The integrated panel circuitry comprises gate and source drivers, a timing controller, an oscillator, a DC-DC boost circuit, memory for frame buffer and lookup tables, and controls for VCOM and BORDER settings. Notably, it achieves a quick full-screen refresh time of just 22 seconds, ensuring a seamless and dynamic display experience.
What is an E-Paper?
E-Paper, short for Electronic Paper, is a type of display technology that aims to mimic the appearance of traditional paper and ink. It's designed to provide high contrast and readability in various lighting conditions, including direct sunlight, without the need for a backlight. E-Paper displays use tiny microcapsules containing charged particles suspended in a liquid to produce images. When an electric field is applied, the particles move to the top or bottom of the microcapsules, resulting in different shades or colors being visible to the viewer. E-Paper is often used in e-readers, electronic shelf labels, smartwatches, and other devices where energy efficiency and readability are essential.
Advantages Over Traditional Displays
E-Paper displays offer advantages over traditional displays, including better readability like paper, visibility in sunlight, low energy consumption, thin design, wide viewing angles, and longer battery life. They are ideal for portable devices and environments where glare and power efficiency matter.
Applications
- Reading equipment
- Mobile device
- Electronic tags and price tags
- Smart Wearables
- Electronic Shelf Labels
- Smart Card
Specification
Parameters | Details |
Model No. | GDEP0565D90 |
Type | Dot Matrix |
Size | 5.65 inch |
Active Area(mm) | 114.9 x 85.8 |
Resolution | 600 x 448 pixels |
Pixel Pitch(mm) | 0.1915 x 0.1915 |
Display Color | Black, White, Yellow, Red, Blue, Green and Orange |
Full Refresh Time | 22s |
Interface | SPI |
Connector | 24 Pin PFC, 0.5mm Pitch |
Viewing Angle | >170° |
Operating Voltage | 3.3V |
Operating Temperature | 15-35°C |
Driver Mode | Support XIAO/STM32/Arduino/Micropthon |
Drawing | Support GUI Drawing |
Power Consumption | 72.6mW (typ.) |
Standby Consumption | 0.66mW |
Outline Dimension(mm) | 125.4 x 99.5 x 0.91 |
Weight | 3.2g |
Hardware Overview
Part List

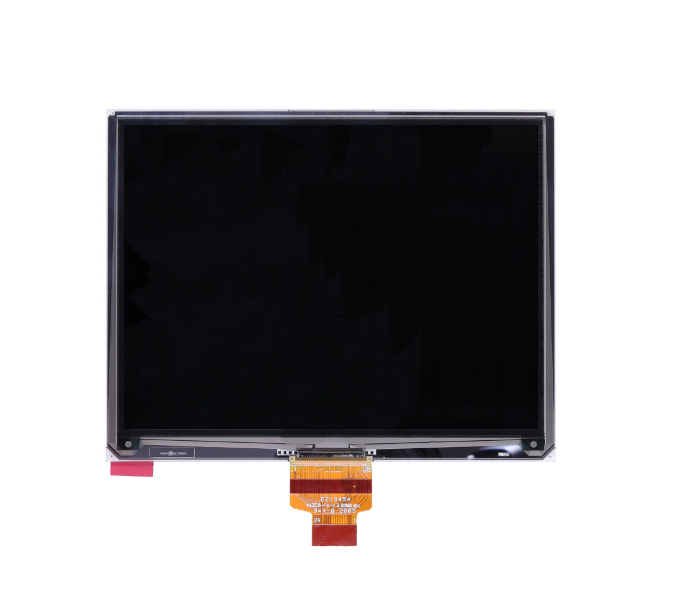

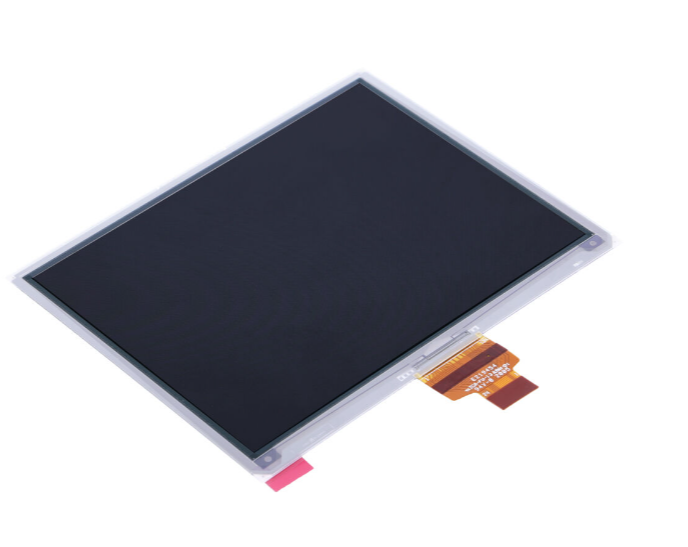

5.65" Seven-Color ePaper Display | ×1 |
FAQ
ECCN/HTS
| HSCODE | 8543709990 |
| USHSCODE | 8486400030 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
