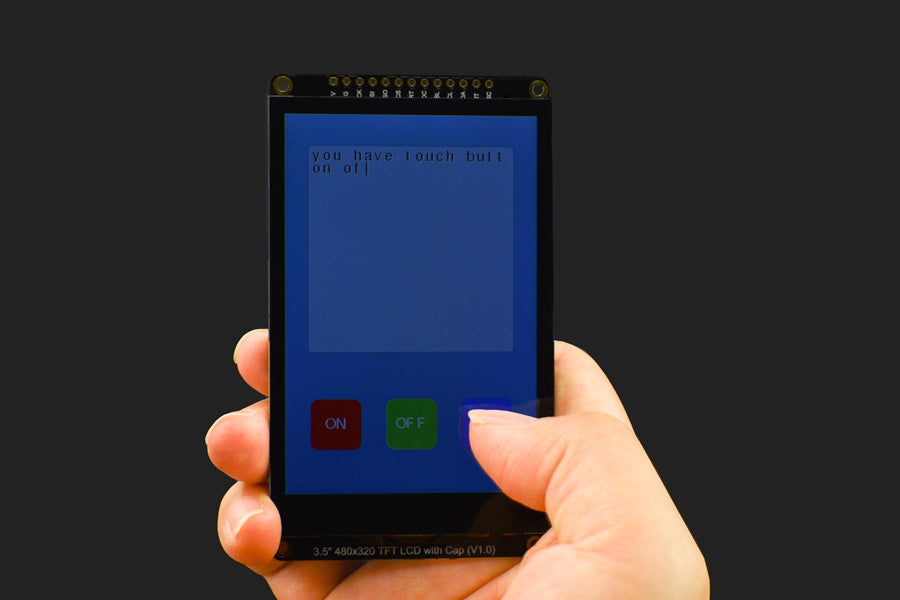

3.5 480x320 TFT LCD Capacitive Touchscreen with MicroSD Card Slot

Price:
Sale price A$70.22   Inc. GST
SKU:
DF-DFR0669
54 units Ships in 7 to 10 days

With 480x320 color pixels, this 3.5” LCD display module adopts ILI9488 driver chip and integrates GT911 touch chip that supports 5 capacitive touch-points at most. This IPS display supports for SPI (4-wire) communication mode and performs excellently in the angle of view (60/60/60/60). In addition, the module provides compatibility with GDI (work with main-controllers with GDI), plug and play. Furthermore, it features high resolution, wide viewing angle, and simple wiring, which can be used in all sorts of display applications, such as, IoT controlling device, game console, desktop event notifier, touch interface, etc.

The 3.5” LCD module can be powered at 3.3~5V and is compatible with multiple main-controllers: UNO, Leonardo, ESP32, ESP8266, FireBeetle M0. Use the GDI interface to work with M0, which could effectively reduce wiring steps. Besides, there is an onboard MicroSD card slot for displaying more pictures.

Note: MicroSD Card is not included, click here to buy one.

Features:

  • Wide-angle of view
  • Multiple capacitive touch points
  • High resolution
  • GDI, plug, and play
  • Onboard MicroSD card slot

Applications:

  • IoT controlling End
  • Game console
  • Desktop event notifier
  • Specification:

    • Operating Voltage: 3.3V-5.5 V
    • Color Depth: 16-bit(RGB565)
    • Driver Chip: ILI9488
    • Touch Chip: GT911
    • Pixels: 480x320
    • Communication Mode: SPI
    • Brightness (cd/m2): 300(TYP)
    • Full-screen Consumption: 48.1mA*5V/3.3VTyp
    • Operating Temperature: -20~+70
    • Display Area: 73.44×48.96 mm
    • Module Size: 55.50x95.00 mm
    • Mounting Hole Diameter: 2 mm

    Documents:

  • Product wiki
  • Product Includes:

  • 3.5”480x320 TFT LCD Capacitive Touchscreen x1
  • 2.54-10P Single Row Black Pin x1
  • FPC0.5-18PIN Flex Flat Cable Reverse Direction 10cm x1
