2.4GHz Bluetooth Low Energy 4.0 module-20dB V-14004

$36.20 AUD Inc. GST


SKU SS317030018

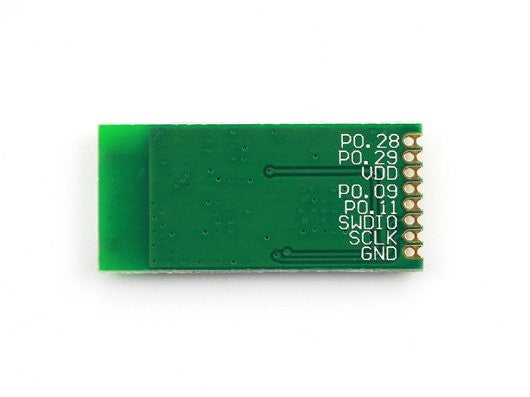

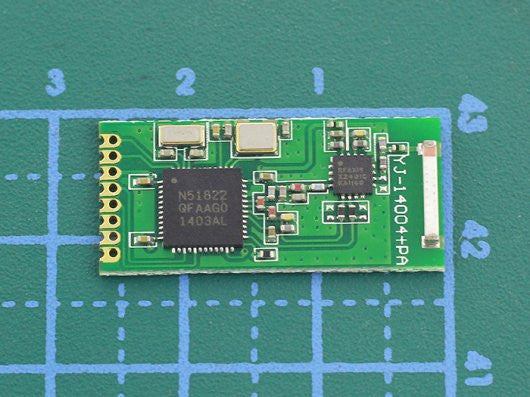

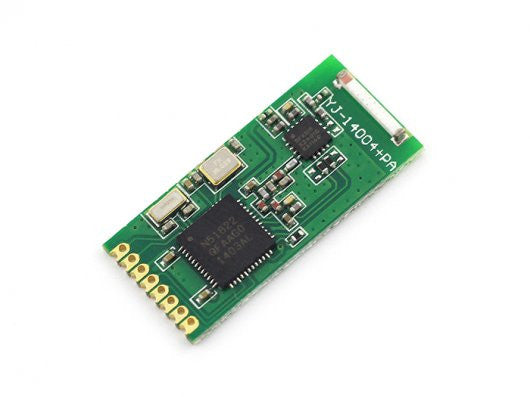

V-14004 is a high integration small size Bluetooth 4.0 module.

Features
1.  This module is based on low energy bluetooth4.0 chip NRF51822.support BLE4.0 mode and private mode.
2.  ARM Cortex-M0 32 core 128K Flash 16K RAM
3.  128bit AES hardware encryption, ,with a 1dB resolution RSSI,10bit ADC I2C UART SPI WDT RTC PPI
4.  Small size 12mm*26mm*2mm,pin space 1.27mm,can be used as embedded wireless development platform
5.  Widely used as Bluetooth,serial port, remote control, wireless meter reading, industrial data collection, heart rate ,ANCS, keyboard and HID device, etc

Specification

Work Frequency

2400MHZ-2483MHZ



Work Voltage

1.8-3.6V



Maximum power

+20dBm



Transmission rate

250/1000/2000kbps



TX current

85mA



RX current

35mA



MCU work current

4.4mA@16MHZ@3v

自Flash运行

MCU work current

2.4mA@16MHZ@3v

自RAM   运行

MCU idle mode

2.3uA@3V ON mode,all block idle



MCU close mode

420uA@3v OFF mode



sensitivity

-96dBm@250kbps

0.1%BER
