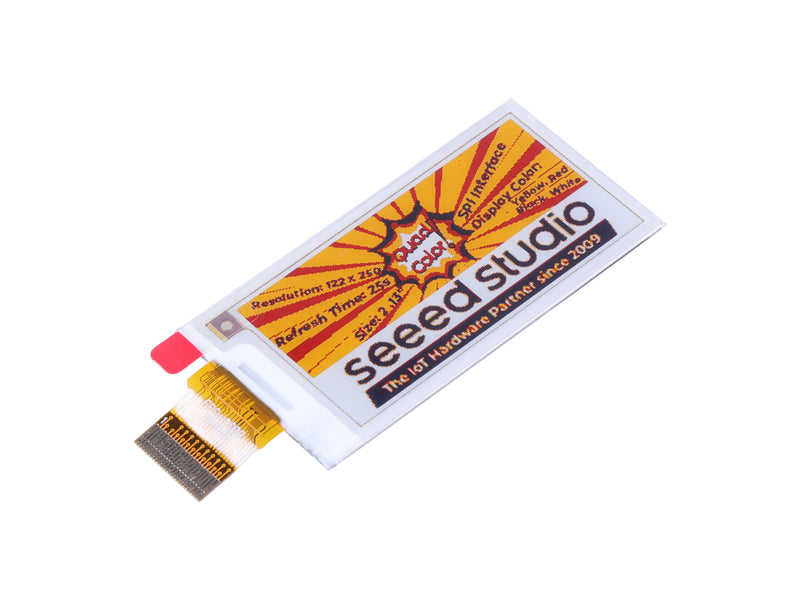

2.13" e-paper display module offers 122x250 resolution, displaying images in black, white, yellow, and red. Full-screen refresh of 25s makes it ideal for e-reader, wearable, and portable devices.
Features
- Vibrant Red and Yellow Display: Showcase red and yellow colors more than just black and white, resulting in striking visuals and clear information.
- Enhanced Contrast: Ensures that images and text stand out sharply, making it perfect for effectively conveying information.
- Wide Viewing Angle: Greater than 170 degrees, unaffected by light direction.
- Ultra Low Power Consumption: Consumes minimal power, standby mode below 0.003mW
- Bi-stable and Ultra-Reflective: Operating in a bi-stable manner, it retains images without power consumption, while its ultra-reflective properties ensure easy readability even in different lighting conditions.
Description
This is a 2.13-inch e-paper display module that employs an active matrix TFT substrate with reflective electrophoretic technology. With a resolution of 122x250, this module offers diverse images in black, white, yellow, and red, determined by the associated lookup table. The integrated circuitry encompasses gate and source drivers, a timing controller, an oscillator, a DC-DC boost circuit, memory for frame buffer and lookup tables, and controls for VCOM and BORDER settings. With a full-screen refresh time of 25 seconds, it guarantees both efficient and dynamic performance. This display module provides a cost-effective solution for applications such as electronic shelf labels, smart watches, and industrial systems, while remaining reliable and energy-efficient.
What is an E-Paper?
E-Paper, short for Electronic Paper, is a type of display technology that aims to mimic the appearance of traditional paper and ink. It's designed to provide high contrast and readability in various lighting conditions, including direct sunlight, without the need for a backlight. E-Paper displays use tiny microcapsules containing charged particles suspended in a liquid to produce images. When an electric field is applied, the particles move to the top or bottom of the microcapsules, resulting in different shades or colors being visible to the viewer. E-Paper is often used in e-readers, electronic shelf labels, smartwatches, and other devices where energy efficiency and readability are essential.
Advantages Over Traditional Displays
E-paper displays offer advantages over traditional displays, including better readability like paper, visibility in sunlight, low energy consumption, thin design, wide viewing angles, and longer battery life. They are ideal for portable devices and environments where glare and power efficiency matter.
Applications
- Reading equipment
- Mobile device
- Electronic tags and price tags
- Smart Wearables
- Electronic Shelf Labels
- Smart Card
Specification
Parameters | Details |
Model No. | GDEY0213F51 |
Type | Dot Matrix |
Size | 2.13 inch |
Active Area(mm) | 48.55 x 23.7046 |
Resolution | 122 x 250 pixels |
Pixel Pitch(mm) | 0.1943 x 0.1942 |
Display Color | Black, White, Yellow and Red |
Full Refresh Time | 25s |
Interface | SPI |
Connector | 24 Pin PFC, 0.5mm Pitch |
Viewing Angle | >170° |
Operating Voltage | 3.3V |
Operating Temperature | 0-40°C |
Driver Mode | Support XIAO/STM32/Arduino/MicroPython |
Drawing | Support GUI Drawing |
Power Consumption | 9.9mW (typ.) |
Standby Consumption | 0.003mW |
Outline Dimension(mm) | 59.2 x 29.2 x 1.00 |
Weight | 3.2g |
Hardware Overview
ECCN/HTS
| HSCODE | 8543709990 |
| USHSCODE | 8486400030 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
