1W Solar Panel 80X100

$10.20 AUD Inc. GST


SKU SS313070005
Ships in 24 hours 2 units
Ships in 3 to 10 days 128 units

increment
decrement
decrement increment

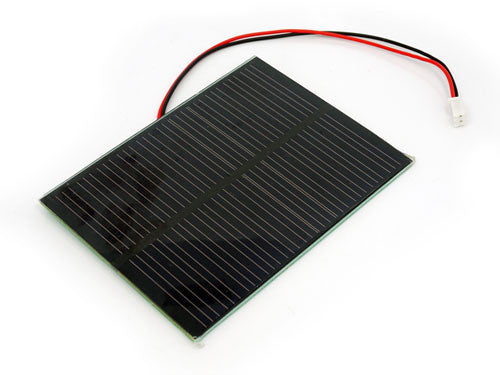

This solar panel is made of single-crystal material that performs high solar energy transformation efficiency at 17%. It has a fine resin surface and sturdy back suitable for outdoor environments. A 2mm JST connecter is attached to the penal, which makes it perfect to team up with most of our can-use-solar-power-supply boards.
The typical open circuit voltage is around 5V, depending on light intensity. In those bright summer days with clear sky and big sun, the peak OC voltage can rush up to 10V. To prevent any damage to boards that accept a narrow range of input voltage, like Lipo Rider, it’s recommended to check whether the OC voltage is safe before any connection.
Features
  • Dimensions: 100x80x2.5(±0.2) mm
  • Typical voltage: 5.5V
  • Typical current: 170mA
  • Open-circuit voltage: 8.2 V
  • Maximum load voltage: 6.4V
Documents
Please visit wiki page for more info about this product.
