180 Encoder Motor

180 Encoder Motor

$19.79 AUD Inc. GST


SKU MB81340
Ships in 24 hours 2 units

increment
decrement
decrement increment

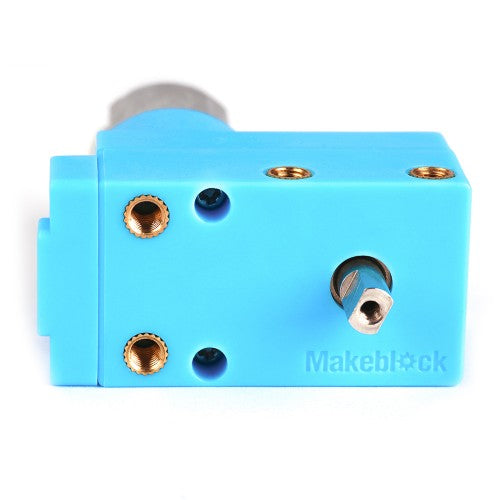

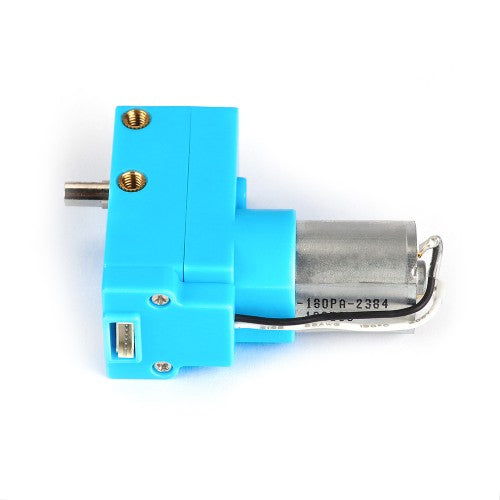

What is 180 Optical Encoder Motor?

180 optical encoder motor is equipped with optical encoder which enables motor to control in high-accuracy. And the unique structure makes this motor compliable with various parts. Meanwhile, due to the special materials, it produces lower noise while running and promises large output torque.

Features

? Flexible installation: compliable with Makeblock platform, having flexible installation. Directly drive sprockets, gears, synchronous belts, rubber tires and tracks, etc;

? Optical encoder: control precisely with PID and PWM calculation;

? Powerful capability: compared to other motors in the same level, this encoder motor has high torque, high reduction ratio and high output rotate speed;

? Lower noise: equipped with gear case which is anti-abrasive and makes lower noise;

? Long service time: with special 45# steel output shaft, the motor can transmit great torque efficiently as well as reduce attrition and increase service life.



Demo:



Specifications

Reduction Ratio                 39.6
Rated Voltage 7.4V
No Load Current 240mA
Load Current ≤750mA
NO Load Speed 350RPM±5%
Rated Load Speed (RPM) 178±10%
Rated Speed 14000RPM±5%
Rated Load Torque 800g.cm
Break-out Torque 5kg.cm
Output Shaft 9mm
Power 3.7W
Encoder accuracy 360



Product Information

SKU 81340
Product Name 180 Optical Encoder Motor Pack
Package content 1 x 180 Optical Encoder Motor Pack
1 x 180 Optical Encoder Motor Wire – black – 180mm
Package Dimension 150*103*30 mm
(5.9*4.1* 1.2 inch)
Product Dimension 65.3*48.1*24.0 mm
(2.57*1.90*0.95 inch)
Net Weight 61.5g (2.17oz)
