15.6 Inch 1920x1280 IPS Type-C Touch Screen & Display for Raspberry Pi / LattePanda
15.6 Inch 1920x1280 IPS Type-C Touch Screen & Display for Raspberry Pi / LattePanda

15.6 Inch 1920x1280 IPS Type-C Touch Screen & Display for Raspberry Pi LattePanda

Price:
A$423.63   Inc. GST
SKU:
DF-DFR1045
421 units Ships in 7 to 10 days

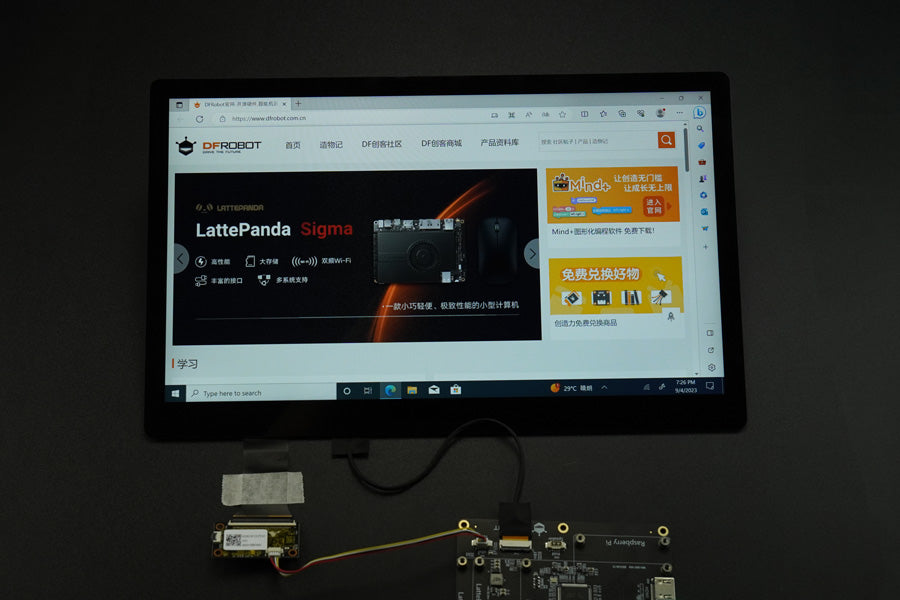

This 15.6-inch IPS capacitive touch display has a resolution of 1920×1080 and supports full-function Type-C and HDMI signal input. It is compatible with single-board computers such as LattePanda Sigma, Alpha, Delta, Raspberry PI 4B, and Jetson Nano, as well as various desktop, laptop, mini PC, industrial computer, and tablet models.

This 15.6" IPS Type-C Screen boasts a multi-faceted Type-C display interface that facilitates audio and video transmission, touch capabilities, and even charging. The reversible PD power capability allows for connected devices to be powered from the display, furthering the convenience of its unified Type-C connection. This flexibility and versatility provide a fantastic user experience.

The Type-C interfaces are identical, carefully designed to accommodate insertion with no distinction between the data and power supply port. Additionally, the display features the well-known HDMI interface, expanding the compatibility to a wide range of HDMI output devices.

In addition, with the 15.6-inch large screen display and ten-point touch function, the product is very suitable for human-computer interaction scenarios. Its 19201080 high-definition resolution, IPS full view, full fit process and surface anti-glare treatment and other high-quality parameters, make it more scene applicability.

LattePanda Type-C Cable Connection Diagram

LattePanda Type-C Cable Connection Diagram




LattePanda HDMI Connection Diagram

LattePanda HDMI Connection Diagram




Raspberry Pi HDMI Connection Diagram

Raspberry Pi HDMI Connection Diagram

Features:

  • Supports ten-point capacitive touch
  • Supports dual-channel audio output
  • Supports both Type-C and HDMI video transmission methods
  • The full-featured Type-C interface allows single-line connection for video, audio, and touch signals, and supports reverse PD power delivery.
  • Type-C does not require distinguishing between power and data interfaces, supporting blind insertion.
  • Compatible with Raspberry Pi 4B, LattePanda, LattePanda Alpha/Delta, and LattePanda Delta 3 installations.
  • Compatible with various desktop computers, laptops, mini PCs, industrial computers, and tablets.

    • Applications:

  • Human-Machine Interaction Panel
  • Terminal Control Panel
  • IoT Control Panel

    • Specification:

    Screen parameters

  • LCD size: 15.6 inches
  • Resolution: 1920×1080
  • Pixel pitch (um): 179.25(H) × 179.25(V)
  • Pixel arrangement : RGB Vertical Stripe
  • Color gamut: 45%
  • Display colors: 262k (6-bit)
  • Active area(mm): 344.16(H)×193.59(V)
  • Surface treatment: Anti-Glare
  • Surface hardness: 3H
  • Brightness: 250cd/
  • Refresh rate: 60Hz
  • Transmittance: ≥86%
  • View angle: Full-view angle
  • Number of touch: 10
  • Touch panel hardness: ≥6H
  • Bonding method: Optical bonding
  • Outline dimension(mm): 369.5(H)×288.6(V)×5.2(D)
  • Interface: eDP
  • LCD brand: BOE
  • Operating temperature: 0~+50
  • Weight: 766g


    • Display driver board parameters

  • Display interface: Type-C/HDMI
  • Speaker interface: MX1.25-4P
  • Touch interface: Type-C
  • Power interface: Type-C
  • Power voltage: 5~20V
  • Mounting hole size: Hole diameter 3.0mm
  • PCB size(mm): 125(V)×110(H)×1.6(D)


    • Touch control board parameters

  • Touch chip: ILI2511
  • Touch interface: MX1.25-4P
  • Mounting hole size: Hole diameter 3.0mm
  • PCB size(mm): 50(H)×26(V)×4.8(D)

    • Documents:

  • Product wiki

    • Product Includes:

  • 15.6" 1920×1080 IPS Type-C Capacitive Touch Screen ×1
  • Display Driver Board ×1
  • Touch Control Board ×1
  • eDP Screen Connection Cable 210mm ×1
  • Dual-Head MX1.25-4P Touch Screen Cable ×1
  • HDMI A to A Adapter Module for LattePanda Delta 3 ×1
  • HDMI A to A Adapter Module for LattePanda Delta/Alpha ×1
  • HDMI A to D Adapter Module for Raspberry Pi ×1
  • M3×6+8mm Single-Head Copper Pillar × 5
  • M3×6+9mm Single-Head Copper Pillar × 5
  • M2.5×6+8mm Single-Head Copper Pillar ×5
  • M3×6 Round Head Screw × 5
  • M2.5×6 Round Head Screw ×5
  • Product Certificate and Warranty Card ×1
