- Vibrant Spectra™ 6 Technology Display: Showcase black, white, yellow, red, green and blue colors more than just black and white, resulting in striking visuals and clear information.
- Ultra-Low Power Usage: The ePaper only consumes power during updates, leading to prolonged battery life and efficient energy use.
- Developer Friendly Integration: Optimized for use with the XIAO ePaper Display Board EE02 (coming soon), powered by the XIAO ESP32-S3 Plus, featuring a reserved battery connector and user button to accelerate prototyping and project development.
- Wide Range of Applications: Well-suited for applications such as electronic photo album, conference room signage, logistics tracking boards, and IoT dashboards, where high visibility, multi-color display, and low power consumption make a real impact.
How Spectra™ 6 works
Spectra displays are made of millions of Microcups® that suspend the particles in a clear fluid, enabling precise movement and stable color rendering. By combining red, yellow, green, and blue alongside monochrome, it achieves a rich six-color palette, delivering vivid images with paper-like readability.
Parameter | Description |
Type | Dot Matrix |
Size | 13.3 inch |
Active Area(mm) | 202.8 (H) x 270.4 (V) |
Resolution | 1200(H) x 1600(V) |
Pixel Pitch(mm) | 0.169 x 0.169 |
Display Color | Black, White, Yellow, Red, Green and Blue |
Interface | SPI |

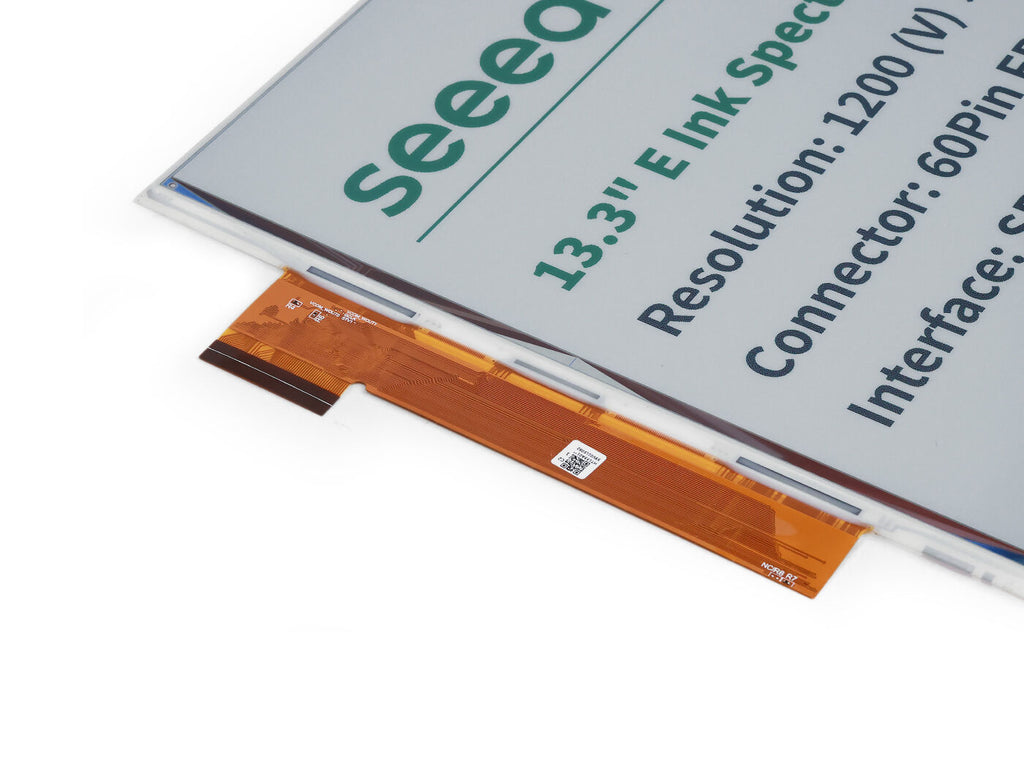

Connector | 60 Pin FCP, 0.5mm Pitch |
Driver Mode | Support XIAO/Arduino/MicroPython |
Drawing | Support GUI Drawing |

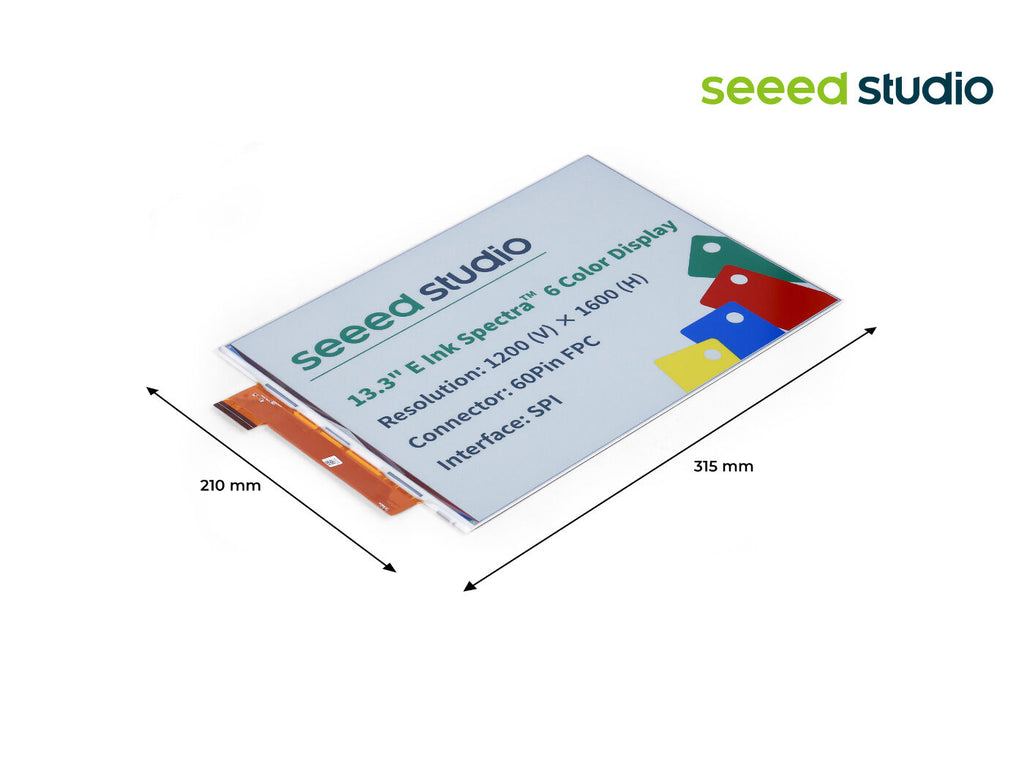

Outline Dimension(mm) | 208.8 (H) x 284.7 (V) x 0.85(D) |
Weight(g) | 50 ± 10 |
- Reading equipment
- Retail shelf labels
- Conference room signage
- logistics tracking boards
- Smart home dashboards
13.3-inch spectra™ 6 ePaper Display | ×1 |
| HSCODE | 8524999010 |
| USHSCODE | 8524119000 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
