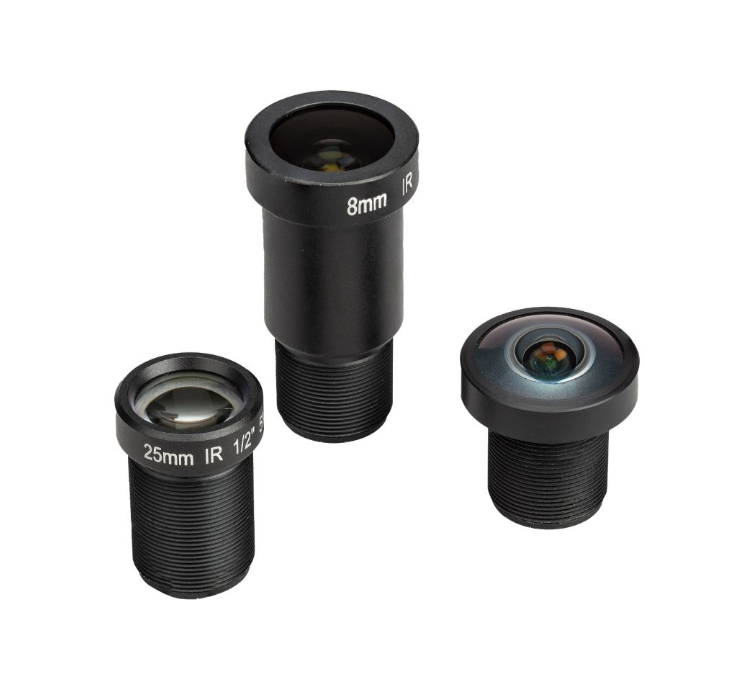

The 12MP, 2.7mm wide-angle lens for Raspberry Pi Camera Sensor is well suited for a Raspberry Pi camera sensor with M12-mount connection. It provides 12 million pixel camera capture, and a wide angle lens, designed for high quality and wide-angle image capture.
Feature
- 12MP, 2.7mm lens for Camera Sensor: Provide 5 million pixel camera capture and 2.7mm focal length
- M12-mount Connection: Support M12-mount camera sensor
- Wide-angle Lens: Offer wide-angle image capture
Description
The 12MP, 2.7mm wide-angle lens for Raspberry Pi Camera Sensor is well suited for a Raspberry Pi camera sensor with M12-mount connection. It provides 12 million pixel camera capture, and wide angle lens, designed for high quality and wide-angle image capture. It also comes with front and back covers for protection when it's not in use.
Application
- High-quality Image Capture
- Long-focus Usage
- Wide-angle image capture
Specification
Focal-Length (mm) | 2.7±5%mm | ||
Resolution | 12 Megapixel | ||
Image format | 1/2.3" | ||
Sensor Size | 6.28mm(H)x4.7mm(V)x7.86m(D) | ||
Aperture | F2.5±5% | ||
Mount | M12 | ||
Field Angle D*H*V( °) | D | 185° | |
H | 140° | ||
V | 103° | ||
Distortion | -75% | ||
CRA | Max14° | ||
Dimension (mm) | Φ17.40×18.94m | ||
MBF | 3.06mm | ||
Operation | Focus | / | |
Zoom | / | ||
Iris | Fixed | ||
Size Tolerance: | 0-10±0.1； 10-30±0.3； 30-120±0.5 | ||
Angle Tolerance: | ±2° | ||
Notes： Working temperature：-30℃ --+75℃。 2 、 Optical coating is very important for lens imaging. It should be handled with care to avoid scratching the coating. 3 The lens contains precision optical and mechanical components. Please avoid violent vibration during transportation and use. | |||
ECCN/HTS
| HSCODE | 8525801390 |
| USHSCODE | 8473301140 |
| UPC | |
| EUHSCODE | 8517600000 |
| COO | CHINA |
