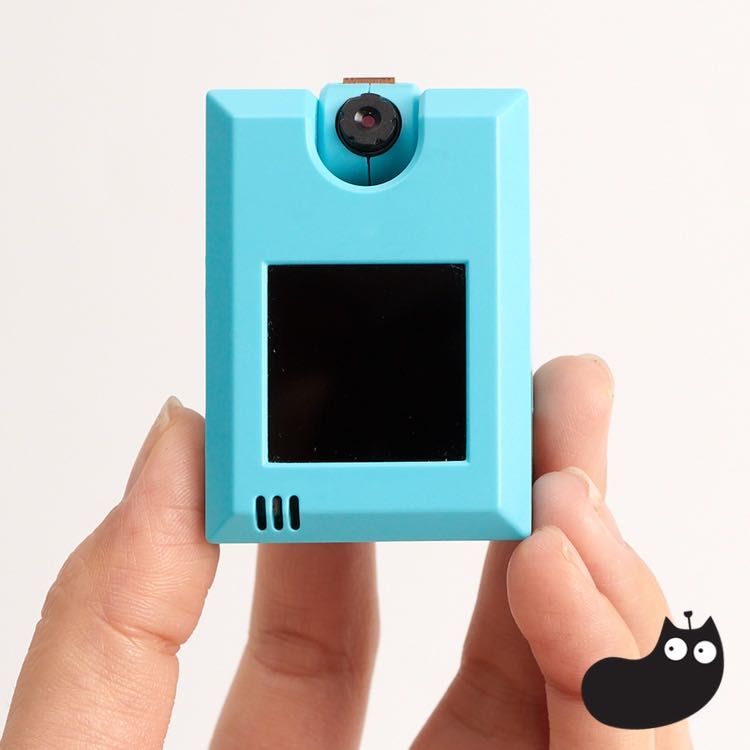

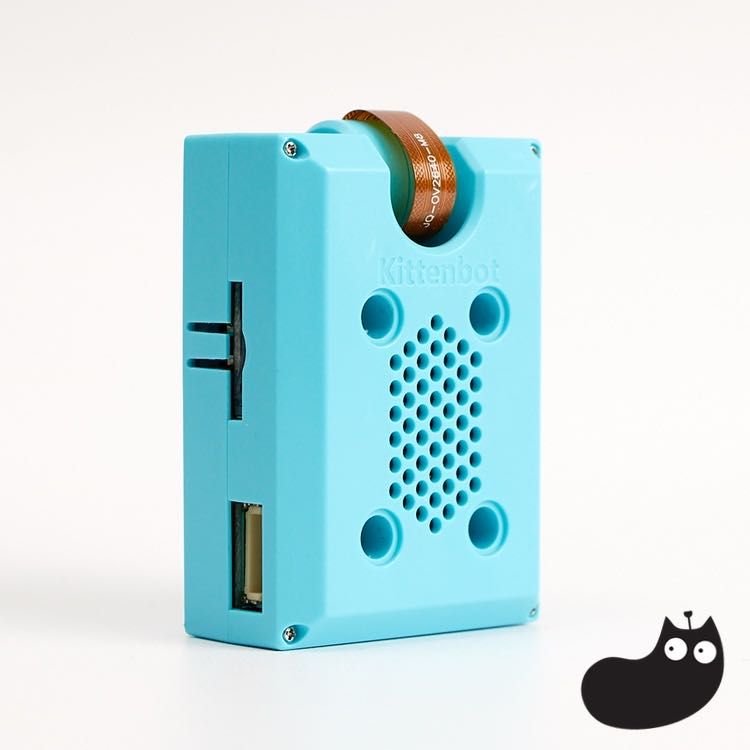

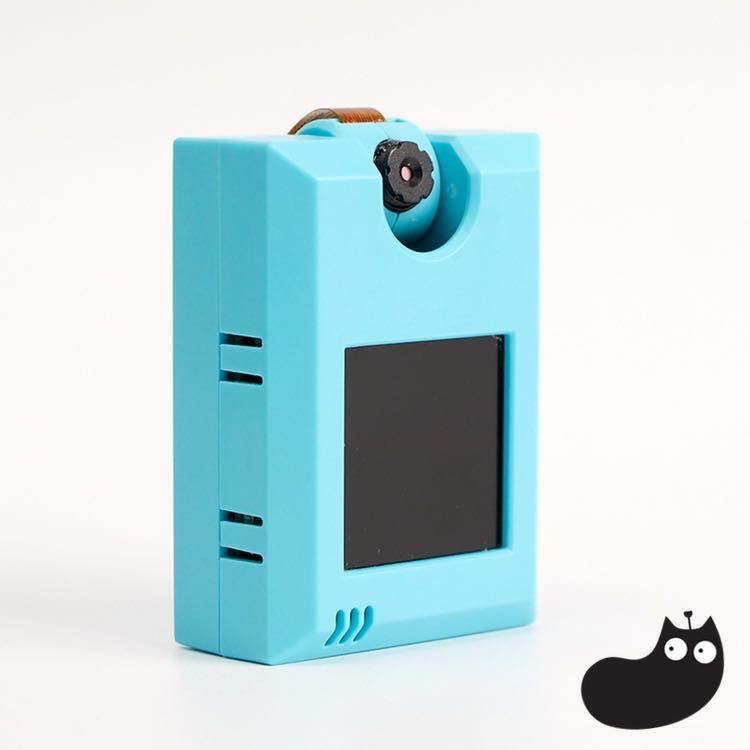

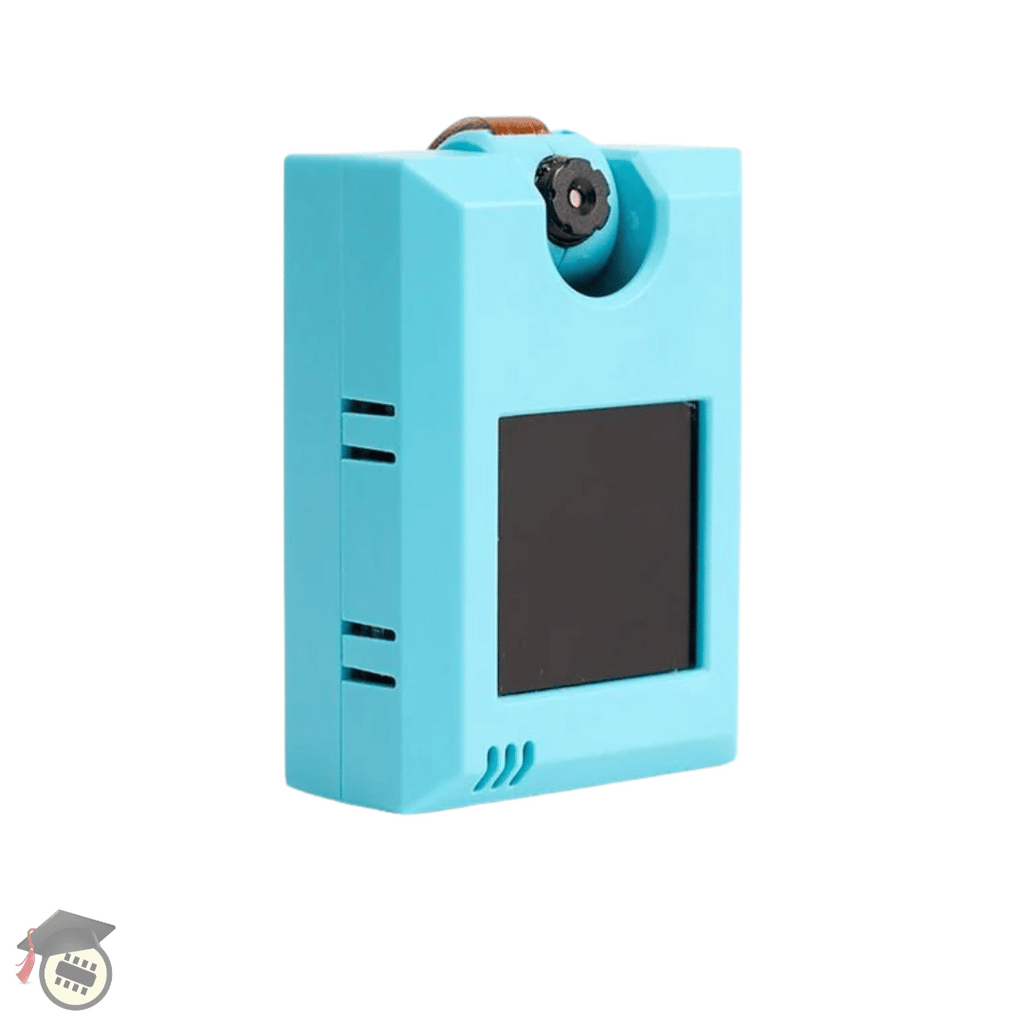

KOI is an Artificial Intelligence module which can be programmed graphically and used offline.The hardware includes camera, microphone, speaker, IPS screen, WiFi and so on.
It can realize the functions of vision recognition, speech recognition, speech synthesis, Internet of things and so on.
Multiple functions can let your system experience learning artificial intelligence.
The module also integrates WiFi function, which enables your AI works to access the cloud and make the works cooler.
- AI + IOT, integration of artificial intelligence and Internet of things
- Comprehensive AI functions, including speech recognition, speech synthesis, visual recognition
- Cost effective offline artificial intelligence module, add an AI brain to your work
- Through graphical programming, hands-on artificial intelligence
- Self training machine model, support import model
- Face recognition (Support 20 classifications, output position and confidence)
- Classifier (The user-defined recognition of any object supports up to 20 classifications 100 samples; offline training,without computer assistance, saves or loads the classification model from SD card)
- Visual tracking (Circle / Rectangle / line / color block tracking)
- Voice Record / Play / IoT (Speech recognition synthesis, recording and voice changing, calling voice dialogue interface, playing network or local voice resources, offline keyword recognition)
- Scanning (Image recognition, OCR character recognition, license plate recognition, expression recognition, etc)
|Main control supported||microbit, mew bit, Arduino series and any main
control board with serial port function
|Display||1.3 "IPS screen (240x240)|
|Camera||RGB (640x480 )|
|Audio input / output||48K single channel sample rate output
8K sample rate microphone input
|Wireless communication||WiFi (Based on Esp8285)|
|Data output mode||UART / WiFi / USB|
|Image transmission channel||USB / WiFi|
|SD card||TF Card|
|Memory Card support||《16G|
|Power supply voltage||3.3~5V|

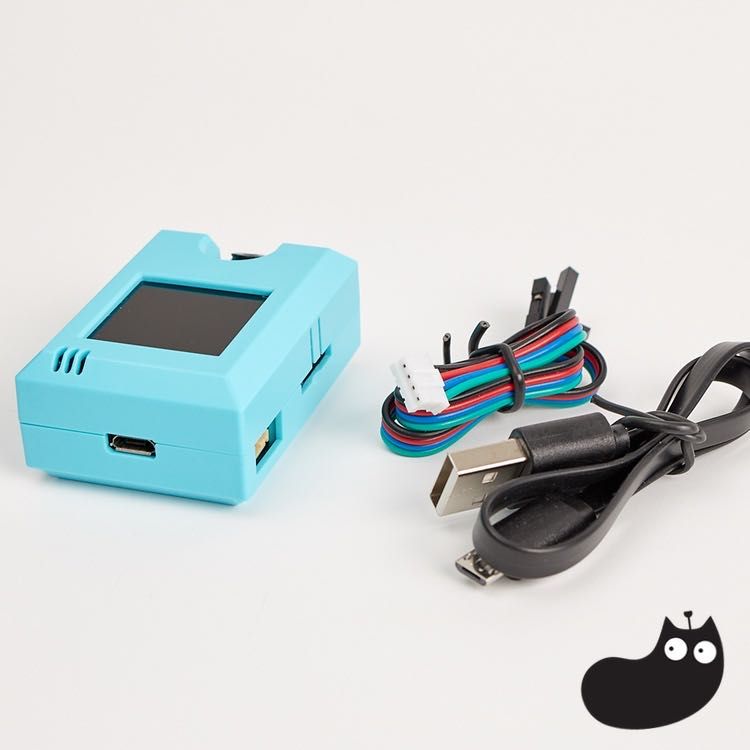

- KOI AI Module x1
- Micro USB Cable x1
- 4P Dupont Cable x1
