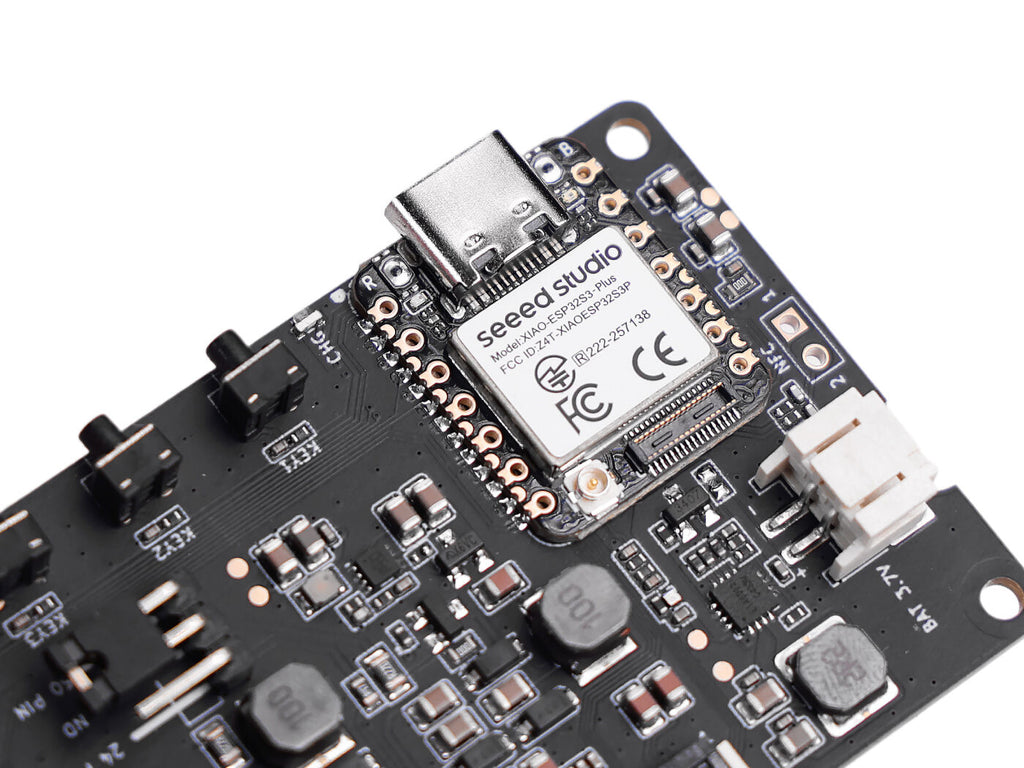

- Powered by XIAO ESP32-S3 Plus：Works immediately when connected to a compatible ePaper display.

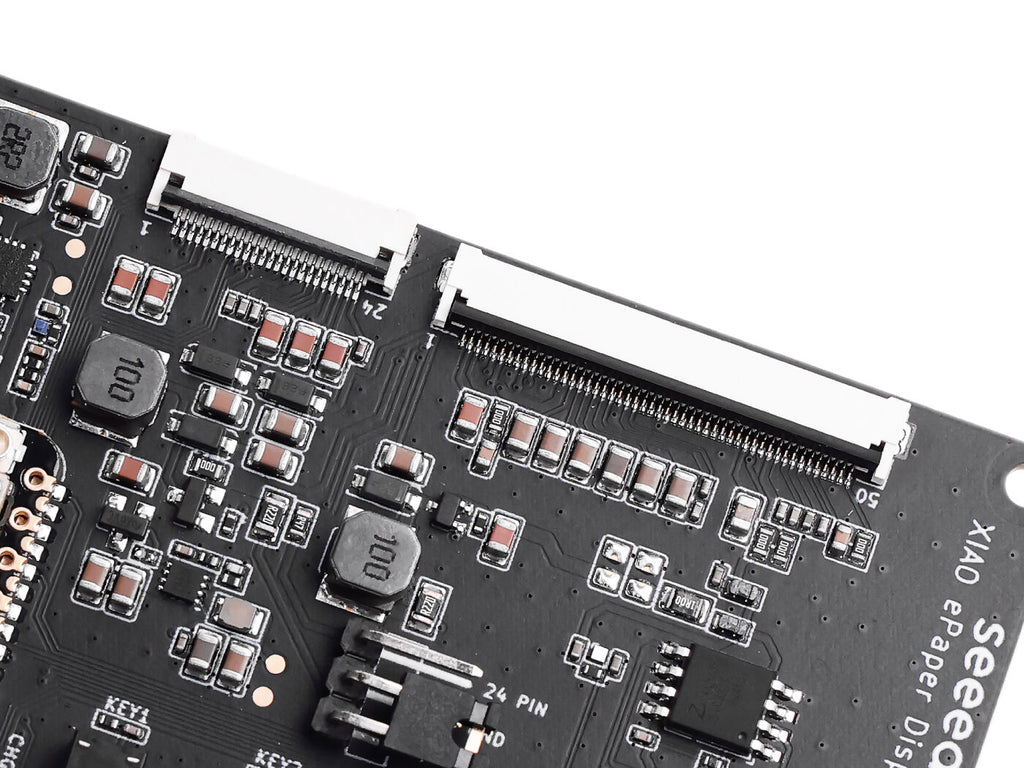

- Versatile Display Support: Compatible with a wide range of ePaper screens, supporting both 24-Pin and 50-Pin interfaces with easy switching via jumper caps.
- BAT Connector with Switch: Provides simple battery connection and integrates a switch, enabling efficient power management and energy savings.

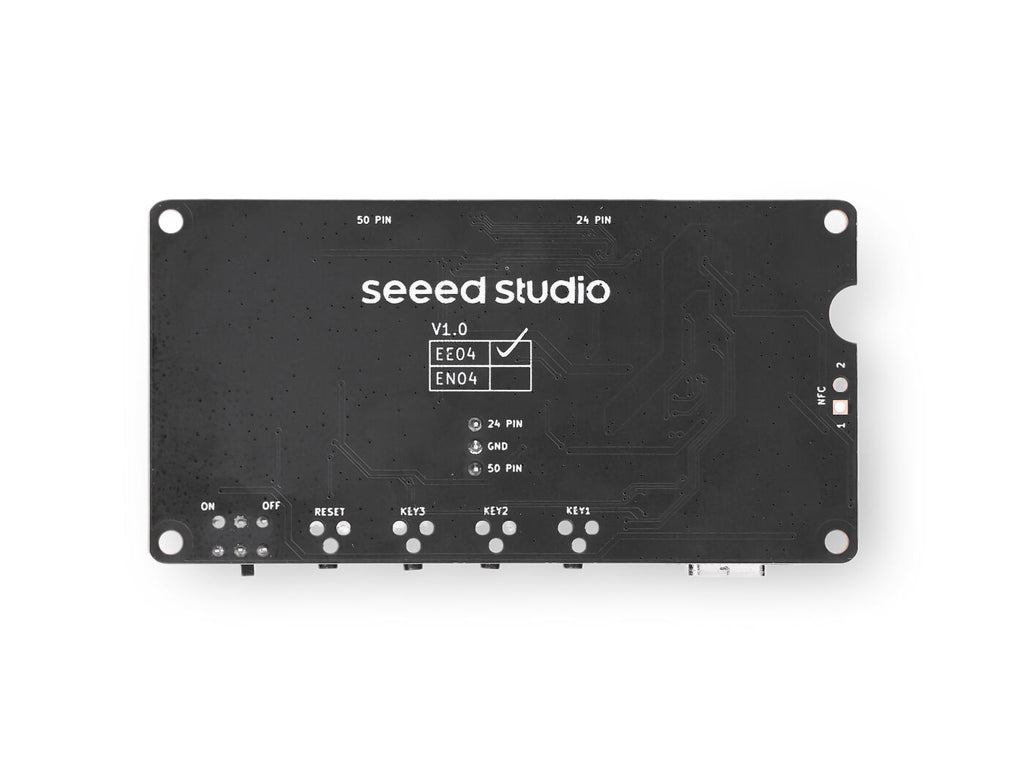

- User-Friendly Buttons: Includes 1 reset button and 3 user-programmable buttons, offering flexibility for project acceleration and customizable functions.
Product | |||
Processor | XIAO ESP32-S3 Plus | XIAO Series | XIAO Series |
Compatible ePaper Displays | 24 Pin ePaper 50Pin epaper | 24 Pin ePaper | 24 Pin ePaper |
ePaper Connector | FPC 24 Pin ，0.5mm FCP 50 Pin , 0.5mm | FPC 24 Pin 0.5mm | FPC 24 Pin 0.5mm |
Battery Connector | JST 2.0mm | / | JST 2.0mm |
Switch | Battery Power ON/OFF | / | Battery Power ON/OFF |
Button | 1x Reset button 3x User button | / | / |
Extension IO Port | / | connection of others controller | connection of additional sensors |
Parameter | Description |
Processor | |
ePaper Connector | FPC 24 Pin 0.5mm FPC 50 Pin 0.5mm |
Battery Connector | JST 2.0mm |
Switch | Battery Power ON/OFF |
Power Supply | - 3.7V Li-Battery - USB Type-C |
Button | -1x Reset button -3x User button |
- NFC Antenna Pins not applicable to this board.
XIAO ePaper Display Board EE04 | ×1 |
| HSCODE | 8543909000 |
| USHSCODE | 8543903500 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |
