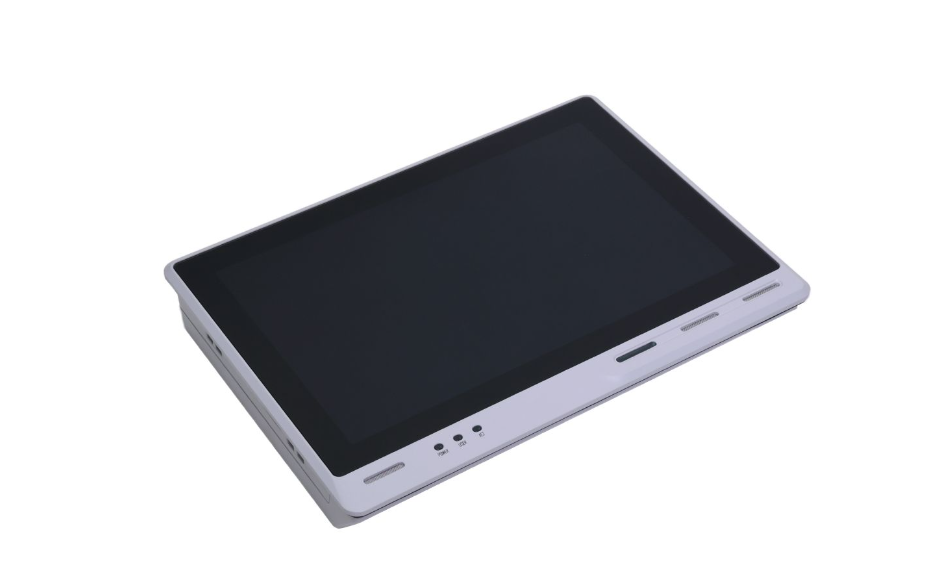

reTerminal DM CM4104032

Price:
Sale price A$764.35   Inc. GST
SKU:
SS114070262
75 units Ships in 7 to 10 days

It is equipped with rich scalability and hybrid connectivity, supporting CAN bus, RS485, RS232, Gigabit Ethernet port, and other interfaces, as well as powerful wireless communication capabilities such as 4G, LoRa®, Wi-Fi, and BLE.

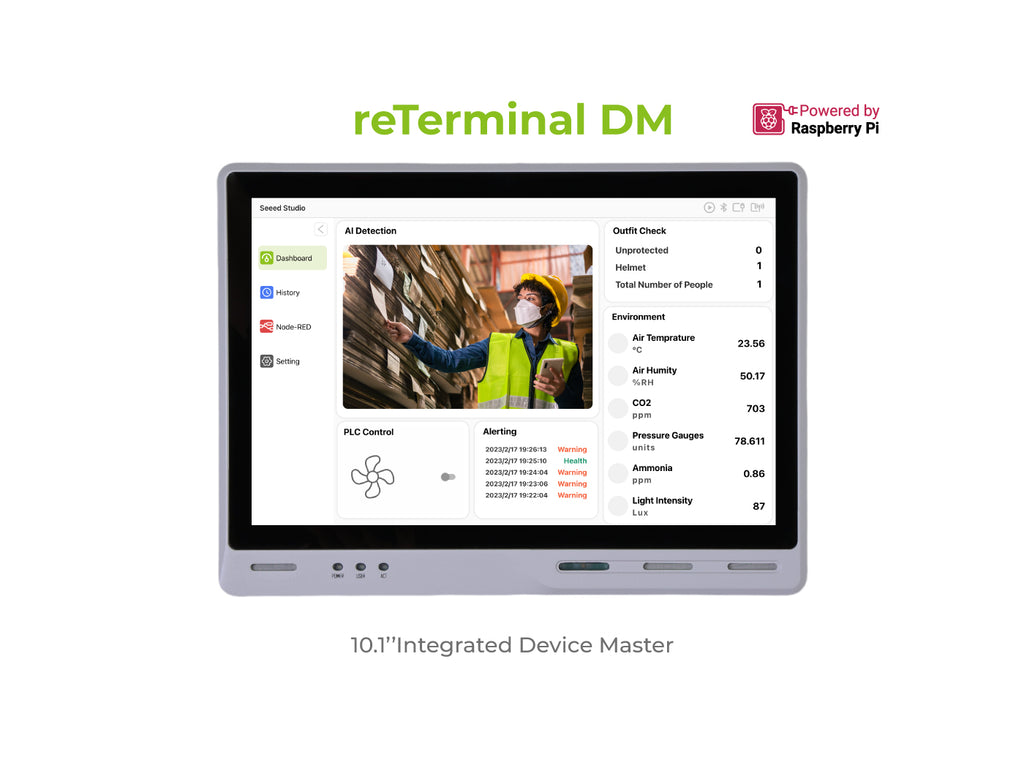

It’s also equipped with a larger screen, stricter industrial protection levels, and richer industrial interfaces, designed as the advanced version of reTerminal.

Features

  • Rugged design for harsh working environment: IP65 front panel, -10~50°C operating temperature
  • Open-source design in software and hardware: Powered by Raspberry Pi CM4, easy for customization or derivatives with the PCIe extensions design (flexible for NVME SSD, Dual 1000M Ethernet, Dual USB 3.0, COM Port RS485/232, and more customizations)
  • Cost-effective Device Master: HMI, PLC, Panel PC and gateway all-in-one. Perfect for the distributed hub devices
  • Low code programming for event-driven applications: Natively integrated Node-RED for flow-based editing and one-click deployment, compatible with all software runs on Raspberry Pi
  • Hybrid connectivity: Support 4G LTE, LoRaWAN®, Wi-Fi, BLE, RS485/RS232, CAN bus, 1000M Ethernet, USB, HDMI
  • Product Warranty: Two-year warranty

Description

reTerminal DM is an integrated device master that can function as an HMI/PLC/Gateway/Panel PC all-in-one device, working in the edge layer of the IOT architecture, unifying data flow, and managing onsite devices, reducing the big gap between legacy systems and modern IT infrastructures in various application scenarios.

Hardware Overview and Mainboard Overview


Architecture of edge devices

Seeed also offers other Raspberry Pi powered edge devices like edge IoT controllers, or LoRaWAN gateways and field sensors, and NVIDIA edge AI devices.

Seeed Agile Customization Service

With decades of ODM & OEM experience and a profound understanding of popular open-source hardware platforms, including Raspberry Pi, we have already served hundreds of customers. Utilizing our agile and productive ODM management procedure, we assure you professional and flexible customization services for the reTerminal DM.We welcome you to explore and inquire about this product([email protected]), unlocking the potential of reTerminal DM.

To stay informed of the latest updates, special offerings, real-world success stories, expert interviews, and webinars about edge IoT devices and be connected with the system integrators and solution providers from vertical industries, we welcome you to subscribe to our dedicated Newsletter.

Application

The reTerminal DM HMI presents a versatile solution applicable across numerous industries. Seamlessly integrating cutting-edge technologies, it streamlines operations and enhances efficiency. Running on the Home Assistant platform and employing Computing Vision, Cloud solutions, and industrial platforms like N3uron, Ignition Edge, and Node-RED, along with our proprietary platform, Sensecraft Edge OS, it opens up exciting possibilities for developers and enthusiasts alike. Are you ready to explore this powerful HMI for a myriad of applications?





















For now, Hundreds of SI(system interagrator) customer deployed reTerminal DM to production field. the typical application technology we summarize as reference. Refer to Raspberry Pi Success Cases for details about our customer successs story.

Let's delve into the diverse use cases:

Energy Management: Monitor grids, monitor and maintain solar panels.

Building Management: Central control panel for BAS, individual room control panels.

MedTech: Medical device control panel, patient monitoring station.

Manufacturing: Production line monitoring, HMI for machines.

Industrial: SCADA systems, remote monitoring and control.

Mining: Mining vehicle control panels, integrate into mine management systems.

Construction: BIM, Monitor sites, control heavy machinery.

Transportation: Monitor vehicle health, control ticketing systems (buses, trains).

Agriculture: Control irrigation systems, monitor greenhouse conditions.

Retail: Display digital signage, control self-checkout kiosks.

Logistics: Track inventory movement, manage warehouse operations.

Water Management: Monitor water treatment plants, control water distribution.

Specification

Basic

CPU

CM4 Quad-core Cortex-A72@ 1.5GHz

Memory

4GB

Storage

32GB eMMC

M.2 NVMe SSD Slot 2280-M Key (optional)

OS Support

Raspbian

SenseCraft Edge OS

Display

Size

10.1''

Max. Resolution

1280 x 800

Max. Colors

16.7M (8-bit)

Luminance (nit)

400

Viewing Angle (H/V°)

170/170

Backlight Life (hrs)

30000

Touch Type

10-point Capacitive

Pencil Hardness

7H

Video&Audio

Video

HDMI2.0

Audio

2 x Microphone

Buzzer

3.5mm Audio Jack

Camera

CSI (optional)

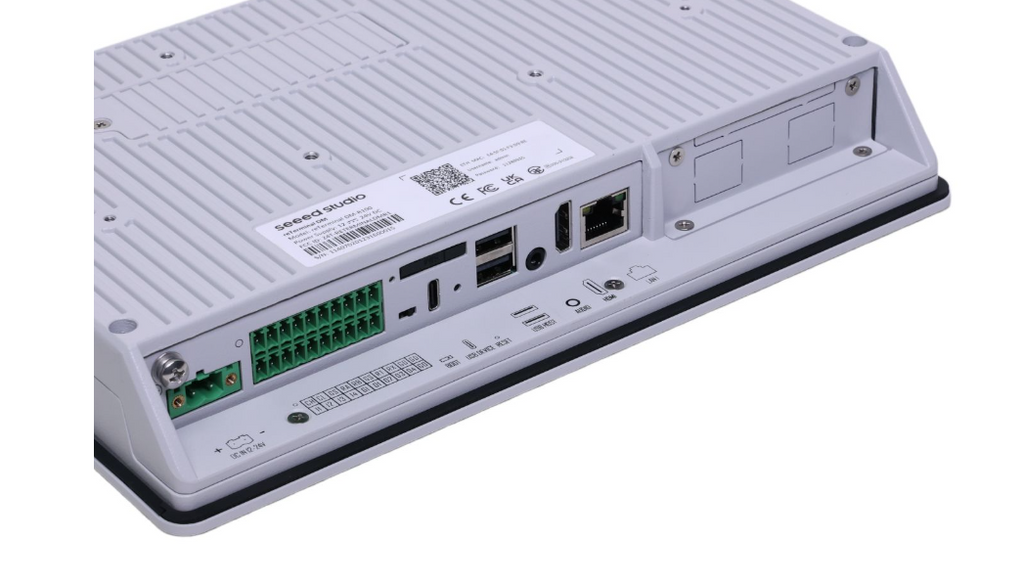

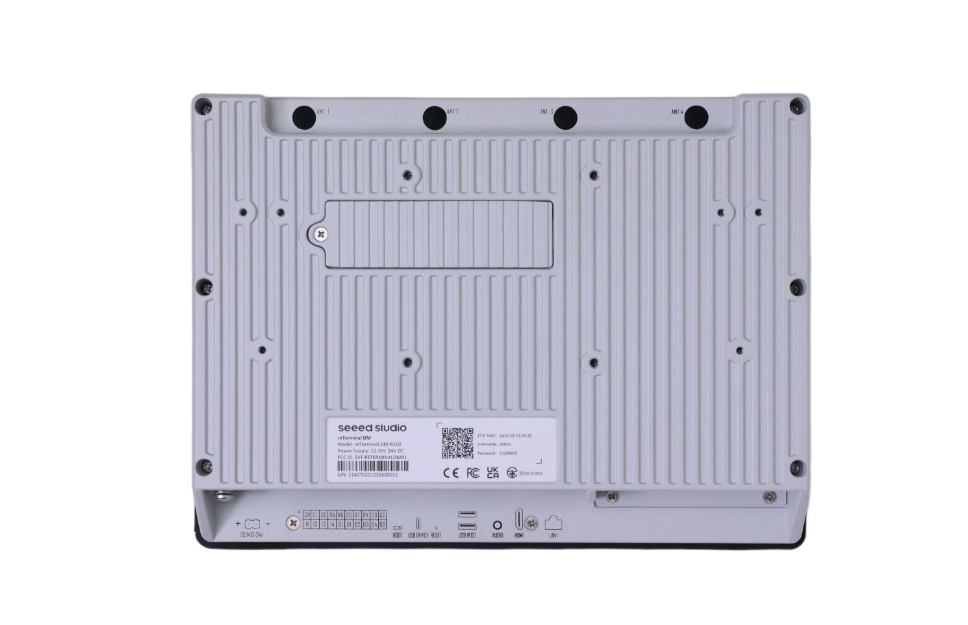

Interfaces

Ethernet

1 x 10/100/1000 Mbps

2 x 10/100/1000 Mbps (optional)

USB

2 x USB-A 2.0 Host

RS485

1 x RS485 > Terminal Block

1 xRS485 > DB9 (optional)

RS232

1 x RS232 > Terminal Block

1 x RS232 > DB9 (optional)

CAN

1 x CAN-BUS > Terminal Block

DI

4 x DI > Terminal Block

DO

4 x DO > Terminal Block

40pin GPIO

Inside

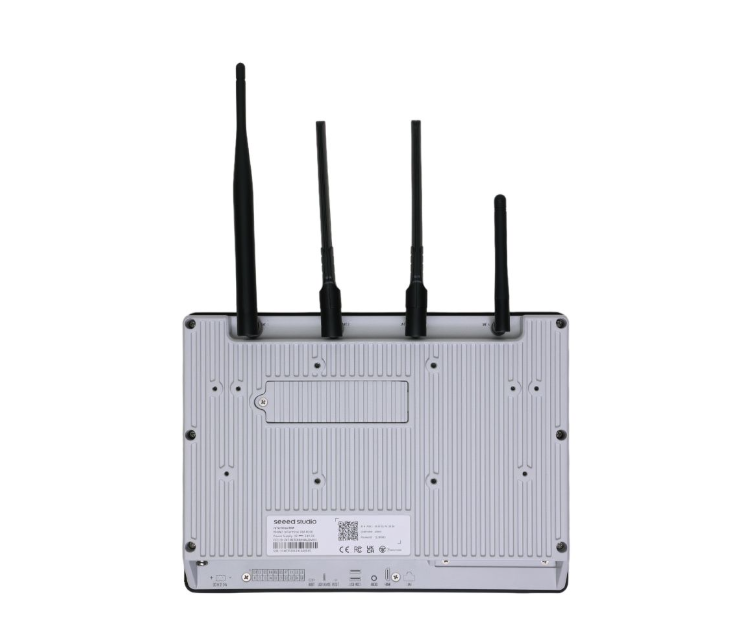

Wireless Communication

Wi-Fi

On-chip Wi-Fi

BLE

On-chip BLE

LoRa®

Mini-PCIe for LoRaWAN® (optional)

Cellular

Mini-PCIe for 4G (optional)

Power

Input

2-pin Terminal Block

PoE

12.95W PoE (optional)

Power Range

12~24V DC

Power Consumption

6W Typ.

9W Max.

Power Switch

NO

Reboot Switch

YES

Environment

Ingress Protection

IP65 Front Panel

Operating Temperature

-10~50 °C

Storage Temperature

-20~70 °C

Humidity (Operating)

10~95% RH

Mechanical

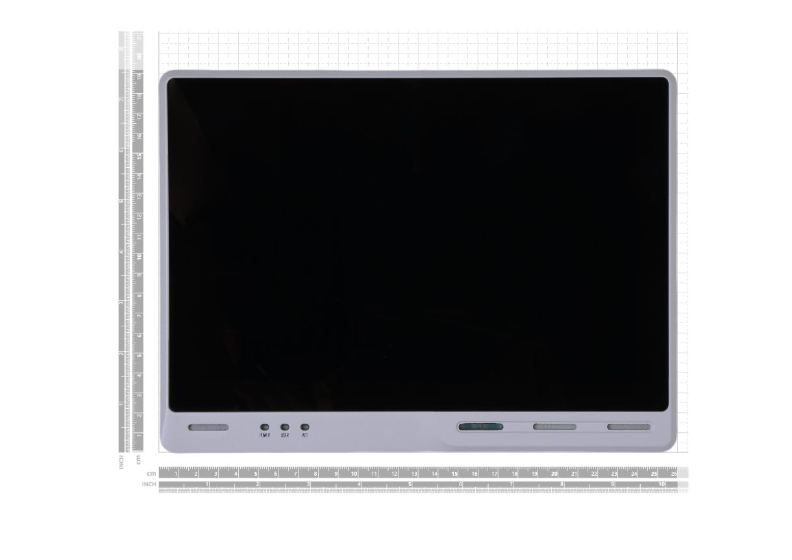

Dimension (W x H x D)

259.4 x 191 x 42.2 mm

Enclosure

Die-cast Aluminum Alloy

Mounting

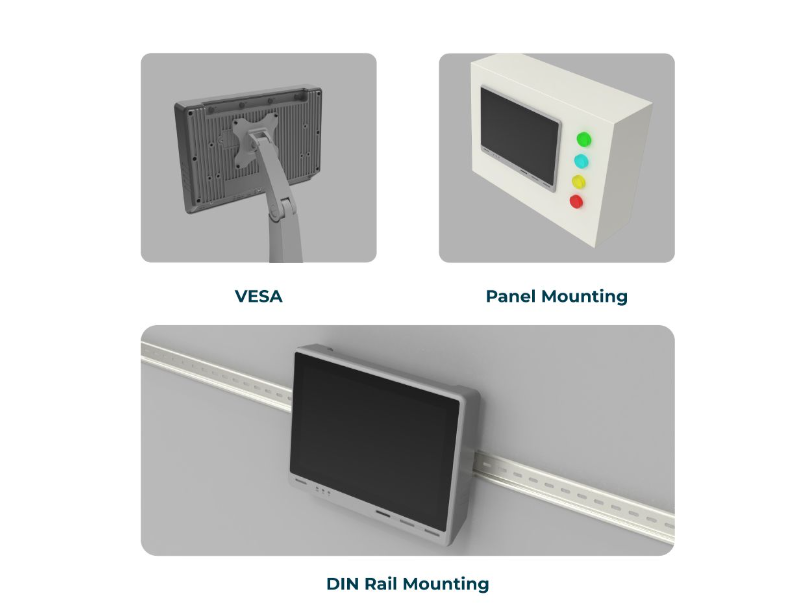

Panel, VESA, DIN-rail

Weight (Net)

1.8Kg

Vibration Resistance

5 Grms random vibration (5 ~ 500Hz) during operation, IEC60068-2-64

Shock Resistance

Operating 50 G peak( 11ms duration), IEC 60068-2-27

Certification

CE, FCC, UCKA, RoHS, TELEC, REACH

EMC

ESD

EN61000-4-2, Level 3

EFT

EN61000-4-4, Level 2

Surge

EN61000-4-5, Level 2

Others

RTC

High Accuracy RTC (with a CR2032 battery)

Hardware WatchDog

1~255s

Security

ATECC608A

Warranty

2 Years

Heat Dissipation

Fanless



Note

The LoRa® Mark is a trademark of Semtech Corporation or its subsidiaries. LoRaWAN® is a mark used under license from the LoRa Alliance®.



Note

Accessories List

SKU

Product Name

How to buy

110991925

POE Module Kit for reTerminal DM

buy online

114992364

Raspberry Pi Compute Module 4 Antenna Kit

buy online

110061501

LoRa Antenna Kit for Wio-WM1302 LoRaWAN Gateway Module

buy online

114992969

Wio-WM1302 LoRaWAN Gateway Module (SPI) - US915

buy online

114993268

Wio-WM1302 LoRaWAN Gateway Module Without SX1262(SPI) - EU868

buy online

110061502

4G Antenna Kit for LTE Cat 4 EC25 Module

buy online

110061521

GPS Antenna Kit for LTE Cat 4 EC25 Module

buy online

113991135

LTE Cat 4 EC25-EUX-mini-PCIe (for European region)

buy online

113991134

LTE Cat 4 EC25-AFXGA-mini-PCIe (for North America region)

buy online

113991174

LTE Cat 4 EC25-AUXGR-mini-PCIe (for Australia region)

contact [email protected]

113991214

LTE Cat 4 EC25-EFA-mini-PCIe (for Thailand region)

contact [email protected]

113991234

LTE Cat 4 EC25-EMGA-mini-PCIe for (for Malaysia region)

contact [email protected]

113991296

LTE Cat 4 EC25-JFA-mini-PCIe (for Japan region)

contact [email protected]

110061505

Power Adapter 12V 2A - US

buy online

110061506

Power Adapter 12V 2A - EU

buy online

112990247

NVMe M.2 2280 SSD  512GB

buy online

112990267

NVMe M.2 2280 SSD 1TB

buy online

114070181

Sliding block for linear guideway rail(including screws)

buy online

110061503

Panel mount Kit for reTerminal DM

buy online

114993112

reTerminal DM Dual LAN and SSD extension

buy online

114993111

reTerminal DM Dual DB9 extension

buy online
