- Super Boost AI Performance: Delivers up to 34 TOPS in MAXN Super Mode, ideal for demanding applications like vision AI, robotics, and generative AI.
- Energy-Efficient Operation: Configurable power modes from 10W to 25W allow for optimized performance and energy consumption.
- Robust Thermal Design: Operates reliably in temperatures from -20°C to 65°C.
- Rich interfaces: features 2xRJ45, SIM card, 4×USB 3.2, HDMI 2.1, and CAN. Also including M.2 Key E/M, Mini-PCIe, 4xCSI for connectivity and cameras.
- Ready for Deployment: Pre-installed with JetPack 6.2 and a 128GB NVMe SSD, supporting AI frameworks like NVIDIA Isaac, Hugging Face, and ROS2/1, enabling rapid development of various AI applications.
Jetson Modules Performance with Super Mode
- Enhanced power management
- Improved higher frame rate processing
- Reduced inference time

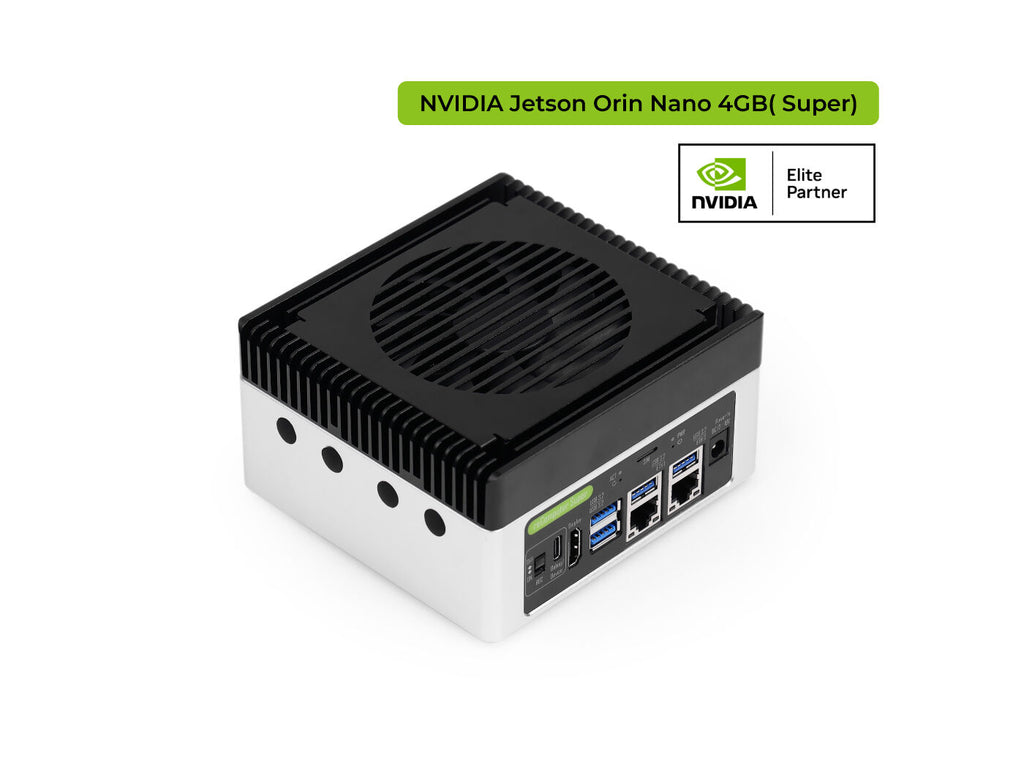

reComputer Super J3010 | reComputer Super J3011 | |
Applications Processor(AP) | NVIDIA Orin™ Nano 4GB | NVIDIA Orin™ Nano 8GB |
AI Performance | Orin Nano 4GB – 34 TOPS(MAXN_SUPER) | Orin Nano 8GB – 67 TOPS(MAXN_SUPER) |
GPU | 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
GPU Max Frequency | 1020 MHz (MAXN_SUPER) | |
CPU | 6-core Arm® Cortex®-A78AE | |
CPU Max Frequency | 1.7 GHz (MAXN_SUPER) | |
Memory | 4GB 64-bit wide LPDDR5 DRAM(up to 34GB/s; 51 GB/s MAXN_SUPER) | 8GB 128-bit wide LPDDR5 DRAM(up to 68GB/s; 102 GB/s MAXN_SUPER) |
Power | 7W - 10W - 25W | 7W - 15W - 25W |
Video Encode | 1080p30 supported by 1-2 CPU cores | |
Video Decode | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) | |
CSI camera | Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) | |
Mechanical | 69.6mm x 45mm 260-pin SO-DIMM connector | |
Carrier Board | ||
Storage | 1x M.2 KEY M PCIe (M.2 NVMe 2242 SSD 128G included) | |
Networking | M.2 KEY E | 1x M.2 Key E for WiFi/Bluetooth module |
Mini PCIe | 1x mini-PCIe for LTE 4G module | |
Ethernet | 2x RJ45 Gigabit Ethernet | |

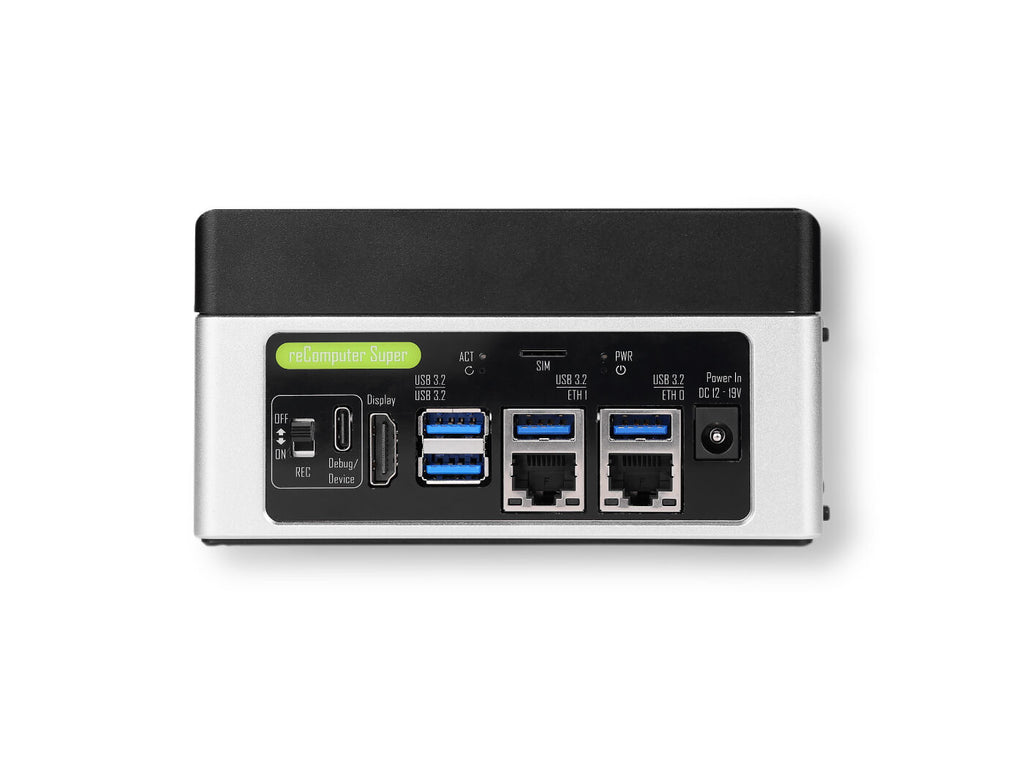

I/O | USB | 4x USB 3.2 Type-A (5Gbps); 1x USB 2.0 Type-C (Device Mode/Debug); |
Camera | 4x mipi CSI(2-lane 15-Pin) | |
CAN | 1 x CAN(4-Pin Header) | |
Display | 1x HDMI 2.1 | |
Fan | 1x 4-Pin 1.25mm Fan Connector (5V PWM) 1x 4-Pin 2.54mm Fan Connector (12V PWM) | |
Extension Port | 1x 40-Pin extension header 1x 12-Pin control and UART header | |
RTC | 1x RTC 2-pin 1x RTC Socket | |
LED | 2x LED(PWR and ACT) | |
Button | 1x PWR 1x RESET | |
Switch | 1x REC | |
Antenna hole | 4x Antenna Hole | |
Power | 12-19V 5525 Barrel DC Jack | |
Jetpack Version | Jetpack 6.2 | |

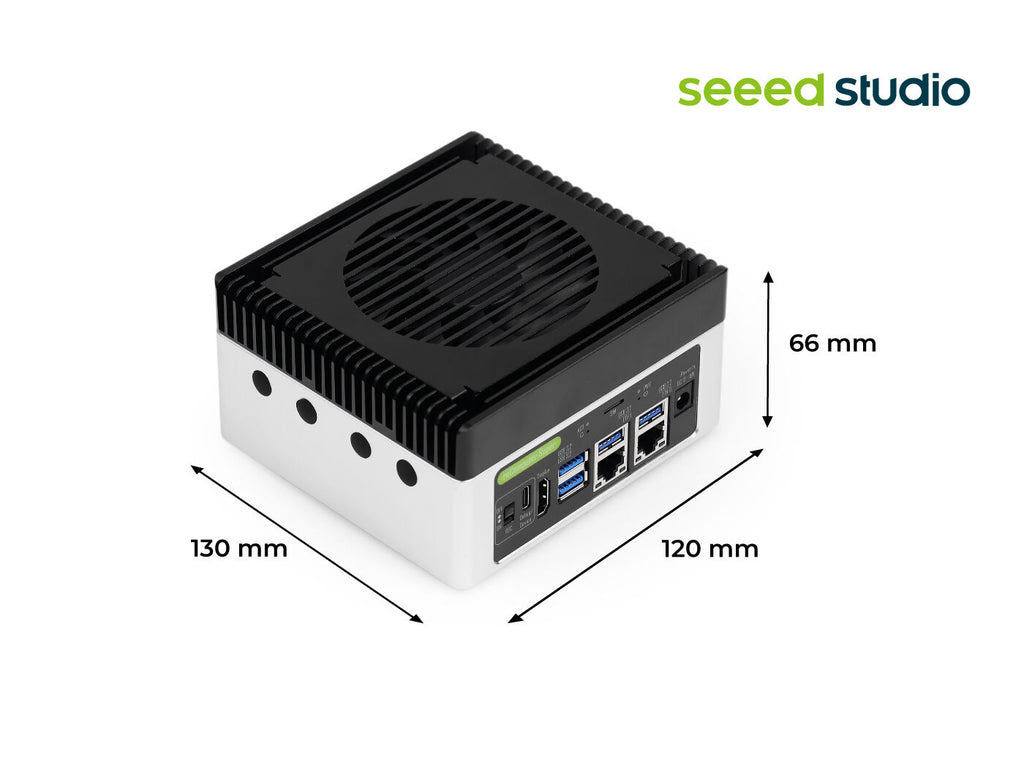

Mechanical | Dimensions (W x D x H) | 130mm x 120mm x 66mm |
Weight | 1110g | |
Installation | Desk, Wall-mounting | |
Operating Temperature | -20℃~65℃ | |
Warranty | 2 Years | |
Certification | RoHS,REACH,CE,FCC,UKCA, KC | |
The NVIDIA AI software stack is designed for accelerate AI application and deployment:
Designed for Edge AI Computer Vision Applications:
Jetson Platform Services provide a platform to simplify development, deployment and management of Edge AI applications on NVIDIA Jetson like BEV sensing demo with 4 USB cameras.
Designed for demanding AI applications：
Such as AMR, smart retail, industrial automation, and video surveillance, smart video analysis scenario
We have Jetson-example prepared for you! It offers one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8, and others. We have configured all environment for you to provides single command deployment of projects.
Mechanical Document-reComputer Super
Mechanical Document-reComputer Super PCBA
Seeed Nvidia Jetson Success Cases

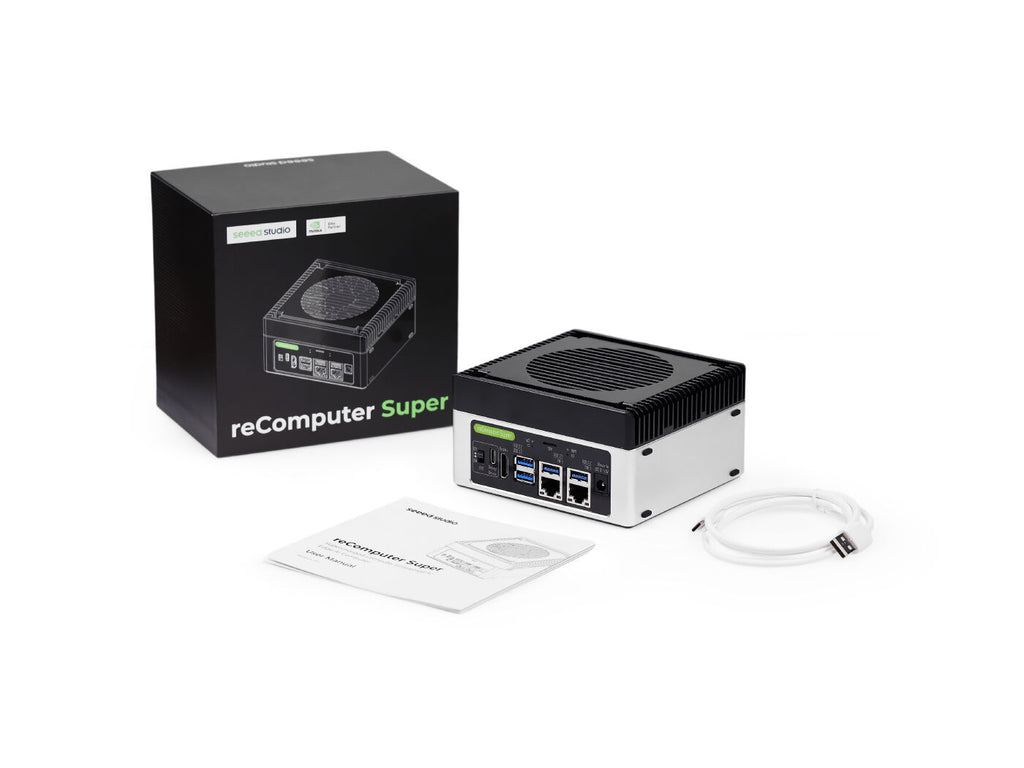

Jetson Orin™ NX 16GB/NX 8GB /Nano 8GB/Nano 4GB module | x 1 |
Seeed Carrier Board (reComputer Super J401) | x 1 |
128GB NVMe SSD | x 1 |
Aluminum Case and Heatsink with Fan | x 1 |
USB Cable; Type A to Type C | x 1 |
User Manual | x 1 |
| HSCODE | 8471504090 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
