Fully Open-Source Ecosystem on Hardware and Software
Quick Setup & Precision Movement
- Lego-like assemble package support
- 360° yaw Rotation Full coverage and 180° pitch Range From floor to ceiling
- Brushless Motor Precision: 01° stepping accuracy for smooth target tracking.
AI-Powered Motion Control
- Ready Custom AI Models: Built-in YOLO11 with commercial license, Roboflow & SenseCraft AI support.
- Smart Tracking: AI auto-adjusts gimbal movement.
Flexible Development for All Skill Levels

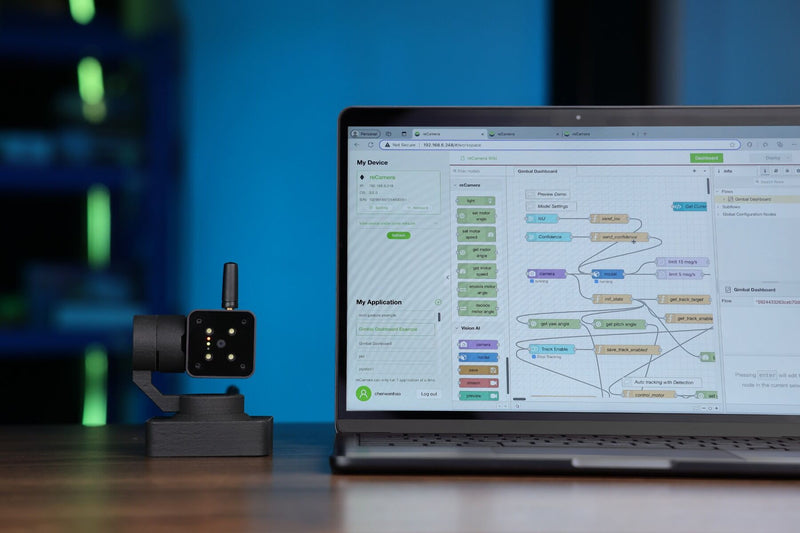

- Built-in Node-RED for low-code flow customization on gimbal movement.
- C++ SDK supported for deeper development.
Processing System | ||
SOC | SG2002 | |
CPU | C906@1GHz + C906@700MHz | |
AI Performance | 1 Tops @ Int8 | |
MCU | 8051 @ 8KB SRAM | |
Operating System | Linux | |
Memory | 256 MB | |
Video Encoder | 5MP @ 30Fps | |
Basic | ||
eMMC | 8GB / 64GB | |
Power Supply | 12V DC Jack to XT30 connector | |
Power Consumption(static) | 12V,185mA | |
Power Consumption(peak) | 12V,3A | |
Camera | ||
Camera Sensor | OV5647 | |
Resolution | 5M(2592*1944) Pixels | |
Chip | 1/4" CMOS Sensor | |
Pixel Size | 1.4um | |
Output Format | RAW 10 | |
Maximum Frame Rate | Full size: 15fps | |
Aperture | F2.8 | |
Equivalent Focal Length | 3.46mm | |
Field of View | 65° | |
Distortion | <1% | |
Lens structure | 5P | |
Interface | ||
USB | USB 2.0 Type-C | |
Wireless | Wi-Fi 2.4G/5G Bluetooth 4.2/5.0 | |
Button | 1 x Reboot Button, 1 x User Button | |
Fill LEDs | 4 x 0.3w White Light | |
LED | 1 x Power Indicator, 2 x IO programmable indicator | |
Mic | On-Board Mic | |
Speaker | External Speaker | |
Motor Spec | MS3008 | MS3506 |
Funtion | for Pitch Rotation | for Yaw Rotation |
Turns | 54 | 60 |
Rated Voltage(V) | 12 | 12 |
Max Speed(rpm) | 2000 | 2100 |
Rated Torque(N.m) | 0.04 | 0.05 |
Rated Speed(rpm) | 1160 | 1250 |
Rated Current(A) | 0.64 | 0.79 |
Max Power(W) | 4.6 | 6.4 |
Motor Poles | 14 | 14 |
Motor Weight(g) | 49 | 63 |
Drive Input Voltage (V) | 6~16 | 6~16 |
Communication | CAN | CAN |
Communication Frequency (Hz) | CAN@1Mbps:2KHz | CAN@1Mbps:2KHz |
Encoder | 15 bit Magnetic Encoder | 15 bit Magnetic Encoder |
CAN Baud Rate | 100K、125K、250K、500K、1M | 100K、125K、250K、500K、1M |
Control Mode | Open Loop(24KHz) /Speed Loop(4KHz) /Position Loop(2KHz) | Open Loop(24KHz) /Speed Loop(4KHz) /Position Loop(2KHz) |
Ambient Conditions | ||
Operating Temperature | -20～50 ℃ | |
Operating Humidity | 0～90% | |
Others | ||
Heat Dissipation | Fanless | |
Warranty | 1 year | |
Mechanical | ||
Finished ProductDimension(W x H x D) | 68x112x71mm | |
Enclosure | Polyamide(PA) Nylon | |
Weight(Net) | 230g | |
- Traget tracking
- Low-Code model customization，Learn AI as you Play!
- Open API, connect to everywhere.
-Home Assistant
-XIAOZHI

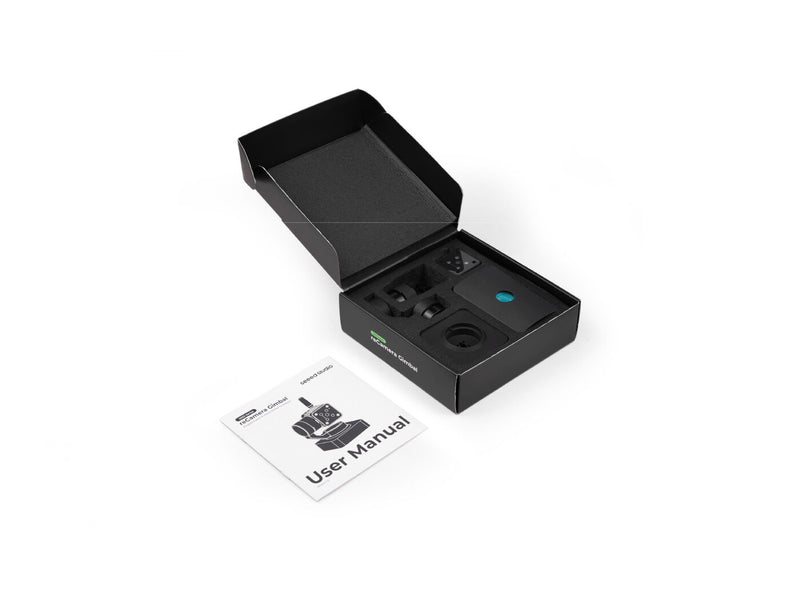

- reCamera 2002w x 1
- reCamera Gimbal Head x 1
- reCamera Gimbal Arm x 1
- reCamera Gimbal Base Cover x 1
- reCamera Gimbal Base x 1
- Power Supply Board x 1
- Antenna x 1
- Motor MS3506 x 1
- Motor MS3008 x 1
- Screw A(KAB3.0x10.0mm) x 5
- Screw B(KM2.0x6.0mm) x 7
- Screw C(M2.0x10.0mm) x 5
- Screw D(KM2.5x4.0mm) x 9
- Screw E(KA2.0x6.0mm) x 5
- DC Power Female Jack(5521) to XT30 Connector x 1
- XT30(2+2)-F Connector with Wire x 1
- Micro JST PH 2.0 6-Pin Female to Female Wire x 1
- Screw Driver(M2.5xL55mm) x 1
- Hex Key x 1
- Motor Adapter Board x 1
- User Manual x 1
| HSCODE | 8525891900 |
| USHSCODE | 8525501000 |
| UPC | |
| EUHSCODE | 8517600000 |
| COO | CHINA |
