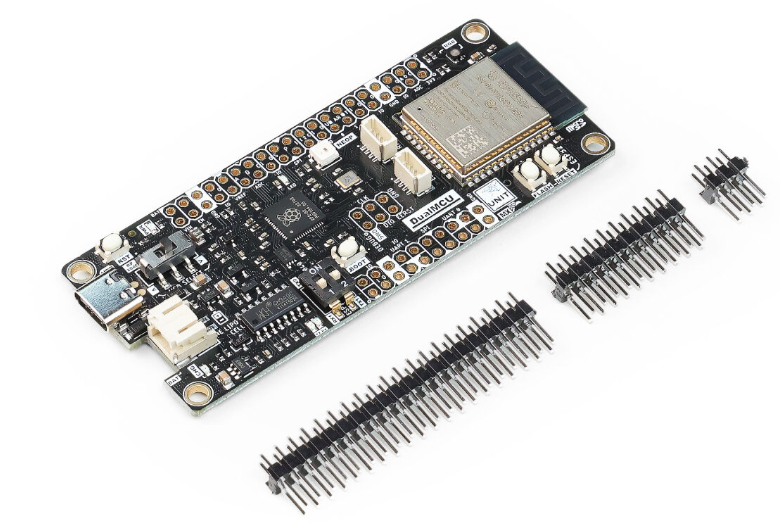

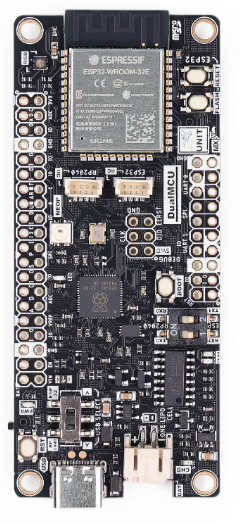

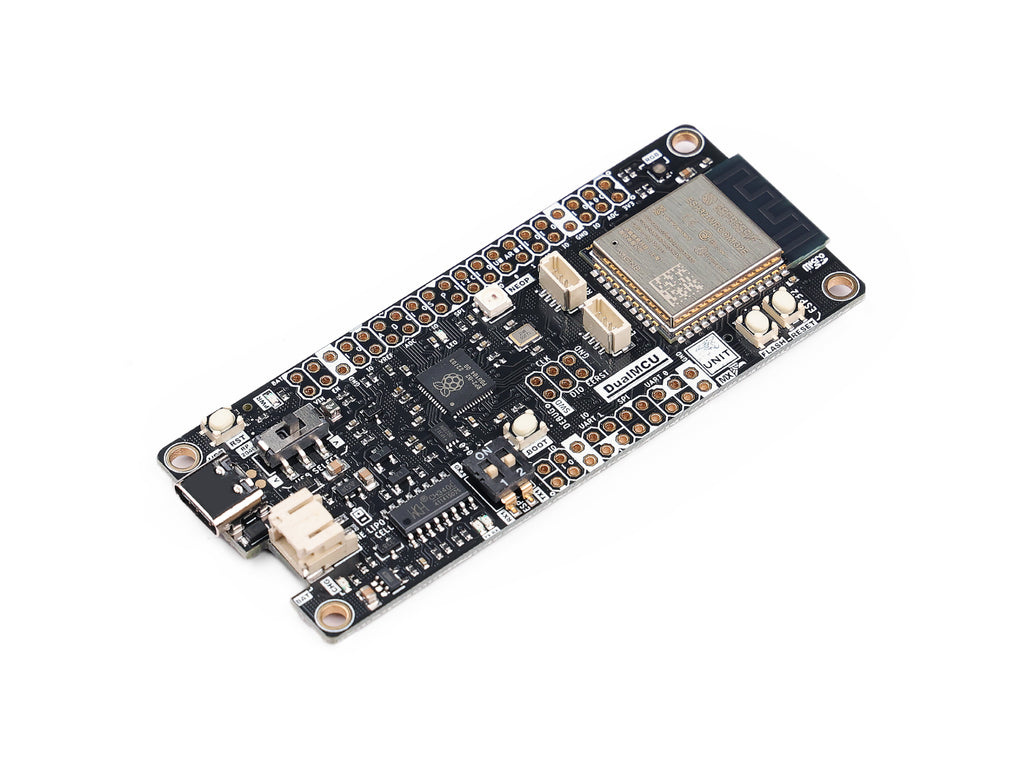

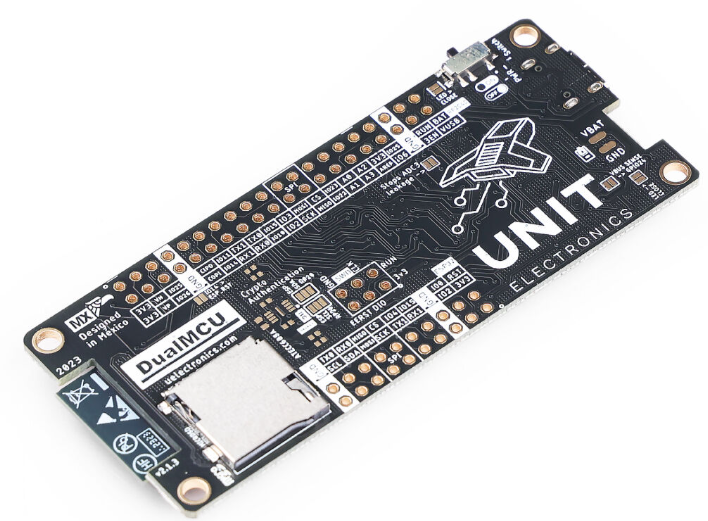

DUALMCU RP2040+ESP32 Development board

Price:
Sale price A$37.72   Inc. GST
SKU:
SS114993411
Out Of Stock

We will notify you when this product becomes available.

Unit DualMCU brings the Raspberry Pi RP2040 microcontroller plus an Espressif ESP32 WROOM chip in a simple one module. This board is designed for Internet of Things projects with Bluetooth and Wi-Fi connectivity, and offers opportunities for low-power development.
  • Dual MCU Design: Raspberry Pi RP2040 Microcontroller(133MHz 32bit Dual Core Arm® Cortex®-M0+,264kB on-chip SRAM, 2 MB external Quac SPI NOR flash) and Espressif ESP32 WROOM 32 (240MHz 32bit Dual core Xtensa LX6, 520kB on-chip SRAM, 8 MB Integrated SPl flash).
  • Multiple Develop Platform: Support Arduino / Micropython / CircuitPython development
  • Multiple Development Interfaces: 11 x 12 bits ADC, 3x12C, 2x SPI, SDIO, 3x UART, I2S



Parameter

Description

RP2040

Architecture

ARM Cortex-M0+

Clock speed

133MHz

RAM

264kB

Flash Memory

● 2MB

● Support for up to 16MB external flash memory

PWM

16 channels, 8-bit or 16-bit resolution

ESP32 WROOM-32E

Architecture

Xtensa Dual-Core 32-bit LX6

Clock speed

up to 240MHz

RAM

● 520kB

● Internal flash memory: 4MB

Wireless connectivity

Wi-Fi (802.11 b/g/n) and Bluetooth v4.2 BR/EDR and BLE

Support for USB OTG (On-The-Go)



Memory

Flash

W25Q16JVUXIQ 2MB NOR Flash

SPI

532MHz Quad SPI

Transfer rate

66MB/S Continuous data transfer rate

General Spec



MCU

● Raspberry Pi RP2040 Microcontroller(133MHz 32bit Dual Core Arm® Cortex®-M0+,264kB on-chip SRAM, 2 MB external Quac SPI NOR flash)

● Espressif ESP32 WROOM 32 (240MHz 32bit Dual core Xtensa LX6, 520kB on-chip SRAM, 8 MB Integrated sPl flash).

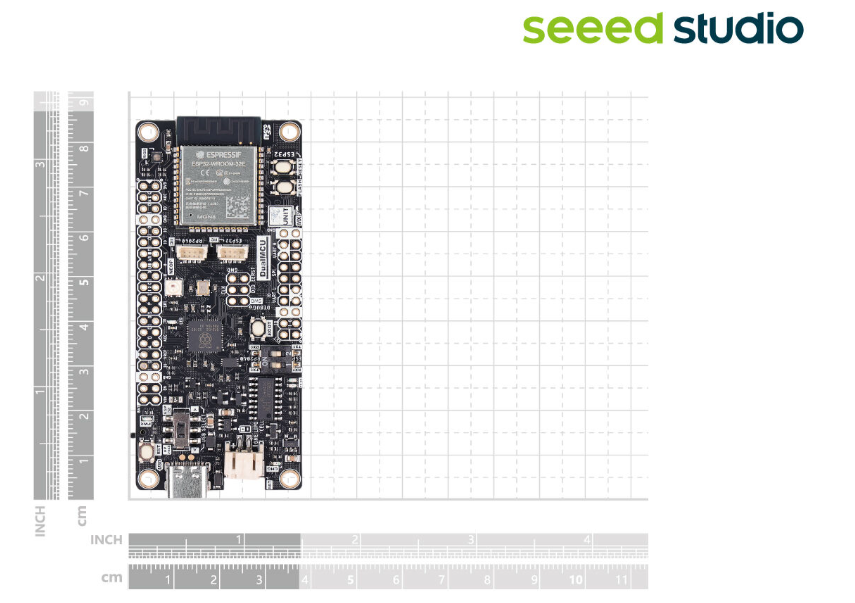

Dimensions

84mm x 36mm x 6.6mm

PCB Color

Black

Weight

22.57g

USB to UART

CH340C

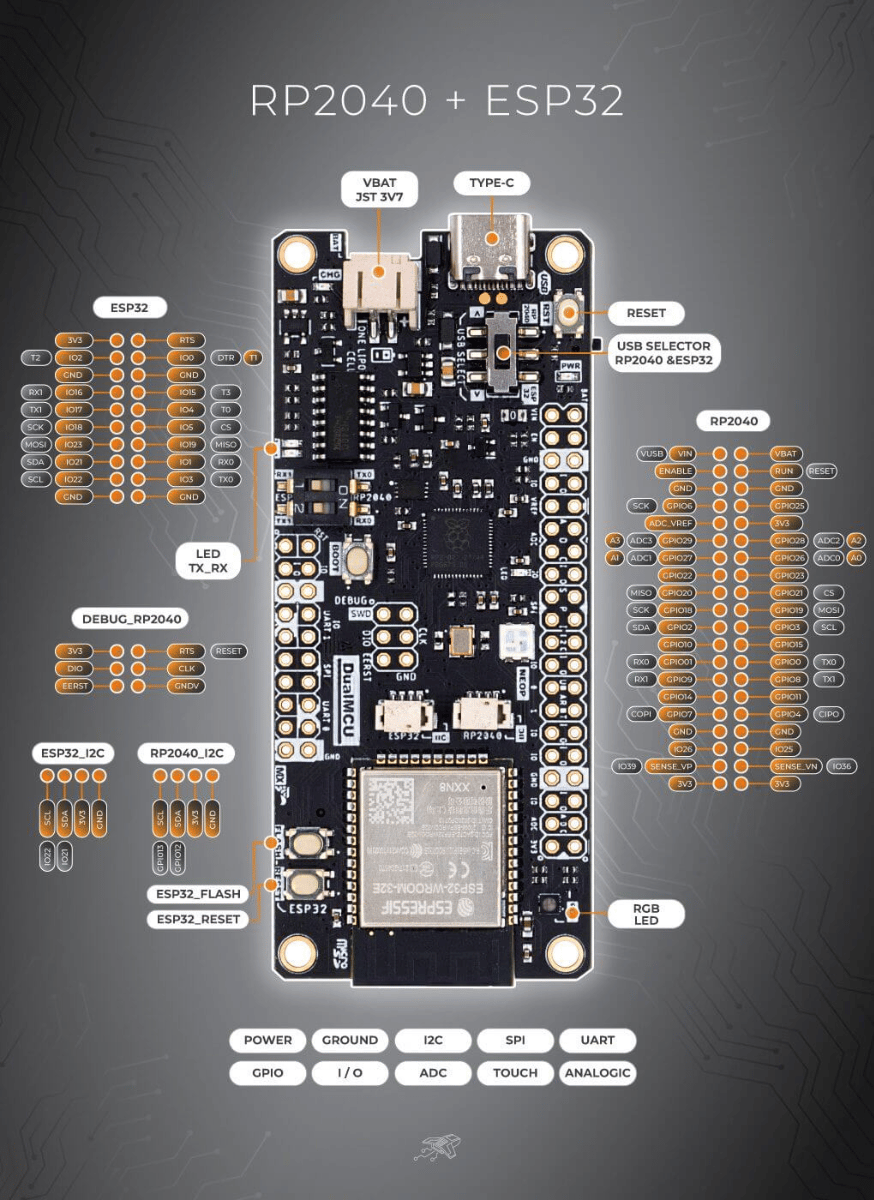

Connectors

● 2 x I2C JST-SH Pitch 1mm

● 1 MicroSD

● USB Type C

● JST-SH 2p Pitch 2mm: Battery connection

Double 2.54mm male header strip

● 2×3 pins

● 2×20 pins

● 2×10 pins

Supported peripherals

● 11 x 12 bits ADC

● 3 x 12C (Two of which have a JST-1.0 mm pitch on-board connectors, compatible with STEMMA QT, QWlC and GROVE devices with no soldering)

● 2 x SPI

● 1 x SDIO

● 3 x UART

● 1 x I2S

● 3 x Capacitive Touch Sensor from ESP32 microcontrolle

● Two-Wire Automotive Interface (TWAl@), compatible with ISO11898-1 (CAN Specification 2.0)

● USB 1.1 controller and PHY, with host and device support

LEDs

● RGB WS2812B NoePixel: Connection to RP2040 GPIO

● RGB Common Cathode: Connection to ESP32 GPIO

● Built-in LED: General purpose LED connected to GPIO25 RP2040

Button and Switch

● Power Switch

● USB communication selector

● DIP Switch for UART communication

● RESET button and Bootloader for quick reboots of RP2040

● RESET and FLASH/BOOT button

Output

● 3.3V LDO 600mA

● 3.3V Power/Enable pin

● VUSB Output/VIN: 3.2 to 6V DC

● Interface for charging 200mA batteries with built-in LED

Power

● USB C connector to 5V

● External 3.7V lipo battery

● External power supply through pin "Vin" (max. 6v)

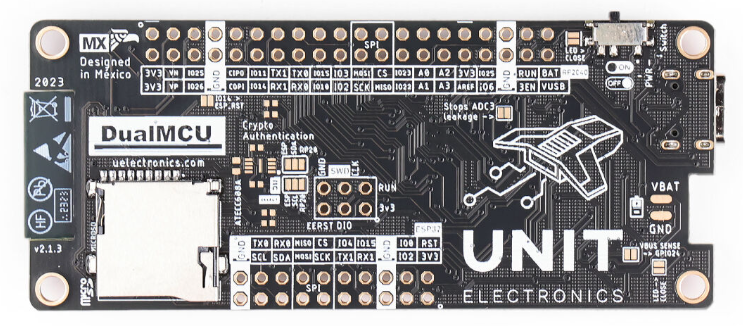

MicroSD Card

● Communication interface: VSPI

● Connection to ESP32
