Feature
- Open-source RISC-V and FPGA Single Board Computer: Powered by Microchip's PolarFire® MPFS025T FCVG484E 5x core RISC-V SoC with FPGA fabric, operating at up to 667 MHz
- Power-efficient and highly flexible: Contain low-power FPGA fabric that is highly flexible and can accommodate custom instructions and peripherals
- Onboard Storage: Include 2GB LPDDR4 and Kingston 16GB eMMC on the board
- Versatile Connectivity: Offer a Gigabit Ethernet interface, an integrated Host / Device / Power Supply functions in one USB 2.0 Type-C port, and one SYZYGY High speed connector
- Rich Extensions: Provide 1x M.2 Key E supported wireless module, 1x CSI supported 4-lane camera, 1x microSD card slot, 2* 46 pins BeagleBone Header, 12x user LEDs, 1x Reset button, and 1x User button
Description

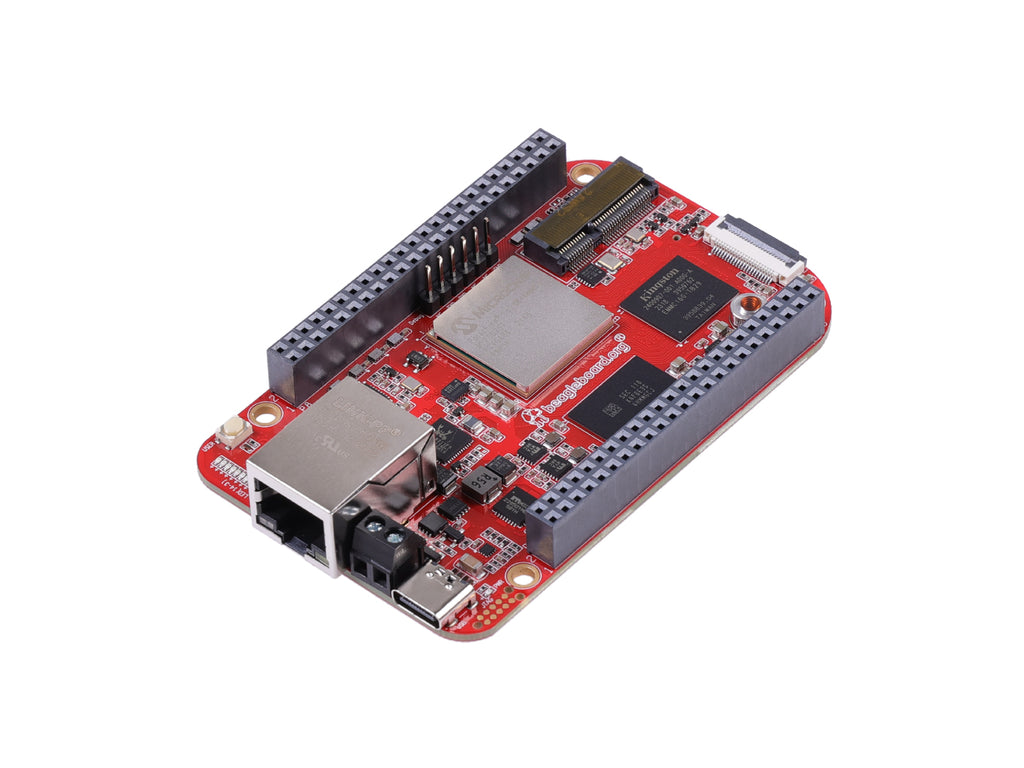

BeagleV® - Fire is a compact, powerful solution for computing needs. The 5x-core RISC-V SoC from Microchip's PolarFire® MPFS025T FCVG484E and integrated FPGA fabric allow the device to reach 667 MHz while maintaining low-power efficient operation and instruction.
The BeagleV® - Fire - RISC-V, FPGA fabric features onboard 2GB LPDDR4 and a Kingston 16GB eMMC for internal storage. An expansive microSD card slot provides the ability to expand the device's storage to meet specific needs.
This board enables expanded connection capabilities, boasting a Gigabit Ethernet interface, a USB 2.0 Type-C port with integrated hosting, device, and power supply functions, as well as a SYZYGY High-speed connector.
Coming with rich extensions, this development board provides the CSI connector with 22 pins and provides support for a 4-lane camera. It also supports a Wi-Fi module through the M.2 Key E slot to enable wireless connection. With the standard 2*46 pins BeagleBone® Header, the device offers GPIO pins for connecting external devices. Additionally, it includes a 6-pin UART debug connector and a 10-pin JTAG port for debugging purposes.
Comparison between BegaleV - Fire and BeagaleV - Ahead
BeagleV® - Fire | BeagleV® - Ahead | |
Processor | Microchip's PolarFire® MPFS025T FCVG484E ( 5x core RISC-V SoC with FPGA fabric) | T-Head TH1520 (quad-core Xuantie C910 processor) |
USB Port | 1* USB 2.0 TypeC ( Host / Device / Power) | 1* USB3.0 Micro-B OTG |
Multimedia | 1*CSI | 2*CSI,1*DSI, 1*HDMI |
Other Connector | 1* M.2 Key E, support 2.4GHz/5GHz WiFi module 1* SYZYGY High speed connector | 1* MikroBus |
Application
- Edging Computing
- Embedded Systems
- RISC-V Dev Kit
- FPGA Dev Kit
- Education
Specification
Parameters | Description |
Processor | Microchip's PolarFire® MPFS025T FCVG484E |
5x core RISC-V SoC with FPGA fabric: 4x Application core, 1x monitor/boot core | |
Memory | 2GB, LPDDR4 |
Storage | Kingston 16GB eMMC |
Wireless | 1 x M.2 Key E, support 2.4GHz/5GHz WiFi module |
LAN | 1 x Gigabit Ethernet |
USB Port | Connectivity: Host / Device Power Input: 5V |
SD Card | 1 x microSD card slot |
CSI | 1 x CSI connector (22 pins), support 4 lanes Camera |
LEDs | 12 x User LEDs |
1 x Power LED | |
Buttons | 1 x User button |
1 x Reset button | |
Power | 5V Screw terminal / USB C |
GPIO | 2*46 pins BeagleBone® Header |
Debug | 6 pins UART debug connector |
10 pins JTAG port | |
Cerfication | CE,FCC, RoHS, REACH |
Other Connectors | 1 x SYZYGY High speed connector, designed for:
|
Working Temperature | 0°C~70°C |

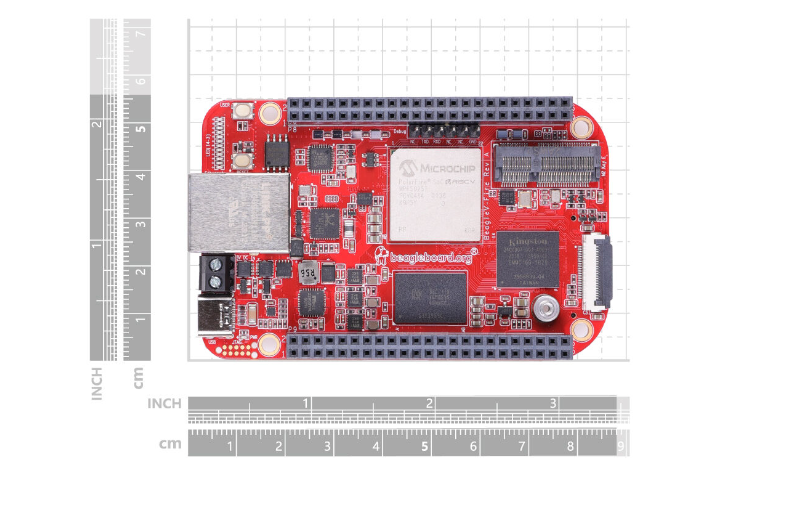

Board Dimension | 86.38*54.61*18.8mm |
Gross Weight | 106g |
Net Weight | 45.8g |

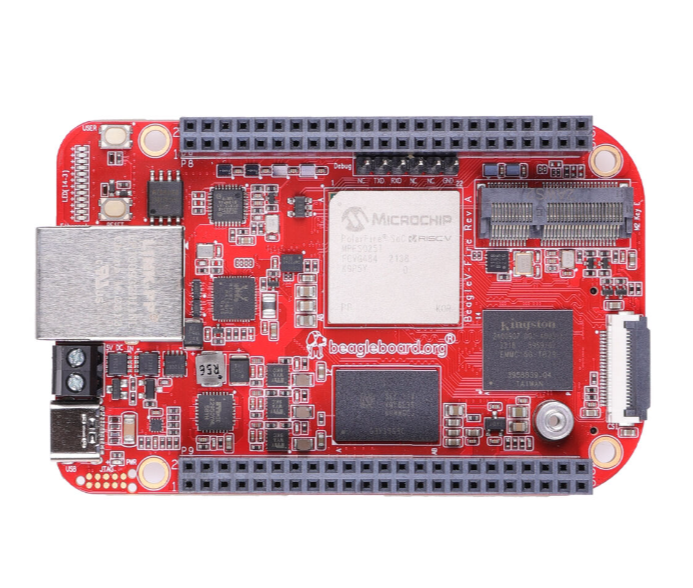

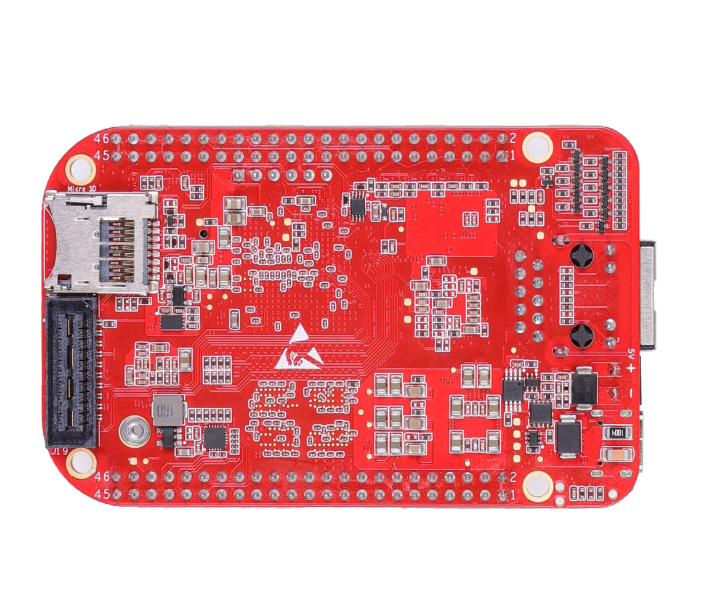

Hardware Overview

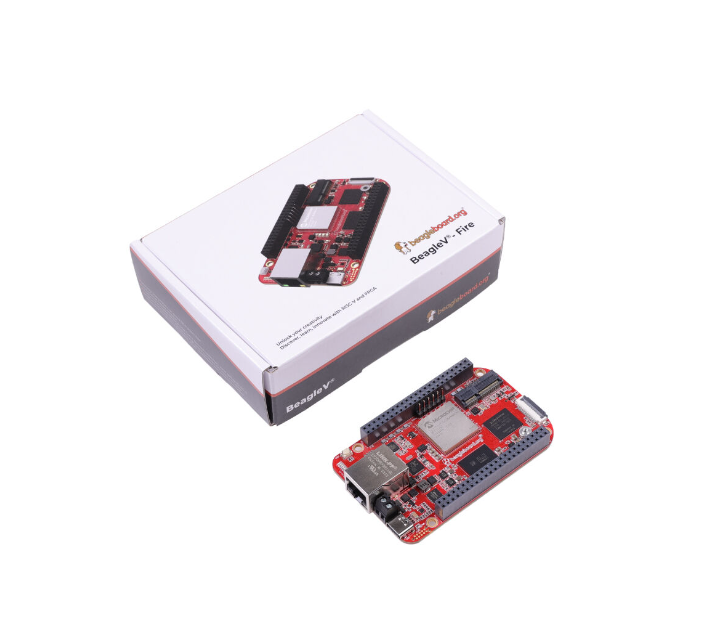

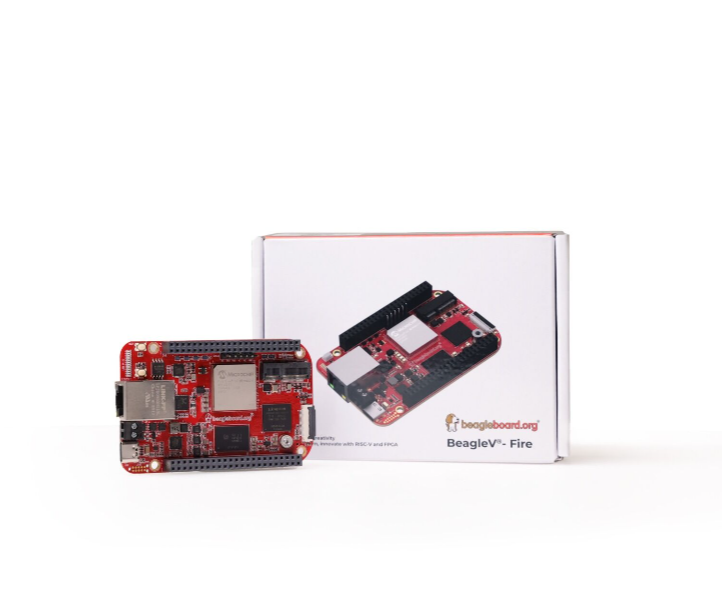

Part List
BeagleV®-Fire Boards | x1 |
Quick start card | x1 |
ECCN/HTS
| HSCODE | 8471504090 |
| USHSCODE | 8543708800 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
| CE | 1 |
| FCC | 1 |
