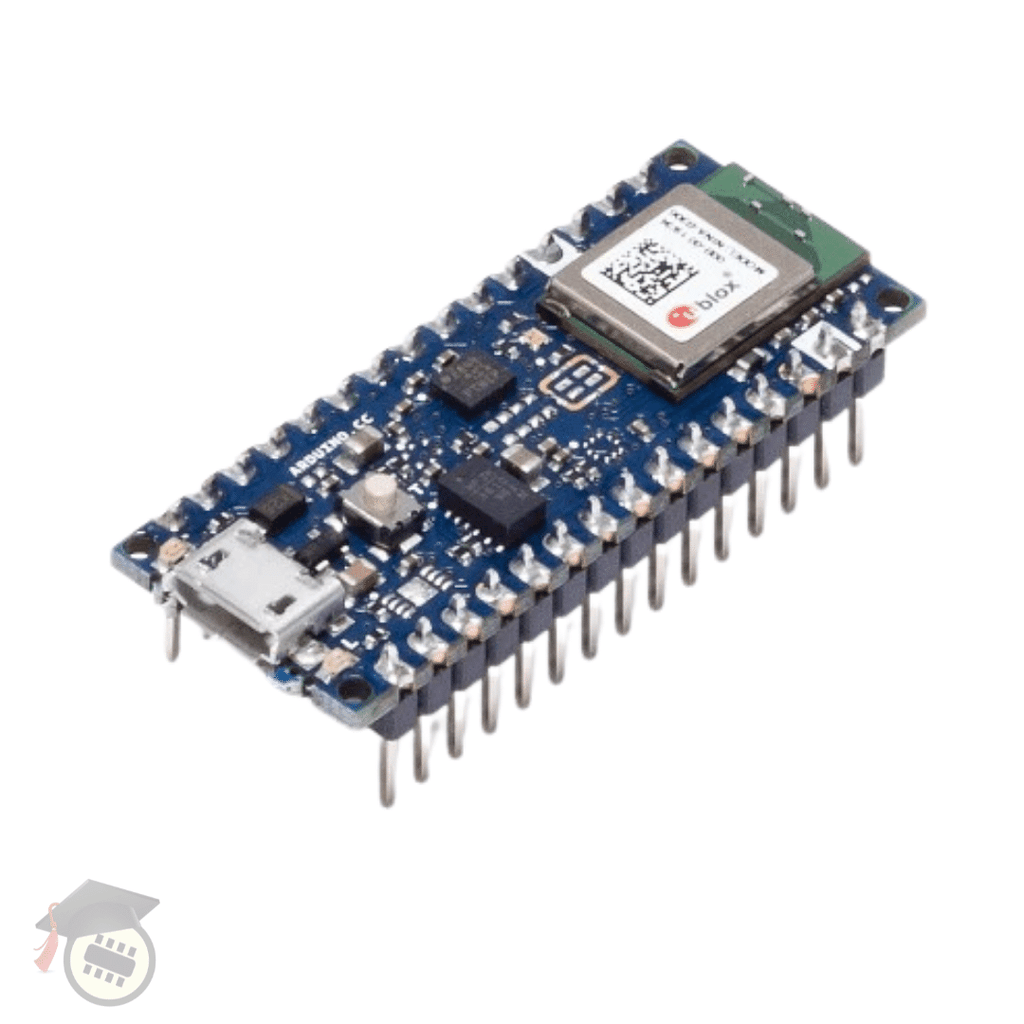

Arduino Nano 33 BLE with headers

1 review
Age 14+
Skill level - IntermediateSkill level - Advanced
Price:
Sale price A$51.43   Inc. GST
SKU:
ARD-ABX00034
17 units Ships in 24 hours
50 units Ships in 10 to 15 days
Age 14+
Skill level - IntermediateSkill level - Advanced
Text-based Programming
Programming Device - Computer
The latest addition into Arduino Nano family is Nano 33 which is 3.3v compatible boards, unlike 5V Arduino boards.

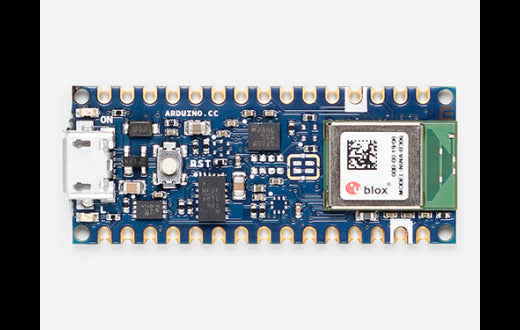

Arduino Nano 33 BLE without headers is 3.3V compatible board. Arduino Nano 33 BLE is the tiniest product made by Arduino with Bluetooth low energy and embedded inertial sensor. It includes the 9-axis inertial sensor which makes the board perfect for any kind of wearable devices and it can also be used for a large range of scientific experiments which requires the need of short distance wireless communication.

The Arduino Nano 33 BLE is an upgraded version of the traditional Arduino Nano, but with more powerful processor, nRF52840 from Nordic Semiconductors, a 32-bit ARM® Cortex™-M4 CPU running at 64 MHz. This will allow you to code the larger programs which was not possible in Arduino Uno, as the program memory is 32 times bugger and the RAM is 128 times bigger. The key processor includes the Bluetooth and pairing via NFC and ultra-low power consumption more. The Nano 33 BLE comes with a 9-axis inertial measurement unit (IMU) which means that it includes an accelerometer, a gyroscope, and a magnetometer with 3-axis resolution each. This makes the Nano 33 BLE the perfect choice for more advanced robotics experiments, exercise trackers, digital compasses, etc.

Arduino Nano 33 BLE pin diagram



Resources used for programming:



    The Arduino Nano 33 BLE is based on the nRF52840 microcontroller.
    Here are the technical specifications for Arduino Nano 33 BLE:

    MicrocontrollernRF52840 (datasheet)
    Operating Voltage3.3V
    Input Voltage (limit)21V
    DC Current per I/O Pin15 mA
    Clock Speed64MHz
    CPU Flash Memory1MB (nRF52840)
    SRAM256KB (nRF52840)
    EEPROMnone
    Digital Input / Output Pins14
    PWM Pinsall digital pins
    UART1
    SPI1
    I2C1
    Analog Input Pins8 (ADC 12 bit 200 ksamples)
    Analog Output PinsOnly through PWM (no DAC)
    External Interruptsall digital pins
    LED_BUILTIN13
    USBNative in the nRF52840 Processor
    Length45 mm
    Width18 mm
    Weight5 gr (with headers)
