XY-Plotter Robot Kit V2.0 (With Electronics)

4 reviews
Sale price A$470.00   Inc. GST
Out Of Stock

We will notify you when this product becomes available.

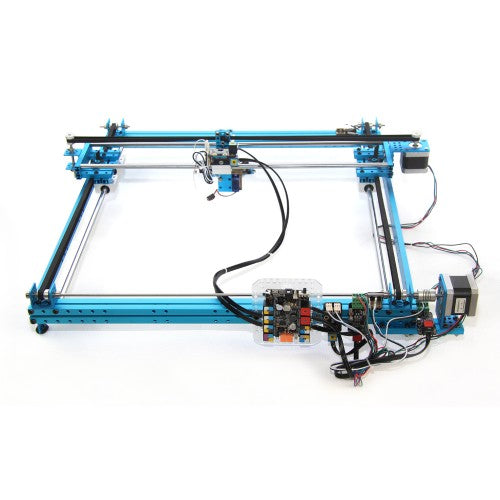

XY Plotter Robot Kit is a drawing robot that can move a pen or other instrument to draw digital artwork on a flat surface. It can also be developed into a laser engraver by adding the Laser Engraver Upgrade Pack.

 Part List:

1 x Beam 0824-16

4 x Beam 0824-48

1 x Beam 0824-80

4 x Beam 0824-96

2 x Beam 0824-112

2 x Beam 0824-496

1 x Beam 0808-80

2 x Beam2424-504

2 x Bracket 3x3

5 x Plate 3x6

5 x Bracket U1

3 x Belt Connector

2 x Stepper Motor Bracket B

1 x K-Power 9g Micro Servo

10 x Shaft Collar 4mm

1 x Flexible coupling 4x4mm

4 x Linear Motion Shaft D8X496mm

6 x Linear Motion Slide Unit 8mm

10 x Flange Bearing 4x8x3mm

1 x HEX Screwdriver 2.5mm

1 x Cross Screwdriver 3mm

2 x HEX Allen Key 1.5mm

1 x Wrench 7mm

50 x Nut M4

10 x Countersunk Screw M3x8

26 x Headless Set Screw M3x5

16 x Plastic Rivet R4060

6 x Plastic Rivet R4100

1 x 6P6C RJ25 cable-35cm

2 x 6P6C RJ25 cable-50cm

1 x Wall Adapter Power Supply - 12VDC

1 x USB A-Male to B-Male Cable

1 x Base Bracket

4 x Me Micro Switch B

1 x 9g micro servo bracket

1 x Linear Motion Shaft D4x512mm

1 x Linear Motion Shaft D4x80mm

3 x Nut M2

3 x Cross recessed pan head screw M2×10

30 x Socket Cap Screw M4×14

28 x Socket Cap Screw M4×16

12 x Socket Cap Screw M4×22

36 x Socket Cap Screw M4×8

6 x Cuttable Linkage 3

30 x Nylon cable ties 2*100

5 x Rubber band

1 x Me Orion(Base on Arduino UNO)

2 x Me Stepper motordriver

3 x RJ25 Adapter

2 x 6P6C RJ25 cable-20cm

6 x Timing Pulley18T

3 x Open-end Timing Belt (1.3m)

2 x D Shaft 4x56mm

1 x Threaded Shaft 4x39mm

18 x Socket Cap Screw M4×30

20 x Plastic Ring 4x7x2mm

2 x 42BYG Stepper Motor



  • This kit consists of over 60 kinds of components from Makeblock, including beams, brackets, motors, etc. Here's a picture of all the components.
  • XY Plotter V2.0 can be controlled by 2 software, mDraw, and Benbox.
  • mDraw is a cross-platform open-source software developed by Makeblock
  • Compatibility: mDrawBot (mScara, mCar, mEggBot, mSpider), XY Plotter kit (servo mode, laser mode)
  • OS Environment: Windows, Mac
  • Supported File Type: *.svg, *.bmp (convert to *.svg)
  • Benbox is compatible with both the servo mode and laser mode of XY plotter. One of the best things about using Benbox is that Benbox supports gray-scale engraving, and editing figures and characters within the software.
