Grove - 3-Axis Digital Compass

$24.71 AUD Inc. GST


SKU SS101020034
Ships in 24 hours 1 units

increment
decrement
decrement increment

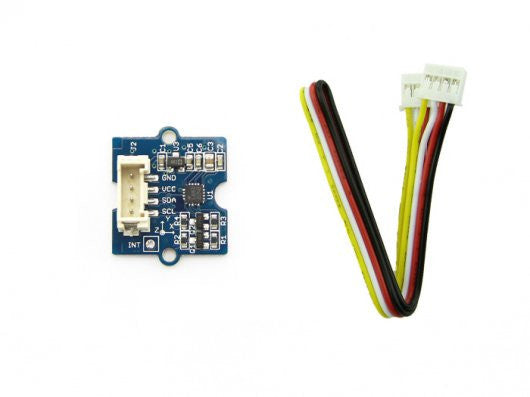

3-Axis Compass module, a member of grove family uses I²C based Honeywell HMC5883L digital compass. This ASIC is equipped with high resolution HMC118X magneto-resistive sensors and a 12-bit ADC. It provides compass heading accuracy up to 1° to 2°. Signal conditioning like amplification, automatic degaussing strap drivers and offset cancellation are inbuilt. This grove module also includes a MIC5205-3.3 for power supply requirement. Hence user can connect any 3.3V to 6V DC power supply.
Features
  • Grove compatible interface
  • 3-Axis Magneto-resistive type sensors
  • I²C serial interface
  • 2.0cm x 2.0cm Grove module
  • 1° to 2° Degree heading accuracy
  • Up to 116 Hz Maximum output rate
  • Built-In self test
Applications Ideas
  • Low cost compassing
  • Magnetometry
  • Pedestrian navigation
  • Hobby auto navigation
  • Compassing support for mobile devices and portable computers (i.e connected via Blue-tooth or UART)
For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.
Documents

Please visit  wiki page for more info about this product.
