0.8 Inch 16 Segment LED Yellow Green - Common Anode

$6.49 AUD Inc. GST


SKU SS104990120



This is a 16 segment common cathode LED and is yellow green. The advantage of 16 segment is that you can not only display 1234567890, but also ABCDEFGHIJKLM.
It is compatible with bread board and can work with Arduino by adding some current limiting resistors. So, it Suitable for people who is newbie of electronic.
Note: It just a segment LED without control chip.
Corresponding Interface:
  • High Light
  • low current
  • low-voltage
  • low energy
  • Longevity
  • IC-compatible

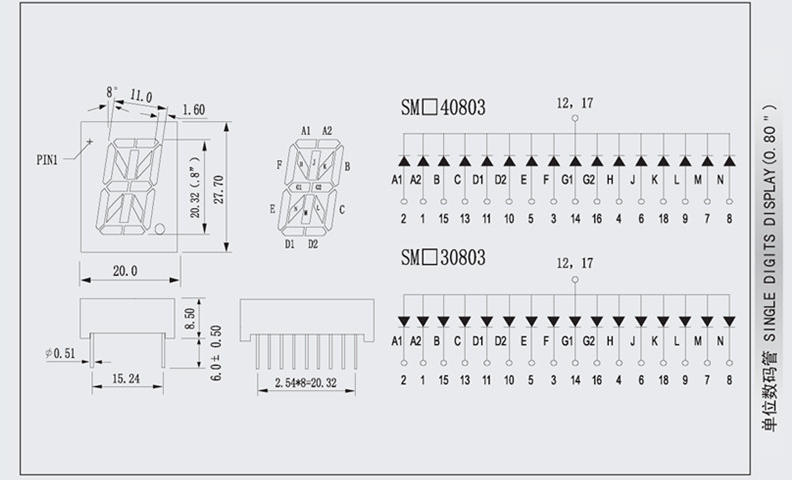

Specification:
  • 0.80 inch
  • common port: 12,17
  • size: 20.0 x 27.7 x 8.5mm
  • Colors: Yellow Green
  • surface colors: Black
  • Working temperature: -20~60°C
1. Electro-Optical Characteristics(Ta=25℃)

PARAMETER

SYMBOL

DEVICES(ULTRA-BRIGHT RED)

UNIT

TEST

CONDIONS

TYP

MAX

Peak Emission Wavelengrth

λp

565



nm

IF=10mA

Inetnsity

IV

5.5



mcd

IF=10mA

Forward Voltage

VF

2.2



V

IF=10mA

Reverse Current

IR



50

μA

VR=5V

Segment To Segment(Dot ToDot)

Luminonous Intensity Ratio

IV-M

1.5:1





IF=20

 2. Absolute Maximun Ratings(Ta=25℃)

PARAMETER

SYMBOL

DEVICES(YELLOW GREEN )

UNIT

Power Dissipation Per Dice

pad

70

mw

Derating Linear From 25℃ Per Dice



0.27

mA/℃

Continuous Forward Current Per Dice

laf

25

mA

Peak Forward Ourrent Per Dice(Duty Cycle 1/10,10KHz)

lpf

90

mA

Reverse Voltage Per Dice

Vr

5

v

Operating Temperature

Topr

-20℃~+75℃

Storage Temperature

Tstg

-20℃~+85℃

Solder Temperature



1.6Inch Below Seating Place for 5 seconds at230℃



For any technical support or suggestion, please kindly go to the forum.
