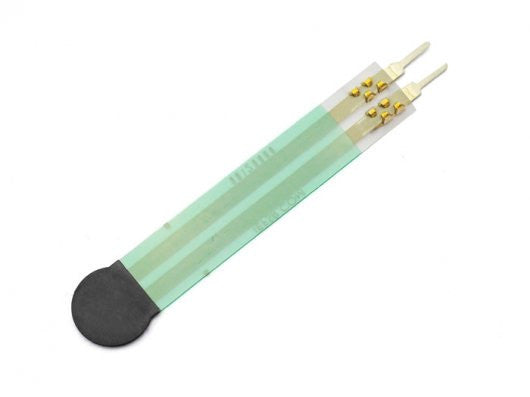

0.2 Inch Thin Film Resistor type Pressure Sensor - FSR400 A301

$34.64 AUD Inc. GST


SKU SS114990107



Features:

  • better linearity
  • measurement of higher loads
  • stable output with respect to load area
Physical Properties:
  • Thickness: 0.008 in. (.203 mm)
  • Width: 0.55 in. (14 mm)
  • Sensing Area:  0.375 in. diameter (9.53 mm)
  • Connector: 3-pin male square pin
  • Length:
    • 7.75 in. (197 mm)
    • 6 in. (152 mm)
    • 4 in. (102 mm)
    • 2 in. (51mm)
Typical Performance:
  • Linearity Error: <±3%
  • Repeatability: <±2.5% of full scale
  • Hysteresis:  <4.5% of full scale
  • Drift: <5% per logarithmic time scale
  • Response Time: <5 microseconds
  • Operating Temperatures:  -40°F - 140°F(-40°C - 60°C)
  • Force Ranges:  0-1 lb (4.4 N), 0-25 lb (110 N),0-100 lb (440 N)
  • Temperature Sensitivity: Output variance up to 0.2% per degree F
