USB DIY Connector - MicroB Female Plug

Price:
Sale price A$3.67   Inc. GST
SKU:
ADA1829
7 units Ships in 24 hours
50 units Ships in 7 to 10 days

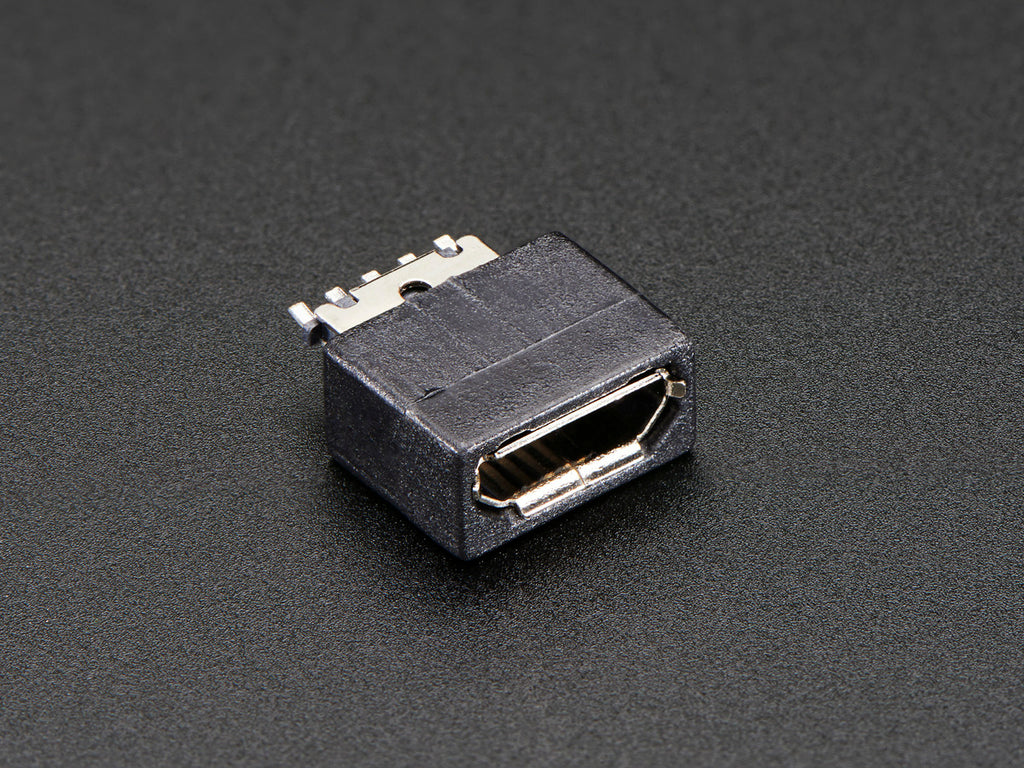

As an addition to our other USB DIY shells, we have a 'micro B female' in a panel-mount-like connector. This isn't true panel mount but you could glue the black plastic shell into your project and then press-fit in the micro B connector. The 5-pins are much easier to solder than a surface mount connector

We have other DIY "USB shells" are available in USB A plug, micro B, mini B and USB A socket.

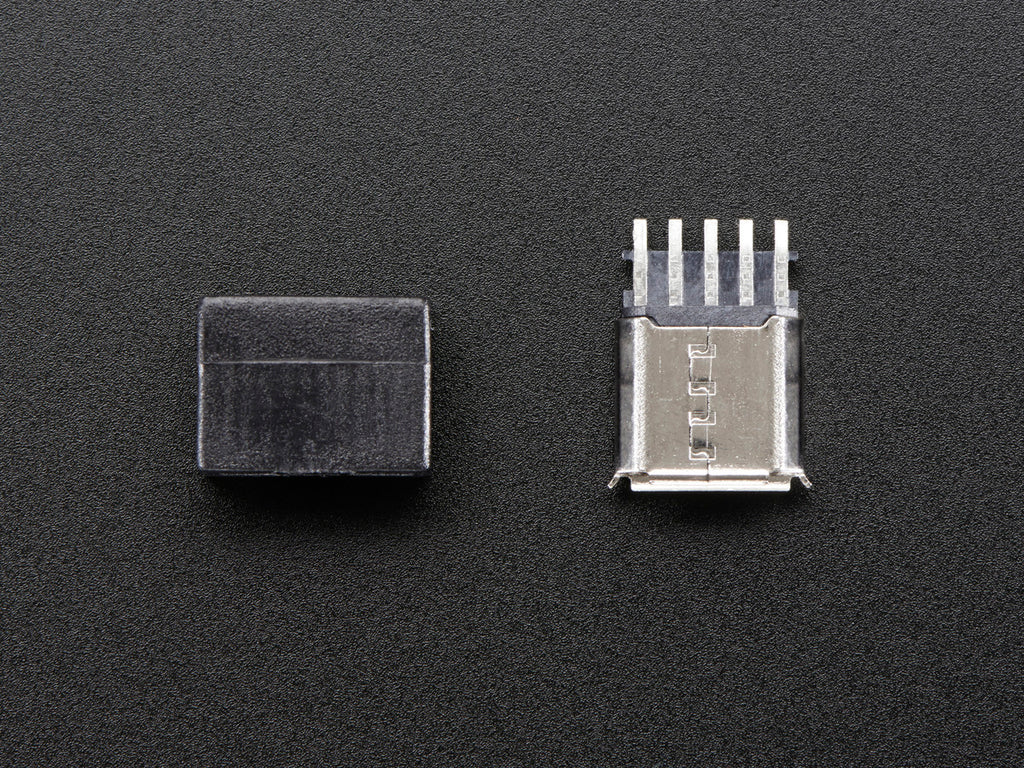

Each shell comes with a plastic shell and a proper connector with easy-to-solder tabs.



Technical Details

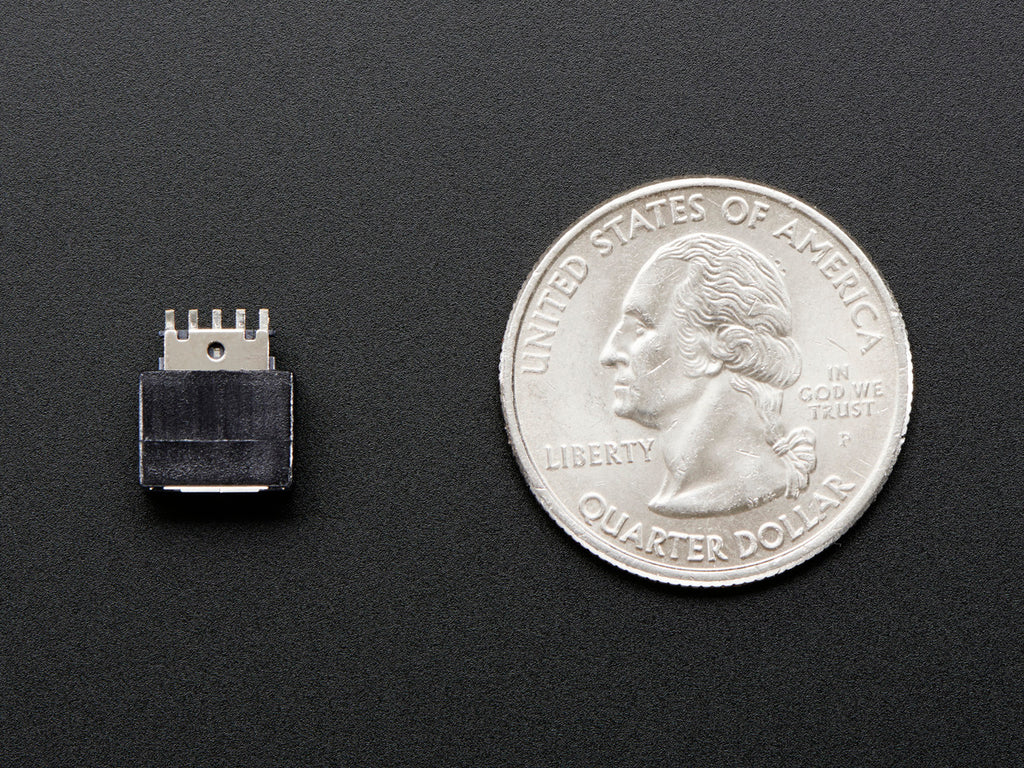

  • Assembled Dimensions: 10mm x 9mm x 4.5mm / 0.4" x 0.35" x 0.2"
  • Assembled Weight: 0.6g
  • MicroB-F Connector Dimensions: 10mm x 7mm x 2mm / 0.4" x 0.3" x 0.1"
  • MicroB-F Connector Weight: 0.4g
    RoHS 2 2011 65 EU Compliant
    RoHS 2 2015 863 EU Compliant
