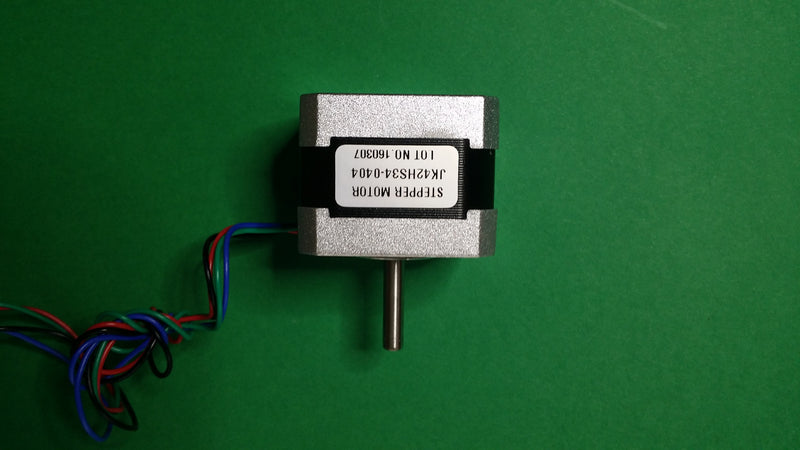

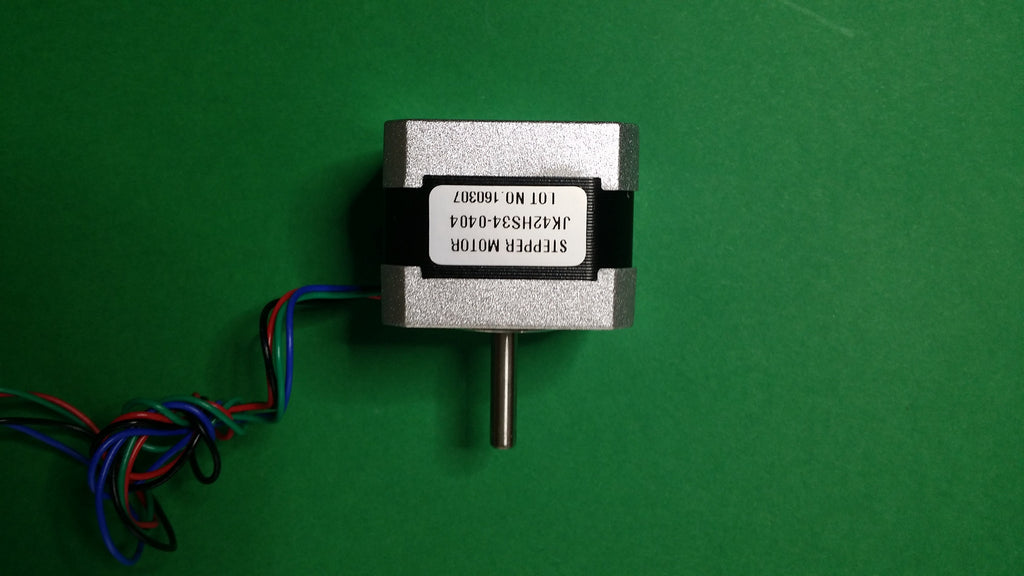

JK42HS34-0404
Specifications:
Step angle: 1.8 °
Rise in temperature: 80 ℃ max
Ambient temperature: -20 ℃ ~ + 50 ℃
Insulation resistance: 100 M min, 500VDC.
Dielectric strength: 500VAC for 1 minute
Shaft radial play: 0.02Max. (450g load)
Shaft Axial game: 0.08Max. (450g load)
Max. Radial force: 28N (20 mm from flange)
Max. Axial force: 10N
Electrical Specifications:
| Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Motor Weight |
| ( °) | (L)mm | A | Ω | mH | Kg.cm | No. | g.cm | g.cm | Kg | |
| JK42HS34-0404 | 1.8 | 34 | 0.4 | 30 | 35 | 2.6 | 4 | 120 | 34 | 0.22 |
