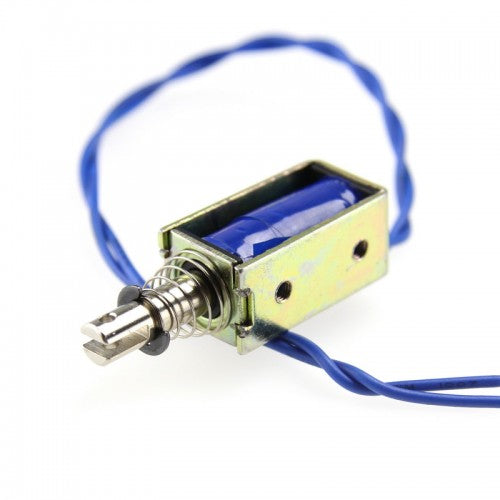

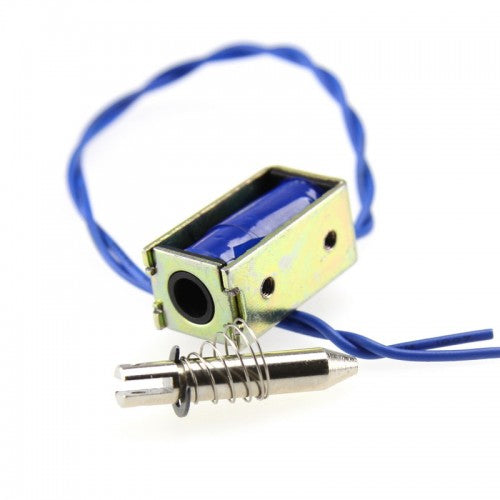

Open Frame Solenoids are a basic, opened-coil type of linear motion solenoids. Due to their simpledesign structure, they are less costly, and are offered in a wide variety of sizes and types to bestmeet your application requirements.
Technical datas:
Voltage:12VDC
Resistance:6.6 ohms
Stroke:6mm
Force:50g
ED:25%
Application range:
1.Game
Tiger eating angles Coin chooser
2.Salar machine
Saler machine coil changer ticket saler
3.Office equipment
listing machine computer fax duty printer
Photo printer type writer caser drawing machine drinking
4.Transport devices
auto door lock safe belt lock car electromagnetic valve
5.Domestic appliance
tadioelectronic organ auto weave machine choir
6.Other
package machine mechtval hand farming device pressure equipment fir prevention,burglary alarm save water valve
Characteristics:
Easy fix and continuous loading
Stable temperature rising can length usage lift and sure good character
E-ring and rubber pad make valve no loice
No rub length usage lift
Easy and stable construre
Normal type
*Operation condition
Operation temperature-5 to 40,the valve will not solidfication
Operation humiditynot solidify within the realtive humidity of 45% to 85%
Store temperaturenot solidify at the temperature of -40 to 75
Storage humiditynot solidify during the relative humidity of 0% to 95%
*Character note
Temperature rising under 65(class a) lift: more than 1 million under loading
*Test temperature
Environment temperature23±2
Realative humidity50±10%
Air pressure1013MPa
Insulation resistanceneed 100MΩ insulating resistance when 500VDC insulator testing
Insulation strengththe strength should be 600VAC/1 min
Size Charts(mm):
