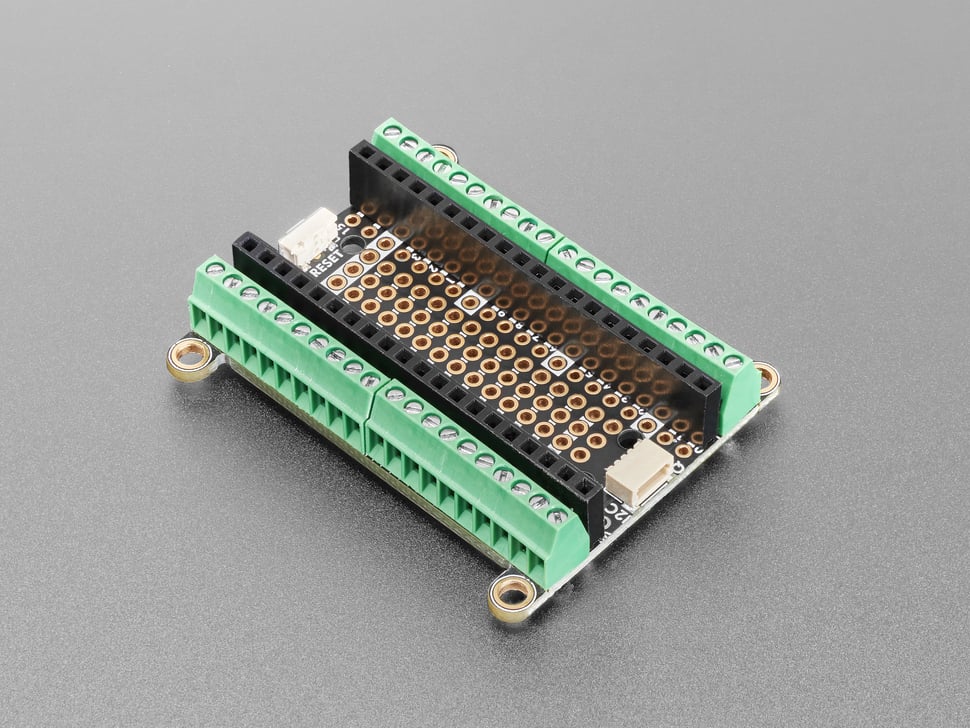

Hear the distinct ring of the PiCowbell, alerting you that the highly sought-after Adafruit Terminal PiCowbell for Pico is now available. With pre-soldered sockets and screw terminal blocks for every pin, this hardware is the perfect addition to your Raspberry Pi Pico or Pico W project for efficient prototyping.
Designed for easy and efficient connection of solid or stranded core wires to Pico's GPIO pads. The Pico Terminal PiCowbell comes with four 10-pin 2.54" pitch screw terminal blocks that accommodate 18~26 AWG wires. Each pin is connected 1-to-1, allowing for ample ground connections.
Please Note! This PiCowbell comes with pre-soldered socket headers. That makes it plug-and-play but means you cannot substitute short headers or stacking headers.
The Terminal PiCowbell provides you with:
- Screw Terminal blocks for each matching pad on the Pico or Pico W: 40 total pins, 40 total blocks
- Single-row socket headers to plug in your Pico or PicoW board.
- Reset button that sticks out the end
- JST SH connector for I2C / Stemma QT / Qwiic connection. Or can use it for plain GPIO wiring if you don't have any I2C devices to attach. Provides 3V, GND, IO4 (SDA), and IO5 (SCL)
There is an extra set of 4 breakout holes next to the JST SH if you want more I2C connections or want to re-assign the I2C port. - 12 rows of 4-hole connected strips in the center area. You can cut the traces between the holes, but they're intended to be treated like a mini-mini breadboard
- Every pad on the Pico has a duplicate hole pad next to it for solder-jumpering
- The ground pads have white silkscreen rectangles to easily identify, plus one long ground strip near the reset button
- One long strip of connected holes for 3.3V power
- Gold-plated pads for easy soldering
We do not have I2C pullups on the board, but your Qwiic/QT breakout board or accessory likely already has them onboard. If using the Philhower Arduino core, the Wire peripheral is already set up to use IO4 and IO5. If using CircuitPython or MicroPython, you'll need to let the code know to look at 4+5 for SDA+SCL pins.
